Product Specifications
| Prod Model: |
JRP-2RA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO9001;SGS |
| Printer: |
Thermal |
| Touch Screen: |
Without Touch Screen |
Product Description

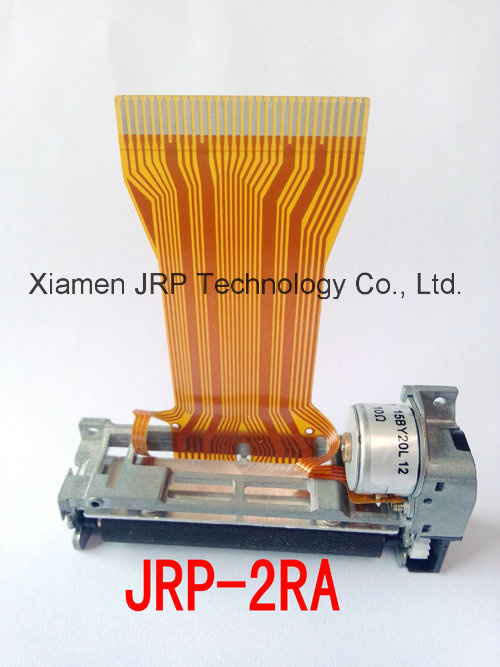

JRP-2RA Characters:
Easier paper loading
Small in size & light in weight
Whole set metal base, metal gear shaft, stable, reliable, high-life, excellent heat dissipation
High speed: Can reach to 80mm/s( motor drive voltage is 8.5VDC)
Operating power range(3.5-8.5VDC)
Resolution Ration(8dots/mm)
Abrasion resistance: Paper traveling distance long than 50km
Low noise: Drive by non-magnetic pumping step motor, Made up of high abrasion & excellent weather resistance engineering plastics gear
Applicability: JRP-2RA is compatible with Fujitsu printer machanism FTP-628MCL101, is suitable for mini-thermal receipt printer, thermal cash register, etc.
Model: JRP-2RA
Printing method: Thermal DOT line printing
Printing width: 48mm
Resolution of level: 8dots/mm
Printing dots number of per line: 384dots
Resolution of paper traveling: 0.0625mm per step
DOT pitch: 0.125mm
DOT size: 0.125mm× 0.12mm
Printing speed(Max): 80mm/s(Motor voltage at DC8.5V)
Paper width: 58mm
Paper thickness: 60-100um
Printing life: ≥ 50km
Thermal head temperature detection: Via thermistor
Paper detection: Via a photo interrupter
Platen unit's fixation: May be off the basic mechanism to achieve installing paper easy
Printer head working power voltage: VH: 3.15-8.5DC
Printer head working logic voltage: VDD: 2.7-5.25VDC
Motor voltage: 3.5-8.5VDC
Path of paper traveling: Perpendicular bend
Paper cutting: Manual
Operating temperature: 0~50degrees Celsius
Operating humidity: 20%-85%RH
Storage temperature: -20-60degrees Celsius
Storage humidity: 5%-95%RH
Operating machine noise: 60dB(Max)
Weight: 40.7g
Periphery dimension: L=70mm, W=33mm, H=15.3mm, L(FPC)=70mm
Compatibility: FUJITSU's FTP-628MCL101 printing mechanism
Scope: Mini/pocket Cash register/POS printer for the lower power voltage
Xiamen JRP Electronic and Technology Co., Ltd is located in the beautiful scenery, pleasant climate seaside garden city-Xiamen. Our company is established in 2010, and now we have comprised of experienced administrative staffs and skilled workers.
Research and Development(R&D):
We have experienced engineers and staffs, we have extensive production experience and advanced production technology to adapt to technological development needs, providing one-stop services such as OEM and ODM.
Product Lists:
We have produce a series of 2-inch thermal printer head and 3-inch thermal printer head, such as 2RA, 2RA1, 2RC, 2RC1, 2RG, 2RE, 2RH, 3RB and so on. And we are always concentrated on developing other new thermal printer mechanisms. Our products are widely used in thermal receipt printers, thermal label printer, with print-board recorder, cash register scales, barcode label scales, queuing systems, ticketing systems, supermarket systems, logistics systems and other equipment. Our goal market is global.
Superior Service:
Our company always implements the "scientific management, excellent quality, customer first" business philosophy. Due to the excellent quality of our products, durability and efficient service, our company has won the same recognition and praise of the majority of customers.
Quality Guarantee:
We have QC department to make insepct every step of printer head production, including materials inspecting, accessories fixing, packing and so on. We always make our best to satisfy our customers requirements.
Certificate:
We had already passed the tests and got Certificates of SGS, ISO9001.
Business Partner:
We are concentrated on cooperating with the global customers!
Sample lead time:
Normally, it takes one days to make new samples.
Production lead time:
Normally, it takes 15 days to finish thermal printer head order.
But it takes about 45 days to finish umbrellas if we have Chinese New Year Holiday.
Terms of payment:
We always accept T/T Paypal and Western Union payment terms.
Welcome to inquire from our company if you need any thermal printer head and other products. We are always positive and ready to offer excellent service.
