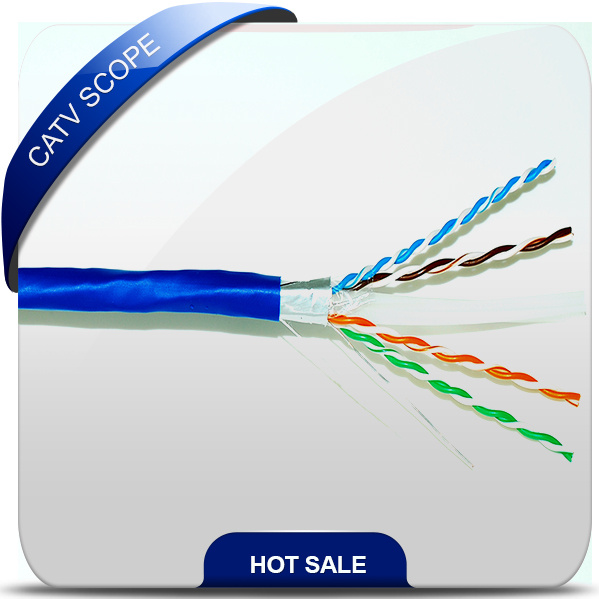

Product Specifications
| Prod Model: |
FTP CAT6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LAN Netork Cable: |
Communication Cable |
| CAT6: |
UTP FTP |
| Twisted Wire: |
Support |
| Coductor: |
CCS,Cu,CCA Option |
| PE Insulation: |
Support |
| PVC Jacket: |
Support |
| PE Outer Jacket: |
Support |
| Rip Cord: |
Support |
| Corss: |
Support |
| Total Number Of Insulated Conductors: |
8.Twisted in 4 Pairs |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PE |
| Type: |
Cat 6 |
| Certification: |
ISO |
Product Description
Description
4 pair cores, 23 AWG conductor, PE insulation, PVC jacket, PE outer jacket, 305m package. conductor diameter: 0.574±0.004mm Insulation material: PE PVC jacket thickness: 0.5mm PE outer jacket thickness: 0.5~0.6mm Jacket diameter: 6.1mm
| U/UTP Shielded CAT 6A Twisted Pair Installation Cable |
|
|
| Application |
|
|
|
|
|
|
|
|
| Meets or exceeds requirements of ANSI/TIA-568-C.2 Category6 and ISO 118012 and Edition Class EA channel standars |
| Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5 Category 6A component standards. |
| Meets requirements of IEEE 802.3af and IEEE 802.3 at for PoE applications. |
| Third party tested to comply with ANSI/TIA/EIA-568-C.2 |
| Descending length cable markings enable easy identification of remaining cable which reduces installation time |
| Color Availability:Additional cable colors available |
| Electrical Characteristics |
|
|
|
|
|
|
|
|
| Impedance | 1-250MHz 100±15(ohms) |
| Rated Temp | 75ºC |
| DC resistance Unbalance(%) | max 2.5 |
| DC resistance 20ºC | 8.4(Ohms/100m) |
| Pair-to-Gruond Capacitance Unbalance: | 330(PF/100m) |
| Installation Resistance: | >5000Mohm Km |
| Dielectric strength | DC2500V 2S |
| Conductor |
|
|
|
|
|
|
|
|
| Conductor | Solid Bare Copper 23AWG |
| Insulation | HDPE |
| Total Number of insulated conductors | 8.twisted in 4 pairs |
| Color Code | Blue /Bluex white,orange/orange x white,Green/green x white, brown/brown x white |
| Individual pair shield | None |
| Overall shield | None |
| Drain wire | None |
| Nominal Transmission Characteristics |
|
|
|
|
|
|
| Frequency | RL(min) | IL(max) | Propagation Delay(max) | Delay Skew(max) | NEXT(min) | PSNEXT(min) | ELNEXT(min) | PSELNEXT(min) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20 | 2.1 | 570 | 45 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23 | 3.8 | 552 | 45 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25 | 5.9 | 547 | 45 | 59.3 | 57.3 | 47.8 | 44.7 |
| 16 | 25 | 7.5 | 545 | 45 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25 | 8.4 | 543 | 45 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.5 | 542 | 45 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15 | 541 | 45 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.1 | 540 | 45 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18 | 27.6 | 539 | 45 | 39.8 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 34.3 | 538 | 45 | 37.1 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 40.1 | 537 | 45 | 35.3 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 536 | 45 | 33.8 | 31.8 | 13.8 | 10.8 |
