Product Specifications
| Prod Model: |
FM-120L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow: |
120L/Min |
| Payment Term: |
100 % T/T in Advance; Western Union |
| Delivery Time: |
in 3 Days After Receipt of Payment |
| Application: |
Gasoline, Diesel, Kerosene, Ect |
| Type: |
Variable Area Flow Meter |
| Accuracy: |
≤±0.1% |
| Measuring Media: |
Liquid |
| Principle: |
Variable Area Type |
| Measuring Principle: |
Mechanics |
| Size: |
DN10-50 |
Product Description
1. OGM Gear Flowmeter.
OGM-25/40/50 aluminum oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability, applying in the petroleum, chemical, food industry, etc.
2. Turbine Flowmeter
High accuracy, Everlasting, Small volume turbine flowmeter
Module design can be used with output module, sensor and long-distance transfers
Has the same function
It is easy to change the spare parts inside, and easy to maintain
It is easy to assembling as its cabinet and compact design
Lithium battery, can supply 9000 hours power.
3. LC Gear Flowmeter Meter
LC gear flowmeter are widely used in flow measurement in the industrial field such as petroleum exploitation, oil refinery, chemical and oil storage.

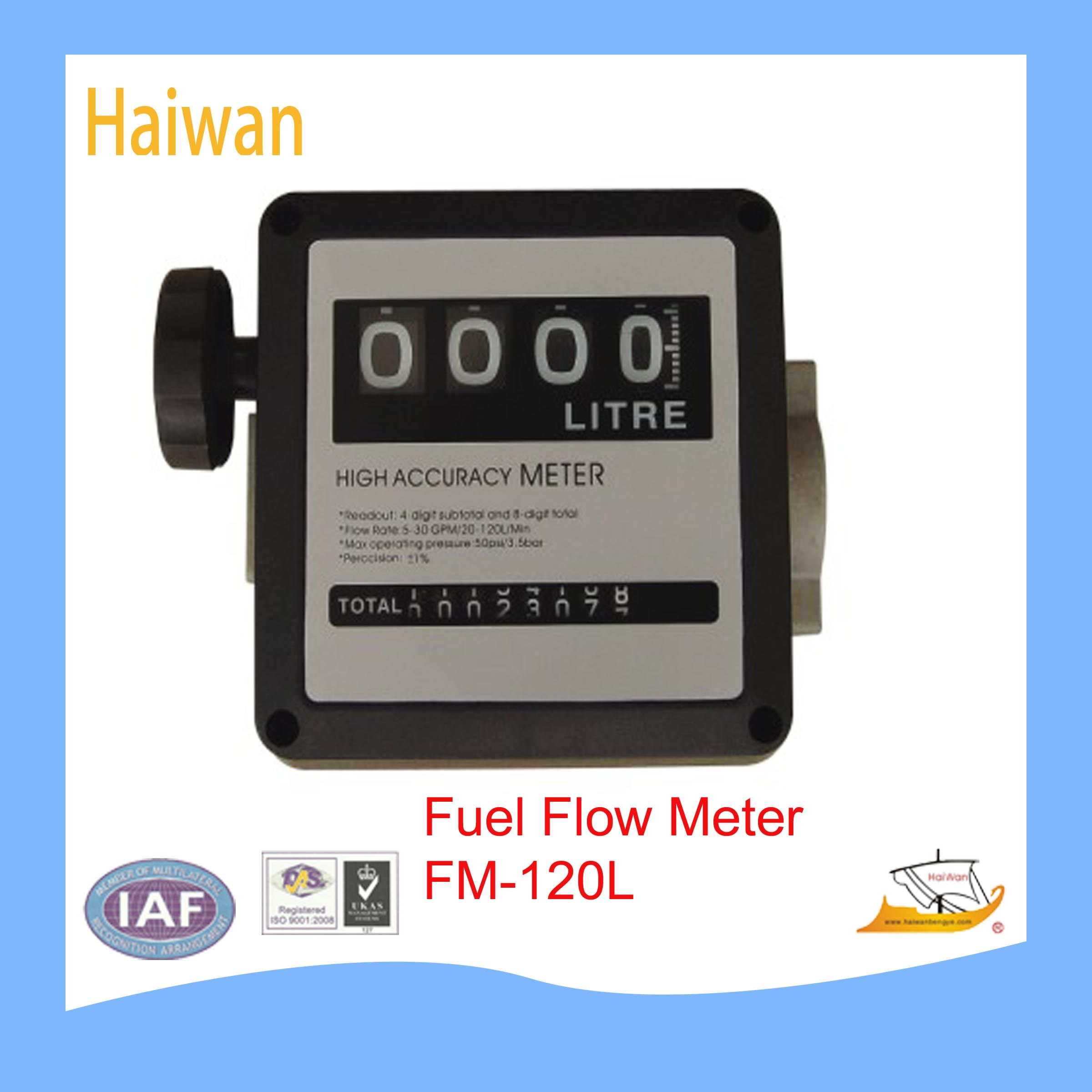

4. FM-120L Flowmeter
FM-120L Flow Meter is to measure the exact quantity of the dispensed fuel and designed for noncommercial use only. These flowmeters are reliable, inexpensive, easy to install and simple to calibrate on the workplace.
Aluminium metering chamber, 1" thread connection.
Mechanical readout device with rotating wheels. Subtotals can beset to zero, total readouts can not.
5. Positive Displacement Flow Meter
Excellent stepless adjusting machine;
High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow;
Low maintenance, no metal-to-metal contact in measuring chamber, Long life service;
Low pressure loss, a true gravity flow meter;
Accuracy regardless of pressure fluctuations, temperature variation, viscosity;
Choice of aluminum, cast iron, brass and stainless steel materials of construction.
***Please use your verified email address when sending inquiry so that we can communitate successfully. Thanks! ***
|
OGM Oval Gear Flow Meter |
|
Model |
OGM-A-25 |
OGM-A-40 |
OGM-A-50 |
|
Size |
1" |
1 1/2" |
2" |
|
Min.Flow Rate |
20L/min |
25L/min |
30L/min |
|
Max.Flow Rate |
120L/min |
250L/min |
300L/min |
|
Accueacy |
±0.5% |
±0.5% |
±0.5% |
|
Repeatability |
≤0.03% |
≤0.03% |
≤0.03% |
|
Max.Viscosity |
1000CPS |
1000CPS |
1000CPS |
|
Max.Operating Pressure |
3.4MPa |
1.8MPa |
1.8MPa |
|
|
Turbine Flow Meter |
|
Connecting Style |
NPT (female thread) ANSI(flange) |
|
Material |
Aluminum |
Flow range |
3/4" 2-20GPM (7.6-75.7LPM) |
|
1" 5-50GPM(18.9-190LPM) |
|
1-1/2" 10-100GPM(38.0-380LPM) |
Accuracy |
3/4" ±1.0%
1" ±1.0%
1-1/2" ±0.5% |
|
Repetition |
±0.1% |
|
Pressure class |
300PSI /21bar |
|
|
LC Gear Flow Meter |
|
Mode |
LC-15 |
LC-20 |
LC-25 |
LC-40 |
LC-50 |
LC-80 |
LC-100 |
|
DN (mm) |
15 |
20 |
25 |
40 |
50 |
80 |
100 |
|
Min. Flow Rate m 3 /h |
0.3 |
0.3 |
0.6 |
1.6 |
5 |
6 |
10 |
|
Max. Flow Rate m 3 /h |
1.6 |
3 |
6 |
16 |
25 |
50 |
80 |
|
Accuracy % |
+-0.3~+-0.5 |
|
Working Temperature o C |
-10~80 |
|
Pressure MPa |
1.0-6.3 |
|
|
|
Liquid Viscosity MPa.s |
2~75 |
|
|
|
Min. Scale Value L |
0.1 |
1 |
10 |
|
Register Amount m 3 |
999.99 |
9999.9 |
99999 |
|
|
FM-120L Flow Meter |
|
Inlet&Outlet |
1" & 1 1/2" |
|
Max.Pressure |
3 Bar. |
|
Flow Rate |
20-120L/min |
|
Measurement |
Litre |
|
Precision |
±1% |
|
|
M Series Positive Displacement Flow Meter |
|
Model |
M-40-1 |
M-50-1 |
M-80-1 |
M-100-1 |
M-150-1 |
|
Size |
40mm/ 1 .5" |
50mm/ 2 " |
80mm/ 3 " |
100mm/ 4 " |
150mm/ 6 " |
|
Flow Range |
25-250L/min |
50-500L/min |
100-1000L/min |
130-1300L/min |
300-3000L/min |
|
Max. Pressure |
10Bar/150PSI |
|
Accuracy |
±0.2% |
|
Repeatability |
≤0.05% |
Standard
Measurement |
Unit Liter / US Gallon / Imperial Gallon |
|
Meter Body |
Aluminum, Cast Iron, Steel, Stainless Steel available |
|
Viscosity |
30SSU~1,500,000SSU |
