Product Specifications
| Prod Model: |
QZYW115EF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Cutting Width: |
115 |
| Classification: |
Single-blade Cutter |
| Driven Type: |
Hydraulic |
| Blade Material: |
Stainless Steel |
| Computerized: |
Computerized |
Product Description

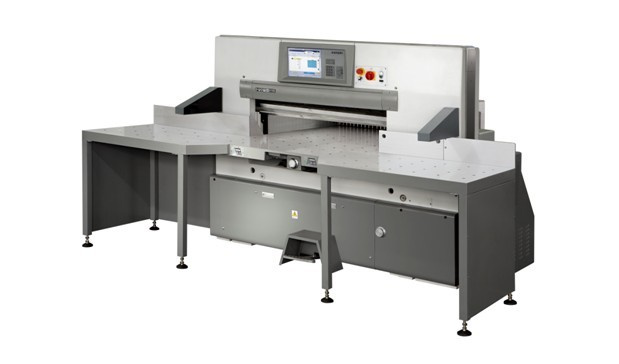

Full Automatic Computerized Paper Cutter (QZYW115EF)Functions1. Japanese AC digit servo control system;
2. 15 inches colorful touching screen ;
3. Resolution rate:0,01mm;
4. Self-diagnostic function of troubles;
5. Display the operating pattern;
6. 100 program units;
7. More than 10000 different cutting position;
8. Dynamic display of cutting and running situation;
9. Max paper-pushing speed of 5-18m/min;
Configuration1. Adopt strongrt computer operating system;
2. The storage time of memory can be up to over 300000 hours;
3. Italian hydraulic components, electric components from France, Germany, Japan and Korea;
4. Ball lead from Taiwan with linear guide-rail and safety device for overloading cutting;
5. Safety lockers of press bar;
6. PLC controller can monitor all the electrical and ,ecjamical section;
7. Adopt imported bearing of low maintenance.
| Model | QZYW-EF | L | QZYW-E/C | QZYK-C | QZYK-S | SG |
| Imported ball lead screw | YES | YES | YES | YES | YES | YES |
| Imported double guide-rail slotless working table | YES | YES | YES | YES | YES | YES |
| Chrome-plated main and assistance working table with air ball | YES | YES | YES | YES | YES | YES |
| IR photoelectric protection and hands operating protection | YES | YES | YES | YES | YES | YES |
| Ejecting device for cutting stick | YES | YES | YES | YES | YES | YES |
| Inside electronic knife locker | YES | YES | YES | CAN | CAN | NO |
| Safe and convenient knife replacement system | YES | YES | YES | YES | YES | YES |
| Overloading protection device for cutting | YES | YES | YES | YES | YES | NO |
| Flat worm speed reducer transmission | YES | YES | YES | YES | YES | NO |
| Optical knife alignment | YES | YES | YES | YES | YES | YES |
| PLC conrtol system | YES | YES | YES | YES | NO | NO |
| Imported hydraulic system | YES | YES | YES | YES | YES | NO |
| Imported electric components | YES | YES | YES | YES | YES | YES |
| Enlarged side working table | YES | CAN | CAN | CAN | CAN | NO |
| Soft pressure | YES | YES | YES | CAN | CAN | NO |
| Optimize function | YES | YES | CAN | NO | NO | NO |
|
|
|
|
|
|
|
| YES: Standard configuration |
|
|
|
|
|
|
| CAN: Optional configuration |
|
|
|
|
|
|
| NO: Without this configuration |
|
|
|
|
|
|
