Product Specifications
Prod Model: |
ZK-660A |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Process: |
Paper Machine |
Usage: |
Packing Paper Machine |
Computerized: |
Yes |
Automatic Grade: |
Automatic |
Driven Type: |
Pneumatic |
Material Type: |
Grain |
Applicable Industry: |
Machinery & Hardware |
Application: |
Cosmetics |
Packaging Type: |
Cartons |
Packaging Material: |
Paper,Leather,Cardboard |
Product Description
Zhongke Packaging Machinery Co., Ltd. Professional manufacturer of full automatic rigid paper box making machine, paper box making lines, rigid paper box making lines, paper box making machinery, rigid paper box making machinery, paper box forming machinery, rigid paper box forming machinery, paper box equipment, rigid paper box equipment, pper box, rigid paper box, paper box machinery and so on.

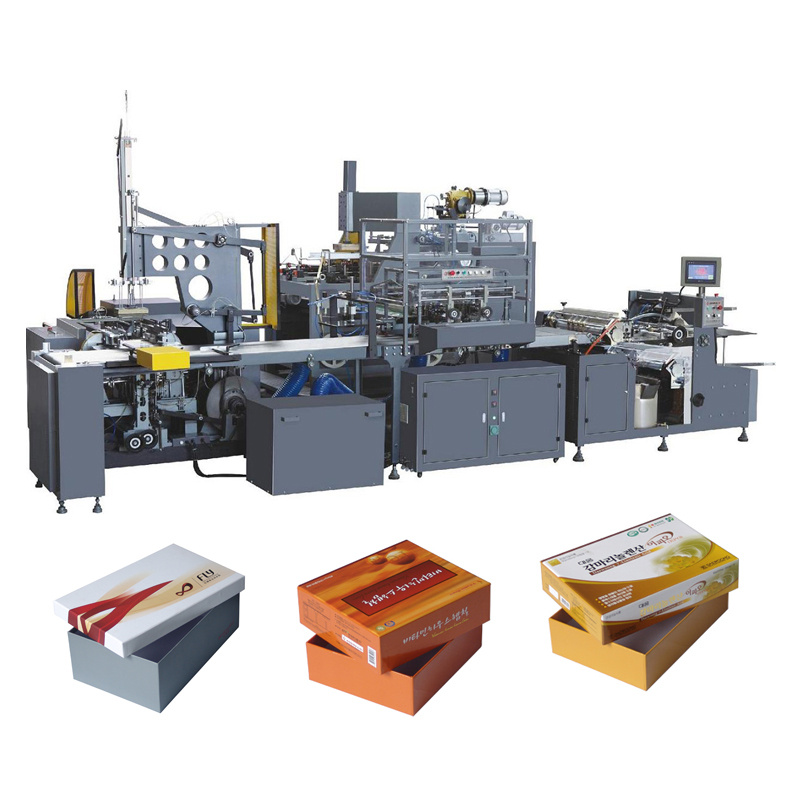

ZK-660A is the most advanced equipment of making the rigid set-up box (such as shoe-box, shirt box, jewellery box, gift box, food box, hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times. (Please visit our website or call us for the detail information)
Technical Specification:
1. Size of the finished box: (125-400mm) × (85-300mm) × (20-125mm)
The size of the box is adjustable as long as it is in the above dimension ranges.
2. Speed up to: 20-25pcs/min
3. Paper wrap thickness: 100-157 GSM (smooth)
4. Cardboard blank thickness: 0.8-3mm (The same thickness and smooth)
5. Electrical power: 380V, 50Hz, 20KW
6. Dimension: 6800mm(length)× 3500mm(width)× 2600mm(height)
7. Weight: 8000kg
8. Position error: About ± 0.5mm
Paper wrap size |
Amin |
150mm |
|
Paper wrap grammage |
Min |
100g/ |
Amax |
580mm |
Max |
160g/ |
Bmin |
180mm |
Cardboard blank thickness |
Min |
0.8mm |
Bmax |
660mm |
Max |
3mm |
Box size |
Lmin |
125mm |
Speed |
1500(Cycle/h) |
Lmax |
400mm |
Paper pile height |
260mm |
Wmin |
85mm |
Cardboard pile height |
1000mm |
Wmax |
300mm |
Electrical power |
20kw |
Hmin |
20mm |
Glue tank capacity |
45(Litre) |
Hmax |
125mm |
Air supply |
12(Litre/min) |
Folding Edge Range :R |
Rmin |
12mm |
Net weight |
8000kg |
Rmax |
25mm |
Machine overall dimension |
L6.8XW3.5XH2.6m |
Zhongke Packaging Machinery Co., Ltd. is a professional factory to R & D "Full Automatic Rigid Box Making Machinery" together with well-known university in domestic, which is the first factory based on advanced technology of foreigners in China. The product has passed province-level new product trial project identification; The technology is in the leading domestic level, which filled the domestic gap. It also obtains National important new product, wenzhou technology plan program, wenzhou 3rd prize for progress f science and technology, Rui'an important technology program, Rui'an 1st prize for progress of science and technology, Rui'an patent model enterprises, and the credible enterprise of Rui'an, etc. The superior performance and excellent quality of the product not only optimizes and upgrades the traditional industries, but also promotes the farther development of China Packaging industry.
Since established, Zhongkenese Company insists on management theory that regards the foreign fine works as the model, pick and catch up, the sincerely service as the foundation, with first quality and first service; Also comply with the management policy that scientific management, high quality and efficiency, customer first and good faith compliance; The leading spirits of our company are exploiting with the courage, enterprising constantly, working stable and staidness, and pursuing the high efficiency; We also build up the target that customer's requirements are our responsibilities, customer's benefit is our purpose.
Zhongkenese has the powerful technical teams and carries out strictly ISO9001: 2000 international standard quality administration system as well as the international CE attestation. Zhongkenese pays attention to the control of the producing process, and offers the excellent products and services. At the same time, we have extended completely our sale and service network system in the global markets, the after-service is famous in timely, accurate and high efficient. Zhongkenese gains the good reputation and great prestige because of the high quality products and high efficiency after-sales service. Zhongke product has reached the first domestic market share, and has formed "China First Brand" at present. Our products are sold about 20 provinces in domestic, even are popular with the Europe, South Africa and Southeast Asia regions.
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
