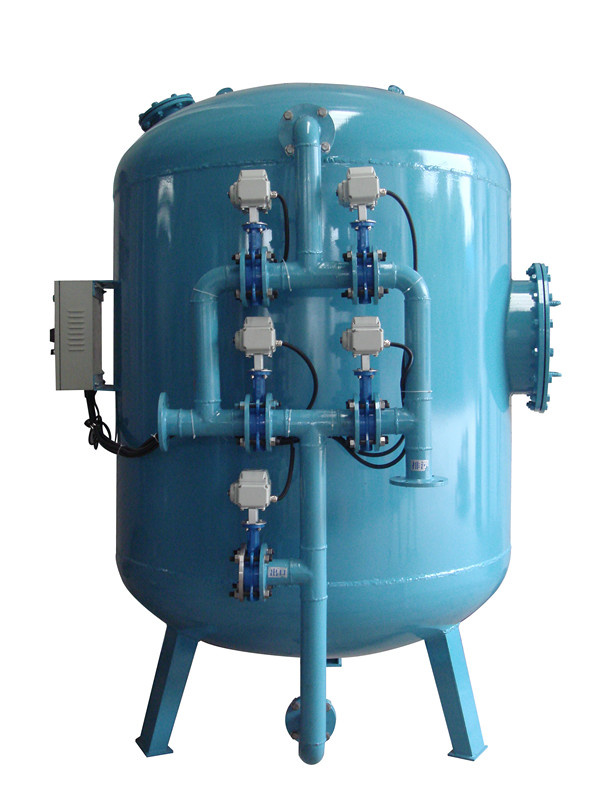

Mechanical sand and active carbon filter
Mechanical filter:
Mechanical filter, made of rubber lined steel or stainless steel material, plays an important part in the pretreatment preparation of pure water and water purification system. It can group into natural quartz sand filters, multi-media filters, activated carbon filter, manganese sand filter etc according to different filter media .
Used in the treatment process, mainly for turbidity water treatment, reverse osmosis, and pretreatment preparation of ion exchange softening desalination system
Also used for sediment removal of surface water and underground water. Inlet turbidity less than 20 degrees, the outlet turbidity up to 3 degrees below.
It can be widely used in electronic power, petrochemical, metallurgy electroplating, paper textiles, pharmaceuticals dialysis, food and beverages, drinking water, factories and enterprises water, swimming pool. It also can meet the needs of liquid filtration in various industries
Advantages:
Multi-media carbon/sand filter tank in water treatment
A) High filtration efficiency.
B) Low resistance, high capacity, high sewage interception capability, long service life.
C) High cleanness of filter and no pollution of filtering media.
D) Anti acid-base.
E) High strength, high temperature resistant, no deformation.
F) Low purchasing cost and operation cost, easy to clean and replace filter cartridge.
G) Easy operating & maintenance
Working principle:
The filter is separated by filtration principle to the successful development of separation equipment, oil filter - special walnut shell filter media, walnut shell large specific surface area, strong adsorption, the characteristics of the large amount of sewage interception, removal of oil and suspended solids. The device has both automatic and manual control mode. Filter, the water flow from top to bottom, the water distributor, the filter layer, catchment, the filtering is done. Stirrer flip filter backwash water bottom-up, the filter thoroughly clean renewable.
Technical parameters:
Filter diameter | Height | inlet-outlet | filtration area | capacity |
mm | mm | mm | m² | m³/hour |
YL-SF-500 | 500 | 816 | 40 | 0.2 | 6~10 |
YL-SF-600 | 600 | 874 | 40 | 0.28 | 8~14 |
YL-SF-700 | 700 | 900 | 40 | 0.38 | 12~19 |
YL-SF-800 | 800 | 960 | DN50 | 0.50 | 15-25 |
YL-SF-1000 | 1000 | 1200 | DN50 | 0.79 | 23-39 |
YL-SF-1200 | 1200 | 1400 | DN80 | 1.13 | 33-55 |
YL-SF-1400 | 1400 | 1600 | DN100 | 1.54 | 45-75 |
YL-SF-1600 | 1600 | 1800 | DN100 | 2.01 | 60-100 |
YL-SF-1800 | 1800 | 1950 | DN150 | 2.54 | 75-125 |
YL-SF-2000 | 2000 | 2150 | DN150 | 3.14 | 95-155 |
YL-SF-2200 | 2200 | 2250 | DN150 | 3.80 | 115-190 |
YL-SF-2400 | 2400 | 2100 | DN150 | 4.52 | 130-210 |
YL-SF-2600 | 2600 | 2400 | DN150 | 5.30 | 145-225 |
YL-SF-2800 | 2800 | 2500 | DN200 | 6.15 | 155-240 |
YL-SF-3000 | 3000 | 2600 | DN200 | 7.00 | 170-255 |
YL-SF-3200 | 3200 | 2800 | DN250 | 8.15 | 270-320 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
