Product Specifications
| Prod Model: |
DLD3-0.4-1 DLD6-0.4-1(2) DLD12(9)-0.4-1(2) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Style: |
Vertical |
| Fuel: |
Electric Heating |
| Usage: |
Industrial |
| Pressure: |
High Pressure |
| Media: |
Steam and Water |
| Manufacturing Level: |
C |
Product Description

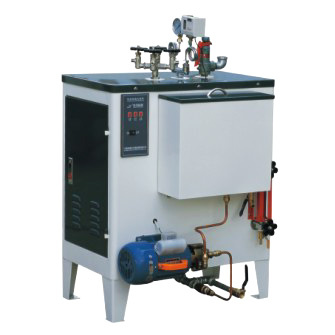

Fully Automatic Electrically-Heated Steam Boiler
Features:
It manufactures the most safe and ideal steam boilers with the advanced, top s
Ecurity techno-logy with high performance. It is attached with water tank, high
Pressure pump, fully automatic high & low water level cut-off device, relief v
Alve, pressure controller, the durable calorific wire for water level gauge, eac
H boiler welding seam has passed X-ray check. It proves to have reliable quali
Ty after the examination and confirmation from Special Equipment Supervision
& Inspection Dept.
|
The main performances & parameters |
|
Model |
DLD3-0.4-1 |
DLD6-0.4-1(2) |
DLD9-0.4-1(2) |
DLD9-0.4-1(2) |
|
Heating power(kw) |
3 |
6 |
9 |
12 |
|
Rated steam pressure |
0.4bar |
|
Steam output (kg. H) |
4.5 |
9 |
13 |
17 |
|
Starting time(min) |
22 |
9(12) |
|
Outline dimension(mm) |
500x360x750 |
600x360x980(Sonde) 635x500x980(Sonde) |
630x380x950(Floating ball) 630x380x1200(Floating ball) |
|
Volume(L) |
12 |
16.1 |
|
Power source |
220V 1pH. 50Hz |
220V. 1pH. 50Hz 380V. 3pH. 50Hz |
380V. 3pH. 50Hz |
We are one of the biggest manufacturers in China and we has been established since eighteen years, Linhai Shengtian Wash Machinery Co., Ltd., has over one hundred and fifty skilled workers, eight engineers, four accountants, eight salespeople for the domestic market, four salespeople for the global market, two vice-presidents, one president, and one board chairman.
Our factory and facilities cover a land area of fifteen thousand sq. M. Of which the plant covers an area of eight thousand and two hundred sq. M.
We have very skillful technical personnel, who make up over 25% of the staff. It is one of the key producers in the same trade all over China.
We have recently introduced some new equipments and machines like a new type of machine with boiler, ironing table, fusing machine, which is simple to use, exactitude in structure and reliable in function, good in quality (ISO. CE) and low in price.
We are suppliers of various steam boilers, ironing tables, strap knife cutters, fusing machines, needle detectors, sewing machines etc. We have also developed some special types of machines according to the special requirements and specifications of our customers.
So far, we have won many customers both locally and abroad and our products have been sold not only in China, but also as far as India, Sri Lanka, Philippines, Italy, and Germany etc.
Welcome to join in our big family.
