Product Specifications
| Prod Model: |
GD-200, 250, 300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Driven Type: |
Electric |
| Usage: |
Packaging of Goods |
| Packaging Type: |
Bag |
| Packaging Material: |
Film |
| Applicable Industry: |
Alcohol and Tobacco |
| Soft And Hardness: |
Flexible Package |
| Application: |
Yogurt |
| Packaging Technology: |
Filling and Sealing |
Product Description

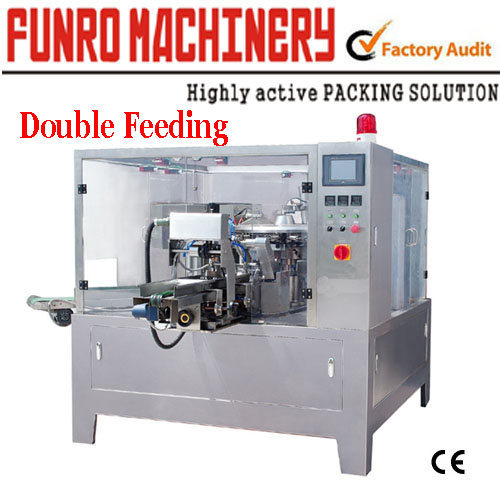

Fully Automatic Given-bag Filling Machine (Double Feeding System)
1) Suitable for pack solid, liquid, thick liquid, powder and so on by changing different feeders
2) Suitable Material: Laminated film
1. Function and characteristics
1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2) Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3) Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5) It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
6) Use the plastic bearing, don't need put on oil, less pollution.
7) Use no oil vacuum pump, avoid polluting the environment in the production.
8) The opening zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open the zipper
9) The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10) Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11) The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
12) With different feeders changed to pack solid, liquid, thick liquid, powder and so on
13) The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film and paper.
2. Main technical parameters
|
Model |
GD8-300 |
GD8-250 |
GD8-200 |
|
Working position |
eight-working position |
|
Pouch material |
Laminated film\PP\PE etc. |
|
Pouch pattern |
stand-up,Flat |
|
Pouch size |
W:200-300mm
L:200-450mm |
W:150-260mm
L:150-350mm |
W:100-210mm
L:100-350mm |
|
Speed |
8-30bag/min |
8-35bag/min |
10-60bag/min |
|
Weight |
1400KGS |
1200KGS |
1000KGS |
|
Voltage |
380V 3phase 50HZ/60HZ |
|
Total power |
4KW |
4KW |
3KW |
|
Compress air |
0.6m3/min(Provided by the user) |
We are the multifunctional mew and sci-tech type enterprise integrating design, manufacture and seals after service of pharmaceutical machinery, packing machinery, plastic machinery, printing machinery and food machinery
Department of the most complete specifications of similar products
Of an enterprise and has passed the I SO9001: 2000 A quality management system certification
We export products with high quality to America, Europe, the Middle East as well as Africa. We are gaining increasing international recognition among our regular and new customers abroad.
Companies adhere to the "honesty, innovation away forever. 's Industrial Road, to create first-class enterprise, first-class products, first-class service and sharp mouth exhausted ahead of our customers willing to cooperate in good faith with the times, create brilliant.
We are looking forward to working hand in hand with you to make tomorrow a better day!
