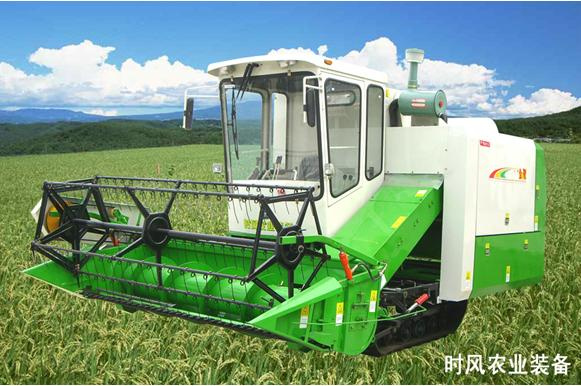

Fully-Feed Rice And Wheat Combine Harvester (4LZ-3)
| Price: |
Negotiable |
| Min Order: |
1 |
Flly-Feed Rice And Wheat Combine Harvester (4LZ-3)
Main Technical Parameters
|
Model
| 4LZ-3
|
Engine Model
| 4105
|
Rated Power (Kw/Rpm)
| 55
|
Feed Rate (Kg/S)
| 3
|
Cutting Width (M)
| 2.58
|
Productivity (Ha/H)
| 0.3 - 0.6
|
Operational Dimensions(L*W*H) (Mm)
| 5545 * 2975 * 2900
|
Total Weight (Kg)
| 3100
|
Min. Ground Clearance (Mm)
| 252
|
Ground Pressure (Kpa)
| ≤ 24
|
Threshing Type
| Axial Flow
|
Re-Threshing Device And Type
| Self-Threshing
|
Cleaning Type
| Drum Sieves \ Vibration Screen And Blowing And Suction Fan
|
Gearbox
| 6 Speeds Forward , 2 Speeds Backward
|
Track Specification
(Width * Pitch * No. Of Teeth) (Mm)
| 400 * 90 * 48
|
Driving Speed (Km/H)
| Forward: 0.90 - 9.88
Backward: 0.74 - 2.66
|
Grain Unloading Method
| Manual \ Automatic
|
Cab
| Shadow Shield (Optional For Cab)
|
Total losses (%)
| Rice ≤ 3.5%
Wheat ≤ 1.5%
|
Lmpurity Rate (%)
| Rice ≤ 2.0%
Wheat ≤ 2.0%
|
Broken Rate (%)
| Rice ≤ 2.0%
Wheat ≤ 2.0%
|
YiGuan is a dedicated farm machinery/equipment and vehicle maker, holding the well know brand AGROPRO, AP and TangLand for decade of years, having CE, EPA and EEC certificates. All operation in our factory is conducted under ISO 9001: 2000 standards, and we welcome tests from the third party.
YiGuan owns state-of-art factories which have annual capacity of 100, 000 tractors and light trucks, strong product's development and research ability, overall testing processes and quality assurance system. We usher the advanced technology, management idea and means to become the top gun tractor
Manufacturer in China.
16\18\20\25\30\35\40\45\50\55\60\65\70\75\80\85\90\95\100\120\125HP two-wheeled and four- wheeled tractors are series tractors which feature large tractive force, low fuel consumption, varied functions and easy operation, wide application and reliability. The tractors are suitable for dry land, hilly land, vegetable farm, orchard, garden and other kind of land. And what's more, they are the ideal vehicle for transportation. Hydraulic steering, driving cab, roll over protection structure, turf tire and industrial tire can be chosen as options to fit on the AGROPRO & AP series tractors, AGROPRO & AP series tractors honorably won the Excellent Product Prize awarded by the government of PRC, and also won gold medal in international Fairs, the products were approved by OECD, parts of AGROPRO & AP series had already got the approval as well. Our series products are sold to more than 100 countries and areas in five continents.
We will continue to provide high quality products and the best service to customers, and we always claim that dedication is our sacred responsibility and unchangeable aim.
Have CE, EPA and EEC certificates, . All operation in our factory is conducted under ISO 9001: 2000 standards, and we welcome tests from the third party.
