Product Specifications
Prod Model: |
ball bearing slide |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Materials: |
Cold Rolled Steel, Cold Rolled Steel or Stainless |
Usage: |
Kitchen,Furniture,Cabinet,etc |
Width: |
27-45mm Popular |
Length: |
250-800m(10''-32'') |
Thickness: |
0.75*0.75*0.75mm-1.2*1.2*1.5mm |
Finish: |
White,Blue,Black Zinc Plated&Color Zinc |
Delivery Time: |
Within 10 Days After The Deposit |
Packaging Details: |
Loose in Box,Blister,1set/Poly Bag,20/25 Sets/Cart |
Material: |
Stainless Steel |
Rail: |
Linear |
Structure: |
Three Knots |
Slide Type: |
Steel Ball Type |
Product Description

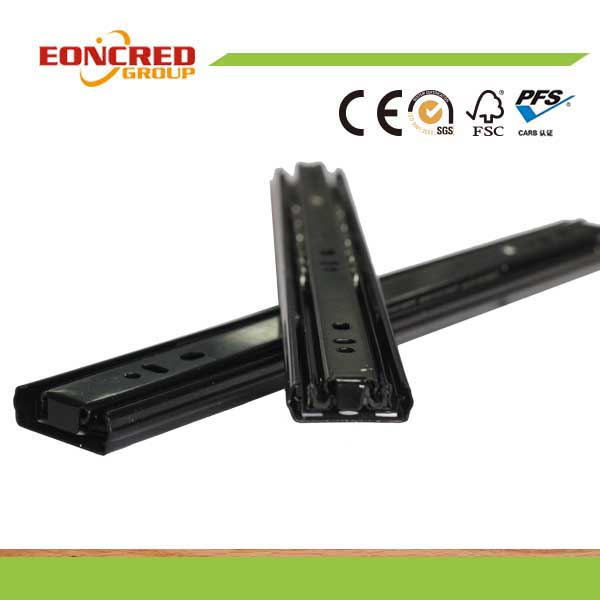

Name | soft close drawer slide |
Material | cold rolled steel or stainless steel |
Finish | Zinc plated,balck/white/blue/colorful zinc |
Width | 27-45mm popular |
Length | 250-800mm(10''-32'') |
Thickness | 0.75*0.75*0.75mm-1.2*1.2*1.5mm |
Balls | 2/3/4 balls avaible |
Loading weight | 45kg max(18'') |
MOQ | 1000Pairs |
Delivery time | within 10 days after deposit,large quantities need more time |
OEM | Avalilble |
Package | Loose in bos,blister,1set/poly bag,20/25 sets/carton |
Supply capacity | 100000t/day |
Application | furniture,kitchen,etc |
Ball bearing table slide Width&Thickness popular
Width | Thickness |
27mm | 0.75*0.75*0.75mm |
0.8*0.8*0.8mm |
0.9*0.09*0.09mm |
1.0*1.0*1.0mm |
35mm | 0.8*0.8*0.8mm |
0.9*0.9*0.9mm |
1.0*1.0*1.0mm |
40mm | 1.0*1.0*1.0mm |
1.0*1.0*1.2mm |
42mm | 0.8*0.8*0.8mm |
0.9*0.9*0.9mm |
1.0*1.0*1.0mm |
45mm | 1.0*1.0*1.0mm |
1.0*1.0*1.2mm |
1.2*1.2*1.2mm |
1.2*1.2*1.5mm |
