Product Specifications
| Prod Model: |
G14 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Shipbuilding,Container,Stainless Steel etc |
| Advantages: |
Save About 30% Consumption & Disposal Costs |
Product Description
Product Description

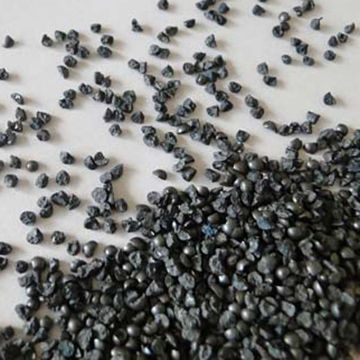

Bearing Angular Steel Grit Capability Introduction:
Raw material is non casting bearing steel, it is crushed after quenching, then it is tempered.
Product features with wear resistance and high impact toughness. According to different application, steel grit is devided into below 3 types:
GH type of steel grit: Hardness>60HRC
This type is specially developed for granite cutting with stable performance, uniform grain size and high wear resistant.
It has been approved by our customers that angular steel grit are sharper, faster cutting speed than arc steel grit and sawing surface finished is flatter
and smoother.
GL type of steel grit: Hardness 53-60HRC
It is angular shape in the originals and is gradually ground round, especially applicable to removing the oxygenated surface,
cleaning of metal parts and shot peening .
GP type of steel grit: Hardness 40-50HRC
The hardness is lower than type GL type, In the process of the abrasives blasting. Its edges are removed slowly, especially applicable to
removing the oxygenated surface, cleaning of metal parts and pre-treatment.
1. Bearing Steel Grit's Physical Properties:
2.Chemical Composition
Chromium(Cr) is used in constructional alloy steels primarily to increase hardenability, provide improved abrasion-resistance and to promote carburization.
Size Distribution of Bearing Angular Steel Grit:
The sizes from G10,G12,G14,G16,G18,G25,G40,G50,G80 and G120 of the bearing angular steel grit are produced at the standard of SAE and ISO9001:2008.
Below chart is the procedure comparison between Bearing Angular Steel Grit and traditional Casting Steel Grit.
Packing Style for Steel Grit:
1. 25Kg polyethylene bags, 40 bags on 1 ton wooden pallet and secured with cardboard box and shrink cap.
2. In 1mt big sack bag
Bearing Angular Steel Grit Grain Size |
Grit Diameter
(mm) | Partial Size % Cumulative Retained in Screen |
| G10 |
| All Pass |
| 80%
min | 90%
min |
|
|
|
|
|
|
|
|
|
|
|
|
| G12 |
|
| All Pass |
| 80%
min | 90%
min |
|
|
|
|
|
|
|
|
|
|
|
| G14 |
|
|
| All Pass |
| 80%
min | 90%
min |
|
|
|
|
|
|
|
|
|
|
| G16 |
|
|
|
| All Pass |
| 75%
min | 85%
min |
|
|
|
|
|
|
|
|
|
| G18 |
|
|
|
|
| All Pass |
| 75%
min |
| 85%
min |
|
|
|
|
|
|
|
| G25 |
|
|
|
|
|
| All Pass |
|
| 70%
min |
|
| 80%
min |
|
|
|
|
| G40 |
|
|
|
|
|
|
| All Pass |
|
|
|
| 70%
min |
| 80%
min |
|
|
| G50 |
|
|
|
|
|
|
|
|
| All Pass |
|
|
|
| 65%
min | 75%
min |
|
| G80 |
|
|
|
|
|
|
|
|
|
|
|
| All Pass |
|
| 65%
min | 75%
min |
| SAE Screen No. | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 80 | 120 |
Screen size
(mm) | 3.35 | 2.80 | 2.36 | 2.00 | 1.70 | 1.40 | 1.18 | 1.00 | 0.85 | 0.71 | 0.60 | 0.50 | 0.425 | 0.355 | 0.300 |
We Bestar Group Co., Ltd. is a professional manufacturer, supplier and exporter for all kinds of sandblasting equipments, specializing in researching, designing and manufacturing ideal sandblast machines for our customers. We are also the manufacturer of metal abrasive which integrates with technical research, development and production. The company has developed 8 series including cast steel shot, cast steel grit, steel cut wire shot, stainless steel shot, stainless steel cut wire shot, aluminium shot, zinc shot, copper shot, 80 kinds of abrasive products.
Our product range is big, covering from traditional Pressure feed sandblaster, Suction feed sandblaster to Automatic blasters, from Portable sand blaster, sand blast cabinet, Sandblast room to Dust-free sandblasting system. All these tools can be well used for the pretreatment of electroplating/painting /coating/oxidization industry etc., removing the metal oxide/charcoal black/rusts on metal or non-metal surface, matte surface processing of mould/mould cleaning, eliminating superficial injuries of metal/non-metal items, etching patterns processing, removing tiny burrs of machinery/plastic injection parts, sandblasting jeans for white and cat's whisker effect, etc.
We are strong in technical force and advanced equipments, we have passed ISO9001-2000 international quality management system certification. We could produce high strength, long durability cast steel shot, cast steel grit through double quenching, tempering, screening and so on. The quality of products has met SAE standard. The company could produce 150, 000 tons metal abrasives per year. Our products are exported to more than 15 countries and regions around the world, and have got good comments from domestic and abroad users of foundry plant, forging plant, heat treatment plant, steel structure plant, container manufacturer, shipyard, auto and locomotive manufacturer and stone industries.
We will be also very glad to produce many other new items in this business according to customers' designs or samples. Warmly welcoming you to contact us, we believe that we are just the right supplier you are looking for.
