Product Specifications
| Prod Model: |
CNC-3000/4000/6000/8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Speed: |
80~1000mm/Min |
| Cutting Thickness (Flame): |
6~100mm |
| Cutting Gas: |
Oxygen + Acetylene or Propane |
| Cutting Precision: |
Meet The Standard Jb/T5102 |
| Process Usage: |
Metal-Cutting CNC Machine Tools |
| Movement Method: |
Linear Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
Product Description

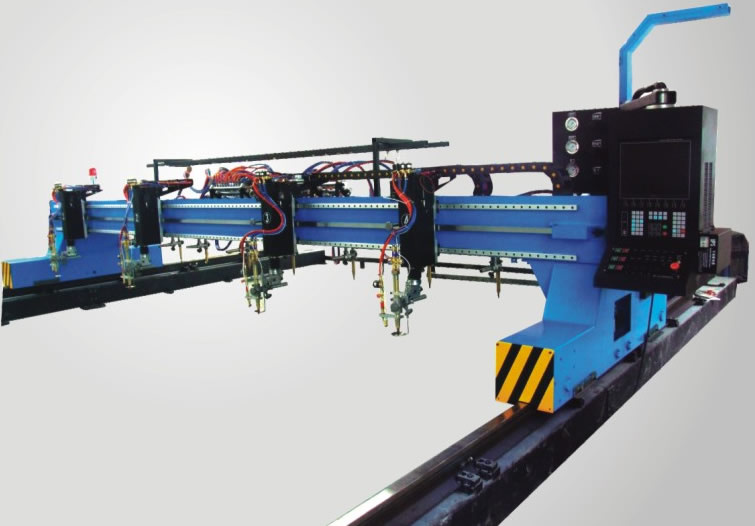

Gantry CNC Cutting Machine (CNC-3000/4000/6000/8000)
Characteristic:
Gantry structure, good stability and durability;
Adopted Panasonic high-precision AC servo motor, high-precision running more smoothly reducer;
With automatic ignition, automatic increase function;
15-inch liquid crystal display, the entire Chinese/English menu, the whole touch screen keyboard closed;
CNC system memory capacity, users are free to store;
CNC Nesting parts containing graphics database programming easier, more efficient operation;
USB interface to transfer the U disk files
Remote control network interface, support for remote fault diagnosis, remote upgrade;
Can be allocated in accordance with customer requirements, such as plasma power.
| Standard technology specification |
| Order No. | ZT2241 | ZT2242 | ZT2243 | ZT2244 |
| Model | CNC-3000 | CNC-4000 | CNC-6000 | CNC-8000 |
| Horizontal span | 3000mm | 4000mm | 6000mm | 8000mm |
| Effective cutting width | 2200mm | 3200mm | 5200mm | 7000mm |
| Track length | 2m×6 | 2m×6 | 2m×6 | 2m×6 |
| Effective cutting length | 10m | 10m | 10m | 10m |
| Cutting speed | 80~1000mm/min |
| Cutting Thickness (Flame) | 6~100mm |
| Cutting gas | Oxygen + acetylene or propane |
| Cutting precision | Meet the standard JB/T5102 |
