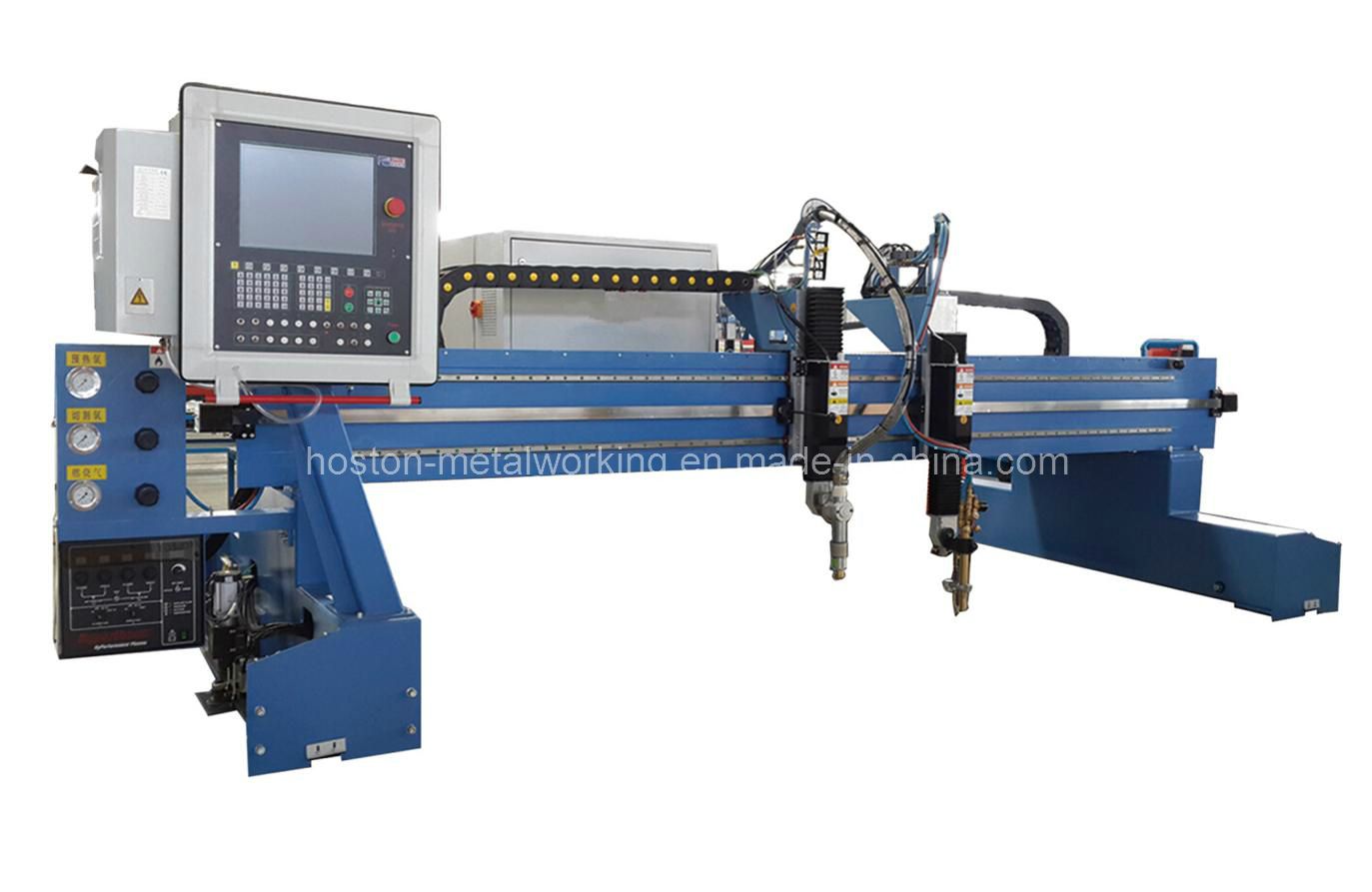

Gantry Type CNC Plasma and Flame Cutting Machine
Δ Introduction and Features:
The gantry CNC plasma and flame cutting machine are widely applied to the cutting of shipbuilding industry, steel structure, pressure vessel and various metallic plates in mechanical industry. Its high automation and cutting precision save the human resources and improve the working efficiency, which makes it suitable for industrial and mining enterprises.
Our gantry CNC plasma and flame cutting machine has many advantages. The cutting machine's broad box-girder design ensures its rigidity and dynamic stability. It also has the advantage of elegant structure, small inertia and smooth running. Its rack is treated by furnace annealing and fine processing. Besides, electrical, mechanical and pipeline system is specially protected, thus ensuring a longer life span of the machine. The running precision of the cutting machine is guaranteed by the AC servo drive system from Panasonic and redustion gears from SHIMPO and NEUGART. The adoption of integrated circuits PLC control panel improves the flexibility of the machine and simplifies its electrical controlling system.
Besides, its CNC comes from the top grade brand of American HYPERTHERM and BURNY, and CNC system is stable and efficient. Besides, its plasma power from HYPERTHERM, THERMADYNEMIC and KJELLBER can be adjusted according to the actual cutting needs. The plasma dust can be cleared with the method of tank-water, water bed and induced draft. The CNC system box and electric cabinet can be added t the industrial air conditioner according to the climate of its location. It can ensure the cutting system runs regularly in hot and humid environment. And the cutting machine has achieved 9 national patented technologies and is in compliance with CE, which is in line with the standard precision of German DIN2310.
Δ Technical Parameter
Gantry rack with light square tubes, suitable to low power plasma and flame cutting with span between 2.5-4.5 meters.
ITEMS
|
SPECS
|
Model |
GSD-2500II
|
GSD-3000II
|
GSD-3500II
|
GSD-4000II
|
GSD-4500II
|
CNC System
|
Micro-EDGE Pro,BURNY DAGGER NC,FastCNC
|
Drive way
|
Double Servo Drive
|
Servo system |
Japanese Panasonic (400W,750W,1000W,1500W)
|
Gear reducer |
Japanese SIMPO and German NEUGART
|
Gas hose |
Italian FITT
|
Magnetic valve
|
Italian CEME
|
CNC torch |
1 or 2 sets of Hypertherm, 1 or 2 sets of flame torch,optional
|
Cutting thickness |
2 sets of torch: 6-150mm
|
Cutting speed |
50-550mm/min
|
Arc voltage THC |
US Hypertherm Sensor-THC, Chinese XPTHC-100III
|
Plasma power |
US Hypertherm PMX series
|
PMX 45
|
PMX 65
|
PMX 85
|
PMX 1650
|
MAX 200
|
Plasma piecing thickness |
≤ 6MM
|
≤ 10MM
|
≤ 10MM
|
≤ 12MM
|
≤ 25MM
|
Edge cutting speed |
≤ 10MM
|
≤ 12MM
|
≤ 16MM
|
≤ 19MM
|
≤ 50MM
|
Plasma cutting speed |
0-6000mm/min
|
Machine idle speed
|
≤ 12000mm/min
|
Gantry span |
2500mm
|
3000mm
|
3500mm
|
4000mm
|
4500mm
|
Cutting width |
≤ 1600mm
|
≤ 2100mm
|
≤ 2600mm
|
≤ 3100mm
|
≤ 3600mm
|
Standard one flame + one plasma,N sets of torch are added, standard width -200N (mm)
|
Standard rail length |
12000mm, optional
|
Cutting length |
≤ Standard rail length -2500(mm)
|
Cutting quality |
JB/T 10045.4-1999 and German DIN2310 standard
|
