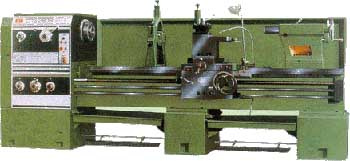

SPECIFICATIONS UNIT CS6266B CS6266C
Capacity Max. Swing dia. Over bed mm Φ 660 Φ 660
Max. Swing dia. In gap mm Φ 870 Φ 870
Max. Swing dia. Over slides mm Φ 420 Φ 420
Max. Workpiece length mm 1000/15002000/3000 1000/15002000/3000
Spindle Spindle bore diameter mm Φ 82 Φ 105
Type of spindle nose no CS6240: ISO 702/III NO. 6 bayonet lock; Others: ISO 702/II NO. 8 COM-lock type
Spindle speed rpm 24 steps 9-1600 12 steps 36-1600
Spindle motor power KW 7.5
Tailstock Diameter of quill mm Φ 75 Φ 90
Max. Travel of quill mm 150
Taper of quill (Morse) MT 5
Turret Tool O. D. Size mm 25X25
Feed Max. X travel mm 145
Max. Z travel mm 320 310
X feed range mm/r 93 kinds 0.028-6.43 65 kinds 0.063-2.52
Z feed range mm/r 93 kinds 0.012-2.73 65 kinds 0.027-1.07
Metric threads mm 48 kinds 0.5-224 22 kinds 1-14
Inch threads t. P. I 48 kinds 72-1/4 25 kinds 28-2
Module threads π Mm 42 kinds 0.5-112 18 kinds 0.5-7
Diametric pitch threads t. P. I. π 42 kinds 56-1/4 24 kinds 56-4
Other Cooling pump motor power KW 0.06
Length mm 2632/3132 2632/3132
3632/4632 3632/4632
Width mm 1050 975
Height mm 1350 1450
Weight Kg 2400/26002800/3000 2200/24002600/3000
