Product Specifications
| Prod Model: |
GD-1884 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apparatus: |
Hydrometer Method Density Meter by ASTM D1298 |
| Application: |
ASTM D1298 Petroleum Products Density Tester |
| Function: |
ASTM D1298 Hydrometer Method Density Meter |
| Device: |
ASTM D1298 Petroleum Products Density Hydrometer |
| Test Standard: |
ASTM D1298 |
| OEM Supply: |
Yes |
| Cubage Of Bath: |
300*380 Mm |
| Heating Power: |
700 W; 1000 W |
| Packing Size: |
77cm*55cm*95cm |
| Gross Weight: |
32kg |
Product Description

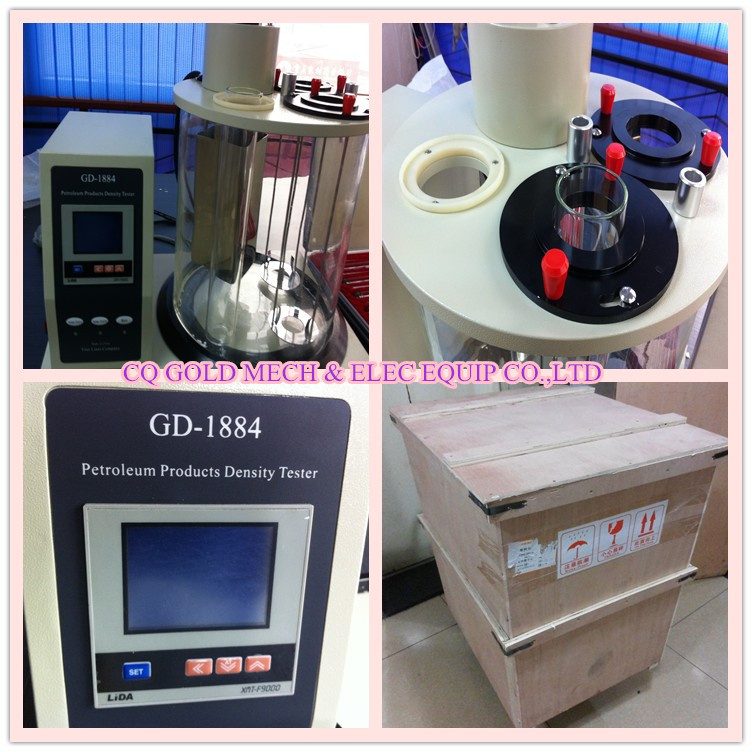

GD-1884 Petroleum Products ASTM D1298 Hydrometer Method Density Meter
Introduction:
1.GD-1884 Digital Display Oil Hydrometer is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products - Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method.
2. GD-1884 Digital Display Oil Hydrometer is used to determine the density of crude petroleum and liquid petroleum.
I. Main Technical Features
1. GD-1884 Digital Display Oil Hydrometer is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. It's structure is simple and compact. Easy to operate.
2. GD-1884 Digital Display Oil Hydrometer adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2ºC.
3. GD-1884 Digital Display Oil Hydrometer equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.
II. Main Technical Specs
| 1 | Power supply | AC(220±10%)V, 50Hz |
| 2 | Volume of glass vessel | 300mm×340mm |
| 3 | Volume of test tube | 500ml |
| 4 | Heating power | 700W,1000W |
5 |
Temperature controller | Range: 0ºC~100ºC |
| Accuracy: ±0.2ºC |
| Sensor: Pt100 |
| 6 | Thermometer | Mercury-in-glass thermometer. Scale division 0.2ºC |
| 7 | Dimension | 560mm×380mm×580mm |
III. Full Set
| No. | Name | Unit | Quantity |
| 1 | GD-1884 Petroleum Product Density Tester | set | 1 |
| 2 | Thermometer(-20~102°C,graduation 0.2°C) | pc | 1 |
| 3 | SY-05 densimeter(10 pcs) | set | 1 |
| 4 | Sensor nipple | pc | 1 |
| 5 | Thermometer plug(3#) | pc | 2 |
| 6 | 500ml tube | pc | 2 |
| 7 | Thermometer collar(1#) | pc | 4 |
| 8 | Rubber plug(21#) | pc | 1 |
| 9 | Power wire(250V 10A) | pc | 1 |
| 10 | Fuse 10A(φ5×20) | pc | 2 |
| 11 | User manual | copy | 1 |
| 12 | Manufacture certification | copy | 1 |
| 13 | Warranty Card | copy | 1 |
| 14 | Temperature controller manual | copy | 1 |
