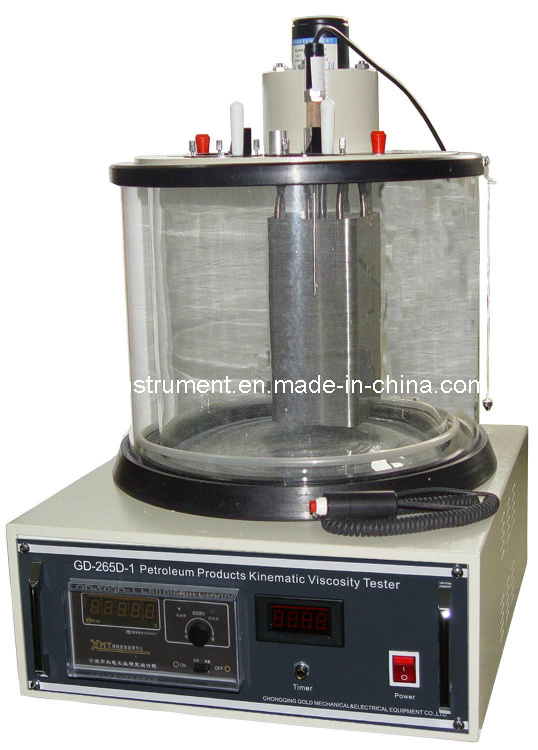

GD-265D-1 Petroleum Products Kinematic Viscosity Testing Apparatus
I. Introduction
» GD-265D-1 Kinematic Viscosity Bath is designed and made as per the industry standard of People's Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester, GB/T 265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity and ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids.
» GD-265D-1 Kinematic Viscosity Bath is suitable to determine kinematic viscosity of liquid petroleum products (Newtonian liquids) by measuring the time for a volume of liquid to flow under gravity through a calibrated glass capillary viscometer at a constant temperature.
II. Main Technical Features
1. The instrument is a kind of specially-made testing machine which the temperature control accuracy can reach ± 0.01° C and having digital display.
2. It adopts hard glass bath and heat preservation cover(double shell). Good heat prevention and easy to observe the sample.
3. It adopts desktop and all-in-one machine design, convenient to use.
4. It adopts electric stirrer to ensure the uniform of bath temperature.
III. Main Technical Specifications
1. Power supply: AC 220 ± 10 %, 50 Hz.
2. Heating power: 1000W(auxiliary heating), 600W(temperature control heating)
3. Power for stirrer: 6W, rotating speed: 1200RPM
4. Temperature range: Room temperature~100 ° C.
5. Temperature control accuracy: ± 0.01° C.
6. Timer: 0.0s~999.9s
7. Constant temperature bath: 20L, double shall structure.
8. Ambient temperature: -10° C~+35° C
9. Relative humidity: <85%.
10. Maximum power consumption: 1800W.
11. Capillary viscometer tubes(Pinkevitch viscometer): 7 pieces in total. The inner diameters for each: 0.6, 0.8, 1.0, 1.2, 1.5, 2.0 and 2.5mm
12. Dimension: 530mm× 400mm× 670mm Net weight: About 42Kg
Note: This instrument is equipped with 7 pieces of Pinkevitch viscometers. We can customize instrument equipping with Ubbelohde viscometers according to customer's requirements.
No.
|
Name
|
Unit
|
Qty
|
1
|
GD-265D-1 petroleum product kinematic viscosity tester(including glass jars, stirring device and rubber bound)
|
set
|
1
|
2
|
Capillary viscometer(Total 7 pieces)
|
Group
|
1
|
3
|
Mercury thermometer
0~50 °C; 50~100 °C; scale values are both 0.1 °C)
|
pc
|
1 for each
|
4
|
Plummet
|
pc
|
1
|
5
|
Sensor
|
pc
|
1
|
6
|
Sensor Connector
|
pc
|
1
|
7
|
Power Supply Wire (250 V 10 A)
|
pc
|
1
|
8
|
Cover
|
pc
|
4
|
9
|
Capillary Clamp
|
Group
|
4
|
10
|
Silica Gel Stopper
|
pc
|
2
|
11
|
Fuse 15 A (Φ5×20)
|
pc
|
2
|
12
|
Rounded Glass
|
pc
|
1
|
13
|
Stopping ring for Thermometer (1#)
|
pc
|
4
|
