Product Specifications
Product Description
Shanghai Aolong machine tool Co., Ltd has found in 1993, have large scale machine tool manufacture, specialized in producing gear hobbing machine and spline shaft milling machine, we supply these machines at the highest quality and most competete, lowest price.
Feature:

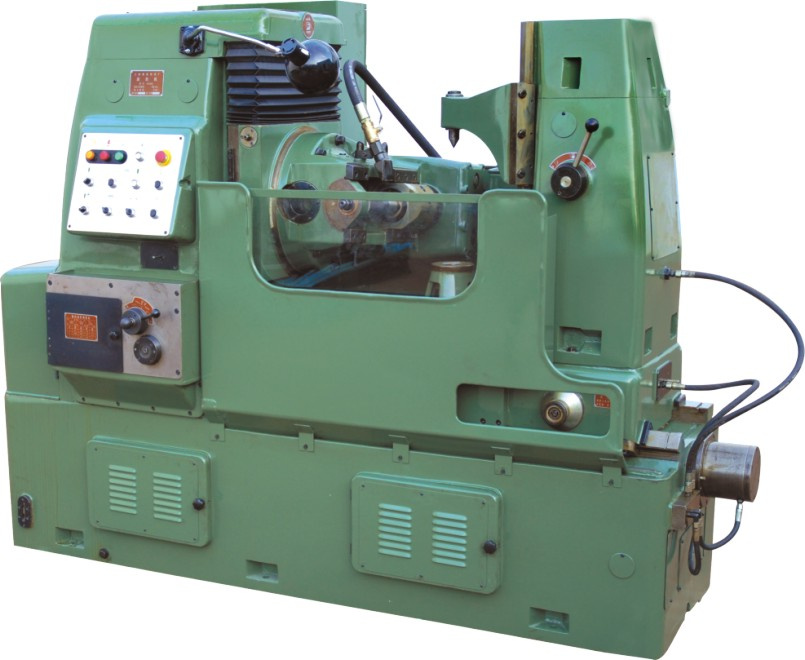

A. )This machine tool could process various cylindrical spur gears, helical gears, worm wheel and chain wheels, as well as spline gears with more than six teeth.
B. )The machines tool has compact structure, sufficient rigidity, is robust and durable, could withstand heavy cutting.
C. )This machine tool is easy to adjust and operate, has high machining efficiency, with hydraulic balance device, allows axial feed in sequence IR up mulling.
D. )The machine tool is equipped with tool rest quick shifter and operating mechanism for automatic stop when cutting us ended, is suitable for batch production, one person may operate several machines.
| Description | Parameter |
| Max diameter of workpiece | 550mm |
| Max modulus of workpiece | 8mm |
| Travel distance of sliding plate | 300mm |
| Max swiveling angle of hob rest | ± 45 ° |
| Max size of hob Dia. | 160mm |
| Workable size Dia.* bore Dia. | Φ510mm x80mm |
| Distance between tool centre and worktable | 235mm-535mm |
| Distance between tool centre and worktable axis | 30mm-330mm |
| Distance between outer bracket and workrable | 380mm-630mm |
| Hydraulic quick movement dustance on work top | 50mm |
| Speed spindle of steps | 40-250r/min |
| Splindle range od steps | 12 steps |
| Max speed of worktable | 7.5r/min |
| Splindle range of feeds | 0.4-4.0mm/r |
| Main motor power | 6.45KW |
| Packing case Dimension(L*W*H) | 2439*1365*1800mm |
| Net weight | 4500kg |
Shanghai Aolong Machine Tool Co., Ltd., has been founded in 1993. Owning several tens year of processing experience and using, maintenance, refitting, knowing of Varity of gears home and abroad, so we has changed the gear processibleequipment. In the process of design and fabricationto the gear-hobbing machine, we have entered several tens years of experience to improve on the maincomponent which us easy to damage and to affect treatingefficiency. We believe that consumers' hobbing machine and spline milling machine is "the most reliable, the most efficient, the most economical".
