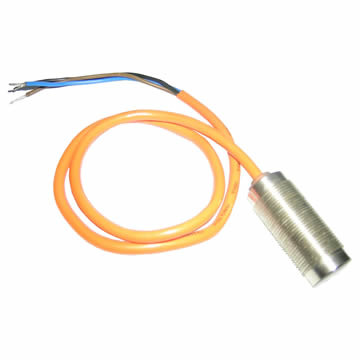

Gear Tooth Speed Sensors Used in Tachymeter (GVS-01)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
200/Piece |
| Pay Type: |
T/T,Paypal |
Gear tooth speed sensor is a true zero speed sensor that provides a user-friendly solution for digital gear tooth sensing applications. This sensor's ability to provide tight duty cycle at nigh speeds and over a wide temperature range makes it for transmission and industrial speed application. The GVS series sensor can be used in conjunction with gears of various shapes and sizes, for example: Diameter 120mm, thickness 6mm, tooth width 3mm, valley width 3mm, valley depth 3mm. The material is low carbon steel.
Features:
1) True zero-speed sensor.
2) Wide operating voltage range.
3) Digital output representing.
4) Small compact size.
5) Simple mounting.
6) Large operating air gaps.
7) Bad environment compatible.
Specifications:
1) Supply voltage: 5~24VAC.
2) Target speed: 0~12, 000rpm.
3) Output voltage: 225mV.
4) Output signal: Square pulse.
5) Operating temperature: -30 ~ 150ºC.
6) Operating air grip: 0.5~2.5mm.
7) Mounting direction: Mark or the bottom face according to the direction.
| Prod Model: |
GVS-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Our Corp.Specializes in studying and manufacturing magnetoelectric sensors, of the ability producing the following series with large scale.
Temperature Switches, PT100, PT1000 sensor, transmitter, and preventing cooling switches, pressure switches and sensors, liquid level switches, flow switches and turbin flow sensor, level Transmitter, position switches, proximity switches, gear tooth speed sensor, magnetic encoder, rotary sensors are marching to market.Our products can be widely applied to automobile engine, automobile-conditioner, household conditioner refrigerator, Electro-heater for appliance, solar boiler, for watching out and controlling temperature, liquid level, pressure and fluid flow parameters.
Products are matched with these famous domestic enterprises, such as Shanghai Carrier.A.O.Smith, Grundfos, Pentair, XinFei (Henan) Guangzhou refrigerator, Midea, , Meiling, Roshita, Hitachi of Japen etc.At the same time, we provide the OEM service.
Our products are CCC, VDE, ETL, CE, CQC, EX approved and have passed through the ISO 9001-2000 certified.
Our whole staff carries out the following operations and managing ideal:Credit, honest and meeting customer's demand.All employees are working hard on your and our business with highly attitude!
