Gearless Traction Passenger Elevator (VVVF Drive) Xr-P07
Price: |
US $ 13000-18000/Set |
Trade Terms: |
FOB,CIF,FCA |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,Western Union |
a. Advantage1. Our elevator control system comes from Germany technology, it is very precise and efficient but operation is simple, it can be mastered by engineers easily.
2. Qualified and safe 3. Steady and durable use4. ISO9001(quality management system) and ISO14001(environment management system) certifiicated5. Competitve price 6. Best support in afterserviceb>. Basic function of Passenger Lift:1. full connective control: at the automatic status, the elevator conducts a comprehensive analysis on the calling signals on different floors and gives priority in responding to the signals that conform its current moving direction.2. VVVF drive: accurately adjust motor speed which makes elevator speed curve smooth and even while starting, running and stopping to obtain better comfort.3. VVVF drive for door operator: accurately adjust motor speed which makes door open/close more gentle and sensitive.4. Emergency car lighting: when power fails, emergency lighting in the car automatically turns on.5. Light curtain protection: multiple infrared-light beams covering the full height of the door as the door opens or closes detect passengers or objects.6. Well-floor distance self-tuning7. full load direct movement8. overload holding stop9. car illumination / automatic shut-off of the fan10. power on re-levelling11. main floor shut off12. automatic return to home landing13. hoisting rope slippery-resistant protection14. start protection control: in the predetermined period of time without leaving the door zoon, the car will stop to run.15. inspection operation:when entering inspection operation, the car will come into inching operation at 0.3m/s16. safely stop17. self diagnosis of breakdown18. repeated door closing19. reopen with hall call20. express door closing21. car stops and doors open22. micro-touch button for the car23. car arrival chime24. five-way communication25. car's bell26. floor and direction indicator in the car27. floor and direction indicator at hall28. compulsory slowdown protection at terminal stations29. up/down overrun and final limit protection30. over speed protection device31. over speed protection32. pre-load startc>. About our company:We have obtained Class A qualification of " Manufacture License of Special Equipment"and "Installation, Alteration,Repair & Maintenance License of Special Equipment".We have more than 200 employees including 40 technology engineers, they are working in such 8 departments: technology dept, production dept, sales dept, quality checking dept, delivery dept, installation and maintenance service dept, afterservice dept, management dept and finance dept. Our main products include Passenger Lift, freight lift, panoramic lift, hospital lift, car lift ,escalator and moving sidewalk. We are a young enterprise and developing very fast, welcome you to visit our factory and we sincerely hope to cooperate with you. We will give you the best support both in price and in service.d>. Pictures for your reference:

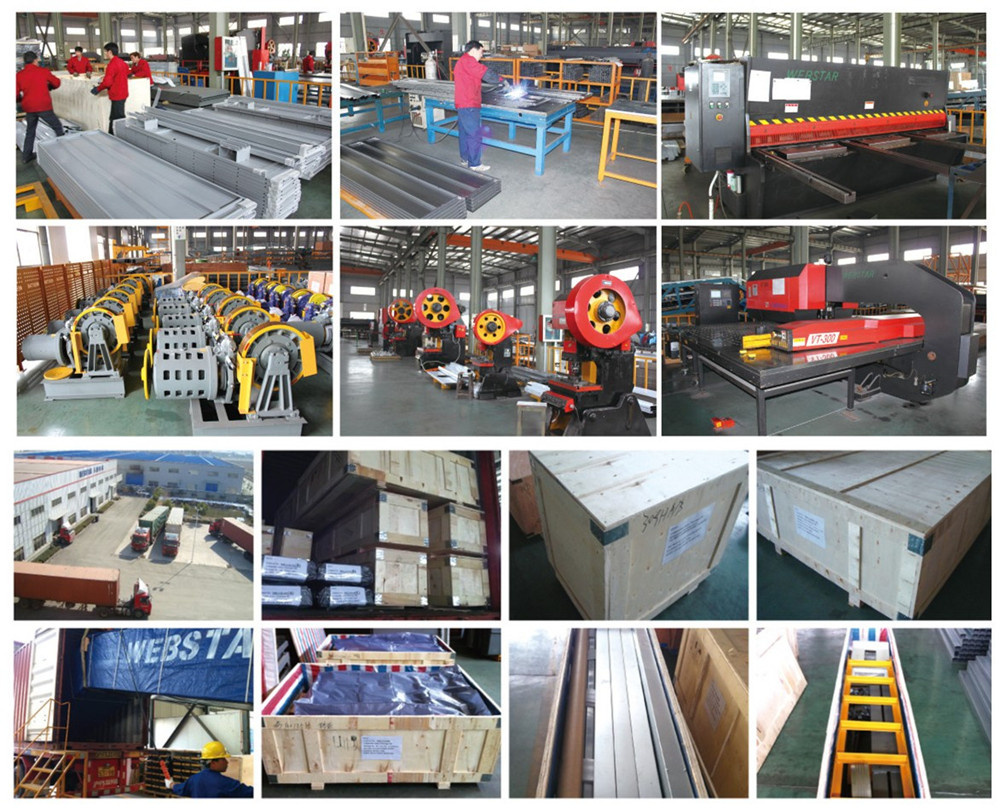

Workshop, packing and delivery:
If you have any query about the products, please feel free to contact me!
Specifications in the following excel for your reference: Passenger Lift |
| Load(Kg) | 450 | 630 | 800 | 1000 |
Rated Speed(m/s) | 1 | 1.5 | 1.0 | 1.5/1.6 | 1.75 | 1.0 | 1.5/1.6 | 1.75 | 2.0 | 1.0 | 1.6 | 1.75 | 2.0 |
Door Size(mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 900 | 900 | 900 | 900 |
Car Size(mm) | width | 1100 | 1100 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | 1600 | 1600 | 1600 | 1600 |
depth | 1100 | 1100 | 1100 | 1100 | 1100 | 1350 | 1350 | 1350 | 1350 | 1500 | 1500 | 1500 | 1500 |
Shaft Size(mm) | width | 1800 | 1800 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2200 |
depth | 1750 | 1750 | 1850 | 1850 | 1850 | 2050 | 2050 | 2050 | 2150 | 2200 | 2200 | 2200 | 2300 |
Machine Room Size (mm) or NO | width | 1800 | 1800 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 3000 | 3000 | 3000 | 3000 |
depth | 3200 | 3200 | 3700 | 3700 | 3700 | 3700 | 3700 | 3700 | 3700 | 3700 | 3700 | 3700 | 3700 |
height | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
Overhead Height(mm) | 4400 | 4600 | 4400 | 4600 | 4800 | 4400 | 4600 | 4800 | 4800 | 4400 | 4600 | 4800 | 4900 |
Pit Depth(mm) | 1500 | 1700 | 1500 | 1700 | 1700 | 1500 | 1700 | 1700 | 2000 | 1500 | 1700 | 1700 | 2000 |
Prod Model: |
XR-P07 |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Drive: |
Vvvf Inverter Driving System |
Traction Machine: |
Gearless Motor |
Control: |
Monarch System |
Buffer: |
Hydraulic Buffer |
Car Position Indicator: |
LCD Display/DOT-Matrix Display |
Driving Type: |
AC Elevator |
Capacity: |
500-1000kg |
Persons: |
6 - 10 |
Speed: |
1.00 - 2.00m/s |
Our company is a modernized and professional elevator & escalator manufacturer which integrates the design, development, manufacturing, sales, installation, and maintenance into a whole. We are becoming a R&D center for elevator & escalator now, and we have some cooperated & affiliated companies all over the world.
Our main products include Passenger lift, freight lift, panoramic lift, hospital lift, car lift, escalator and moving sidewalk. Elevator with machine room and machine room less, speed from 0.5m/s to 6m/s. Escalator with VVVF drive and smart sensor control. They are applicable for residence, business buildings, factories, shopping centers, airports, bus stations and other places.
Our elevator & escalator control technology comes from the United State and Germany, it is very precise and efficient but operation is simple, it can be mastered by engineers easily. And our mechanical design technology is advanced and can be fitting to different requirements from customers.
Most of our parts suppliers are the biggest parts manufacturer in China. i. e. Our gearless motor from XIZI Forward, Montanari, Bluelight, Torin; Our gear motor from XINDA, Torin; Our control system from Monarch, STEP, Bluelight; Our door operator from Shenling, Eshine etc., all of them are the leading enterprise in elevator and escalator parts industry in the world.
We have our own and professional import and export company to manage international business, it carries out sales activities in 25 oversea states and areas including Korea, Australia, South-East Asia, West-Asia, Middle-east, Europe, North and South America, Africa. Most of elevators and escalators which had been installed are running very well.
We are a young enterprise and developing very fast, welcome you to visit our factories and we sincerely hope to cooperate with you. We expect long terms cooperation with you and achieve a win-win situation.
