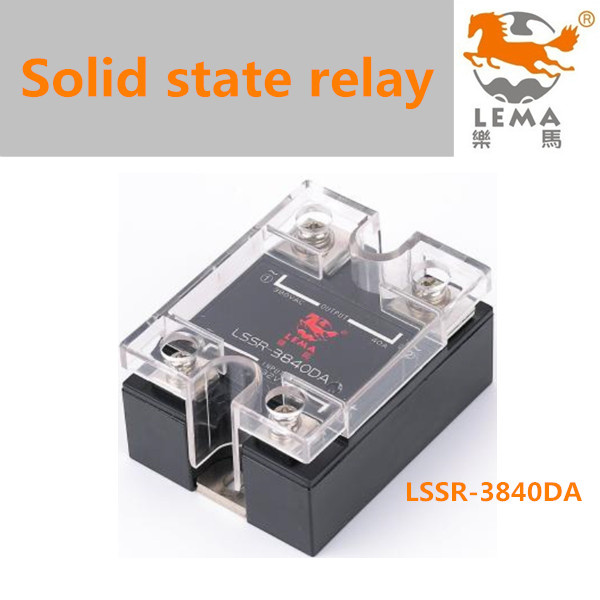

General Purpose Solid State Relay
Products Introduction:
1. Single phase
2. Removable protection cover available
3. AC Control voltage
4. Full range load current from 10A to 100A
5. High reliability
Relay widely used in the fast switching of small AC areas, with a high dielectric strength of 2500V.
Technical Specification:
1. VR: 470Kohm/2W, output 380VAC 60A
2. Size: 58mm*45mm*28mm
3. High reliability
|
Product Description |
|
LSSR Series is one phase industrial solid state relay widely used in many industrial areas, the input control voltage is 4-32VDC or 90VAC-280VAC, with full range rated load current from 10A to 100A and multiple load voltage 240VDC, 380VDC, 480VDC or 600VDC. |
|
Model Ordering Information |
|
Load Current |
10A |
15A |
20A |
25A |
40A |
|
DC:4-32V |
LSSR-D380A10Z |
LSSR-D380A15Z |
LSSR-D380A20Z |
LSSR-D380A25Z |
LSSR-D380A40Z |
|
AC:90-280V |
LSSR-A380A10Z |
LSSR-A380A15Z |
LSSR-A380A20Z |
LSSR-A380A25Z |
LSSR-A380A40Z |
|
Load Current |
50A |
60A |
70A |
80A |
100A |
|
DC:4-32V |
LSSR-D380A50Z |
LSSR-D380A60Z |
LSSR-D380A70Z |
LSSR-D380A80Z |
LSSR-D380A100Z |
|
AC:90-280V |
LSSR-A380A50Z |
LSSR-A380A60Z |
LSSR-A380A70Z |
LSSR-A380A80Z |
LSSR-A380A100Z |
|
Technical Specification |
|
Input Data |
|
Input Voltage Type |
DC Input |
AC Input |
|
Control Voltage Range |
4-32VDC |
90-280VAC |
|
Minimum Turn-On Voltage |
4VDC |
90VAC |
|
Minimum Turn-Off Voltage |
1VDC |
10VAC |
|
Maximum Control Current |
25mA |
10mA |
|
Control Method |
Zero cross trigger |
|
Output Data |
|
Input Voltage Type |
DC Input |
AC Input |
|
Load Voltage Range |
48-440VAC |
|
Frequency Range |
47Hz to 63Hz |
|
Maximum Turn-On Time |
1/2AC Cycle + 1mS |
20mS |
