Geomembrane Wedge Welder Machine PVC HDPE Welding Gun
Price: |
US $ 1200set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10set |
Pay Type: |
L/C,T/T,D/P |

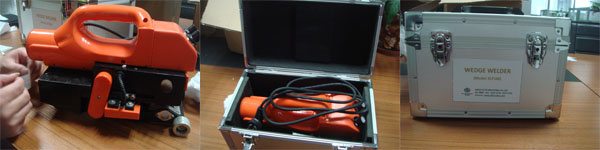

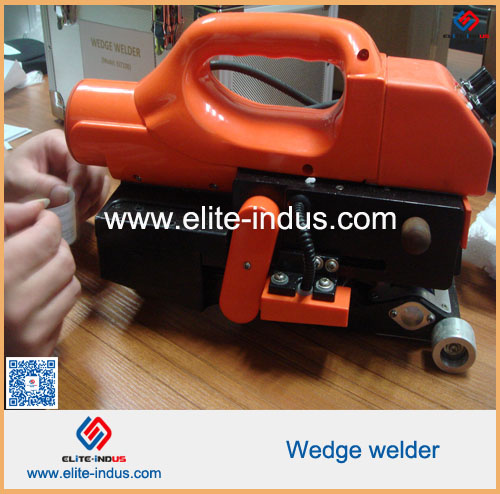

Geomembrane Wedge Welder Machine PVC HDPE Welding Gun1,Wedge welder ELT100 A. IntroduceElt100 Wedge welder is our new developed products,which can weld geomembrane of different thickness and are applicable for welding of all thermal-fused material such as PE, PVC, HDPE, EVA,PP and the like. The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation; speed control adopts PWM automatic voltage and speed regulation circuit, driven by DC servo motor, with great output torque and the operating is stable.It can maintain a constant speed on the condition of creeping,vertical creeping and variable road load. Also this series of welding machine is stable in performance despite of external temperature and voltage variation.This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as express highways, tunnels, reservoirs, waterproof of construction and so on. B.SpecificationNo. | Item | Specification |
1 | Voltage (V) | 220V |
2 | Frequency (Hz) | 50Hz |
3 | Power (P) | 550W-750W |
4 | Welding speed (V) | 0.5-5m/min |
5 | Heating temperature(T) | 0-45ºC |
6 | Thickness of material to be welded | 0.2mm-2.0mm |
7 | Overlap width | ELT100:100mm ELT150:150mm |
8 | Welding width | 12.5mm*2, interior cavity 12mm |
9 | Seam strength | ≥85%base material (tensile resistant in shear direction) , complete machine |
10 | Weight | 5Kg |
11 | Insulation class | class II |
C.Packing deatails:2,Plastic Extruder ELT-E A.IntroduceHand-held plastic Extruder, a new type hot air welder that researched and manufactured by our plant.Absorbed the machinetechnology, Germany, Italy, similar products imported host assembled, host power, extrusion capacity up to 3 kg, stable performance, preheating and screw extruder integration design wind, plasticizing of good quality and mould design smooth, no dead Angle and phenomenon of carbide, equipped with Switzerland imports a large amount of fan, heat energy, guarantee the mother material in front of the adhesive is of high temperature, so that fusion effect.The machine operation is simple and flexible, light weight,only 4 kg, can be used for welding parts are hardest to reach.B.SpecificationVoltage | 220V |
Extruder Powder | 1100W |
Heating Powder | 3400W |
Welding Rate | 3.5KG/H |
Machine Net Weight | 5.0kgs |
Pedestal Net Weight | 2.0kgs |
Total Packing Weight | 11.0kgs |
C.ApplicationMainly used for PP/PE/PVC plate, container,chemical tank welding solutions;And the production of the pipe bend pipe connection;About all kinds of plastic pipe connecting sealing and repairing;Plastic tub of tank production and fixed;Plastic sheet welding;Production form kinds of pipe fittings and elbow, etc.,especially suitable for field construction work on site.3, Hot Air Welder Gun ELT-TH200 A.BenefitsDouble insulated,safe,reliable,constant temperature control, steplessly adjustable.Used for handwelding of various of hot melt plastic materials. Also used for thermoforming,docking and other operations.B.SpecificationVoltage (V) | 220V |
Frequency (Hz) | 50Hz |
Max Power (P) | 2000W |
Wind pressure | 3000Pa |
Air quantity | 8m3/h |
Temperature range | 0-550ºC |
Noise level | ≤65dB |
Type insulation | Loop |
weight | 0.9Kg |
C.Application of hot air gun1. Can weld the hot plasticity material2. Can go on and take shape to hot plasticity material, crooked with sealing.3. Can dry up the surface got wet by water .4. Can make hot sleeve pipe of contracting etc. membrane, bring and make mould's part not to shrink5. Can unfreeze the frozen water pipe .6. Can melt and have viscidity material and formate the glue that solvent dissolve.7. Can light flammable things
Prod Model: |
Elt-HDPE Welding Gun |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Plastic Welding Machine |
Product Name: |
HDPE Welding Gun |
Voltage (V): |
220V |
Frequency (Hz): |
50Hz |
Power (P): |
550W-750W |
