Product Specifications
| Prod Model: |
GF2000P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
1GHz |
| Memory: |
2g |
| Operating System: |
Android 4.0 |
| Display Screen: |
3.5-Inch Touch Screen, 640 * 480 Dots |
| Programming Language: |
C Language\Dbf Database Development System |
| SIM Card Slot: |
2 Slots |
| Camera: |
300 Pixels, Le D Flashlight |
| GPS: |
Accuracy of 3 M |
| Seiko Printer: |
Dots Per Line: 384dots,32 English Characters/ Lin |
| Style: |
Black and White |
| Interface Type: |
USB |
| Type: |
Dot-matrix |
| Usage: |
Document Printer |
Product Description

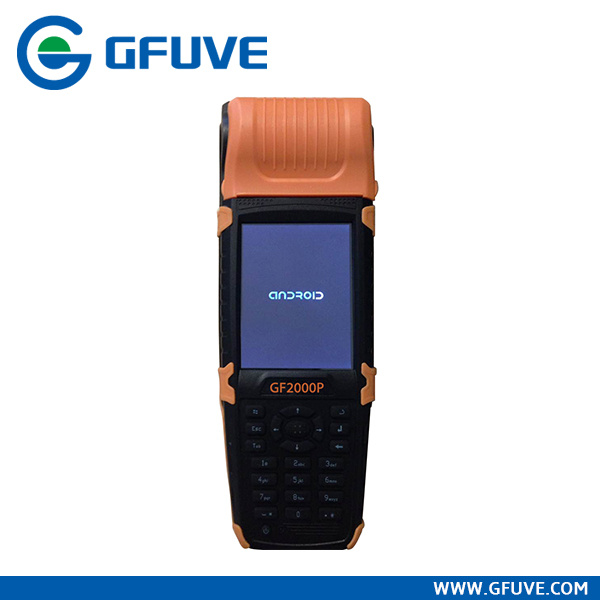

GF2000P Handheld terminal with inbuilt printer
Free SDK is provided for customers' secondary development; Also we can customize the application software if required.
As specialized in this field for many years, we have accumulated a lot of experience in the following field
1. Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie.
2. Electricity, Gas, meter reading and billing
3. Hotel/Supermarket/Retail/Restaurant/Convenience store management.
4. Lottery.
5. Surveying.
8) Other applications.
Main features:
1. Android 4.0 or Wince 6.0 operating system, easy to develop applications for them.
2.1G Hz ARM11 CPU makes sure the fast operating speed of the device.
3. Seiko Printer 8/mm(203dpi)gives you a good resolution of the printing.
4. GPRS/WCDMA/CDMA can be customized as your requirement
5. RF/HF/UHF can be customized to match your system
6.1D/2D Barcode Supported
Characteristics
CPU ARM11 1G Hz
Memory 2G
Operating system Android 4.0
Communication USB2.0, 38K Infrared (Can transfer as far as 12 m. )
External dimension 200(l)*60(w)*50(h) mm
Weight includes standard battery 320 g
Display screen 3.5-inch touch screen, 640 * 480 dots
Keyboard 25 Silicone Keyboard
Battery Rechargeable battery 2000mA/7.2
Expansion Slots MICRO SD card
SIM card slot 2 slots
Audio High-volume speakers
Camera 300 pixels, LE D flashlight
Operating environment
Working temperature -20º C to 50º C
Storage temperature -25º C to 70º C
Humidity: 5%RH - 95%RH(o condensation)
Drop Specifications 6 surfaces can withstand drops from 1.5 meters to concrete impact
Scroll to specifications 1, 000 times 0.5 meters, six rolling contact surface
Sealed environment IP64
E-Tag RF13.56mhz Supported Standards: EPC Gen 1 (0kind, 1kind)and Gen 2
(Optional) Low working frequency: 125kHz
Tabdomining: EM 125KHz
Working frequency of high frequency: 13.56MHz
Protocol standard: ISO14443A/B, IS015693,
Nominal read range: 5.0cm to 10cm
Rated write scope: 5.0cm to 10cm
Range: From the front of the device from the 70 ° Angle (according to the band)
Barcode Reader Optical Resolution: 0.005 inches minimum bar width
(Optional)
Rotation angle: Vertical deviation angle + / -30
Tilt angle: The angle from normal + / -65 °
Offset visual tolerance: Deviation from the normal angle of + / -60 °
Ambient light: Sunlight: 8, 000 ft. Candles (86, 112 Lux)
Artificial light: 450ft. Candles(4, 844Lux)
Scanning Frequency: 50 scans per second (+ / -6) times (two-way)
Scan Angle: 46.5 ° (standard)
Laser power: 1.0 mA (standard)
Reading accuracy: Laser greater than 6 mil
Laser Safety: IEC 2 / FDA II grade, standards compliance IEC60825-1/EN60825-1
GPS Accuracy of 3 m
Wireless Communications
(Optional) GSM/GPRS/EDGE:
GSM850/EGSM900/DCS1800/PCS1900
WCDMA/HSDPA: 2100M(band I), 1900M(band II), 850M(band V)CDMA2000
Wireless Module (Optional) Customized IRDA
RF
HF
UHF
Seiko Printer Paper Diameter: 45mm
Printing Method: Thermal line
Resolution: 8/mm(203dpi)
Dots per line: 384dots, 32 English characters/ line
Print contents: Chinese, Numbers, English, all kinds of symbols
Printing speed: 50mm/s(adjustable)
The way loading paper: Clamshell type paper
Paper out test: When the printer runs out of paper function sounds
Black Label test: Yes
Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
