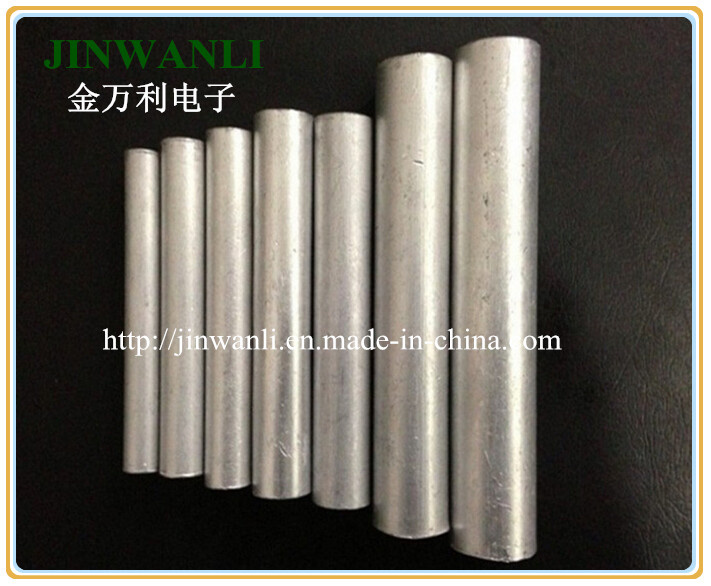

GL Aluminium connector is suitable for the connection of aluminium conductors (section 16-400mm2) in power cable with electronic equiment.This type of aluminium connector is with separate in the middle and used for oil plug.They are made of higher quality L3 aluminium tube.
Specifications
1) Application: transition connection ofcircular or hemicycle aluminum wires, power cable with copper terminals in electeical equipment
2) Material: GT series hole-passing connection tube: T2 Copper bar;
GL series hole-passing tube: L3 Aluminum bar
3) Certificate: ISO9001-2008
4) Manufacturer: price advantage and quick delivery
Dimension
| Item No. | Dimension(mm) |
| DΦ | Φ | L |
| GL-G1-10 | 9 | 5 | 52 |
| GL-G1-16 |
10 |
6 |
56 |
| GL-G1-25 |
11 |
7 |
62 |
| GL-G1-35 |
12 |
8 |
67 |
| GL-G1-50 |
15 |
10 |
76 |
| GL-G1-70 |
17 |
11 |
87 |
| GL-G1-95 |
19 |
13 |
92 |
| GL-G1-120 |
21 |
15 |
98 |
| GL-G1-150 |
23 |
17 |
108 |
| GL-G1-185 |
25 |
19 |
114 |
| GL-G1-240 |
28 |
21 |
118 |
| GL-G1-300 |
34 |
24 |
135 |
| Item No. | Cable spec(mm2) | Dimensions(mm) | Note |
| D | d | L1 | L |
| GL16 | 16 | 10 | 6 | 30 | 65 | (1)Can be produced according to customer's drawings. |
| GL25 | 25 | 12 | 7 | 32 | 70 |
| GL35 | 35 | 14 | 8.5 | 34 | 75 |
| GL50 | 50 | 16 | 10 | 35 | 80 |
| GL70 | 70 | 18 | 11.5 | 42 | 90 |
| GL95 | 95 | 21 | 13.5 | 43 | 95 |
| GL120 | 120 | 23 | 15 | 47 | 100 |
| GL150 | 150 | 25 | 16.5 | 49 | 105 |
| GL185 | 185 | 27 | 18.5 | 50 | 110 |
| GL240 | 240 | 30 | 21 | 55 | 120 |
| GL300 | 300 | 34 | 23 | 60 | 130 |
| GL400 | 400 | 38 | 27 | 65 | 140 |
GL Aluminium connector,tube cable connector / GL Aluminium connector,tube cable
| Packaging Detail: | Our normal packing is 100/50 PCS per bag,one bag in a box,carton outside Standard carton: 37*37*18MM,one carton packing 24000PCS We also can pack quantity as customers' requirement, including the special design bag,box and cartons |
| Delivery Detail: | Small order 10 days,big order whthin 25 days |
