Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
2000-40000bph |
| Composition: |
Filling Machine |
| Process: |
Thermal Processing |
| Processing Material: |
Natural Ingredients |
Product Description
PET Bottled Orange Juice Drink Hot Filling Machine
1. Capacity: 2000BPH-40000BPH
2. Apply to vaires juice, beverage, energy drink hot flling.
3. Contact part is made of SUS316
4. Rinsing-filling-capping monoblock
5, The machine is designed by our company with stable characteristic, Advanced technology, nice appearance and complete function.
6, The machine is mainly used for washing/filling/capping PET bottle juice, Tea drinks and all kinds of energy drink for hot filling.
7, Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
Technical parameter
Rating output (500ml): 9000bph
Rinsing heads: 24
Rinsing time: 2-2.5s

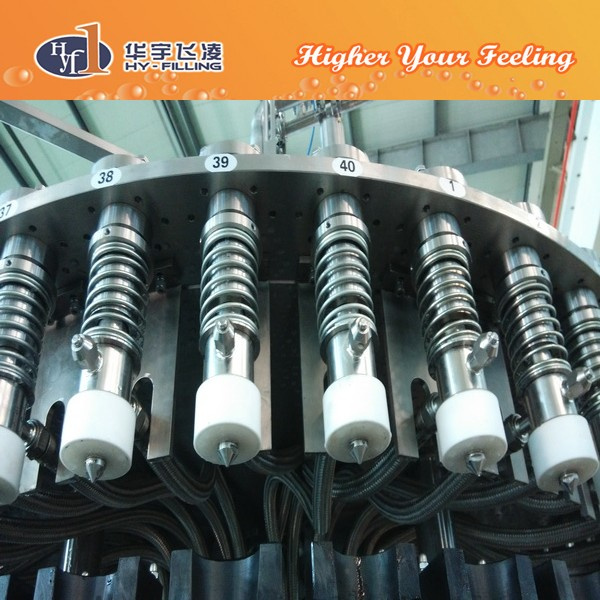

Filling heads: 24
Filling valve speed: 115ml/s
Capping heads: 8
Suitable for bottles: PET bottle diameter: D=50~100mm
Bottle height: H=150~320mm
|
PRICE TERM |
FOB Shanghai |
|
STANDARD PACKING |
Export package suitable for long distance transport by sea & truck |
|
DELIVERY |
80 days since receipt of order |
|
PAYMENT TERMS |
30% T/T as down-payment |
|
70% T/T before shipment |
|
OFFER VALIDITY |
60 days from the date of the offer |
|
GUARANTEE |
12 months after installation & commissioning, or 15 month after delivery date |
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.
Main Products:
1.2000-48000 BPH Mineral/Pure Water Bottling Line;
2.2000-40000 BPH Juice Bottling Line;
3.2000-40000 BPH Carbonated Beverage Bottling Line;
4.3000-40000 BPH Beer Bottling Line;
5.6000-30000BPH Aluminium Can Filling Line;
6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
7. Edible Oil Filling Line;
8. Aseptic Brick Packing Machine;
9. Aseptic Pouch Packing Machine (Pillow Type);
10. PET Preform Injection Machine;
11. Bottle Blow Moulding Machine;
12. Water Treatment;
13. UHT Plant;
14. Carbonating Mixer;
15. Bottle Unscrambler;
16. Film Shrink-wrapping or Carton Box Packaging Machine;
17. PA-Depalletizer;
18. Turn Key Project.
