Product Specifications
| Prod Model: |
DLQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Filter Precision: |
1-100microns |
| Water Flow: |
10-40 Cbm and More Than |
| Application: |
Water Filter ,Liquid Filter |
| Replace The Pressure: |
0.05MPa-0.07MPa |
| Working Pressure: |
0.6 / 1.0 / 1.6MPa |
| Design Temperature: |
5 Oc -100 Oc |
| Operating Temperature: |
5 ~ 40 Oc (Exceed 60 Oc to Be Informed) |
| Body Material: |
Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) |
| Certification: |
ISO,SGS |
| Filter Length: |
10 "~ 40" |
| Usage: |
Water Filter |
| Type: |
Pocket Filter |
| Material: |
304ss or 316L |
| Filtration Grade: |
Precision Filter |
Product Description

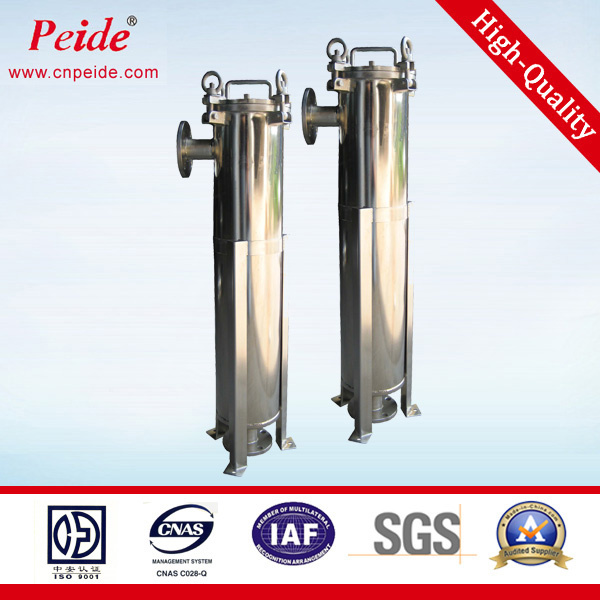

Good Mechanical Intensity Precision Filter for Water Treatment
1. Characteristics
1, high filtration precision, uniform pore size filter.
2, small filtration resistance, flux, interception capability, long service life.
3, filter is clean and no second pollution to the filter media.
4, It also can filter acid, alkali and other chemical agents.
5, high-intensity, heat-resistant, deformation resistance.
6, low price, low running costs, easy to clean, filter can be replaced.
2. Application
1, Food industry: Fine filter of space water, mineral water, beverages, liquor clarification and filtration process.
2, Pharmaceutical industry: Sterile water, oral, infusion and injection water treatment.
3, Electronics industry: Water preparation semiconductors, instruments, picture tubes and other production plants, wash water filtration bar.
4, Chemical industry: Organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification.
5, Oil industry: Oil field water injection preparation and so on.
6, Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment.
7, Seawater, brackish water desalination water treatment, hotels, apartments water treatment.
8, Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices.
3. How precision filter works
Precision Filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria.
Molded filters are: Cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter.
Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um. For the same form of filter, it is divided into different models by their dimensions.
4. Parameter
Working pressure: 0.6 / 1.0 / 1.6Mpa
Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature: 5 ~ 40 º C (exceed 60 º C to be informed)
Design temperature: 5 º C -100 º C
Replace the pressure: 0.05Mpa-0.07MPA
Filter interface: Flat compression, plug-in
Cylinder and base connection mode: Quick opening, flanged
Filtration accuracy: 1μ M ~ 100μ M
Cartridge Quantity: 1 core to 180 cores
Filter Length: 10 "~ 40"
Seal type: O-ring or flat washer
Seal Material: PTFE, rubber.
Finish: Matte jet beads, mirror electrolytic polishing.
Sealing material: Nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
Interface Type: GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
Flange Standard: GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
Manufacturing, testing standard: GB150 standard, or user-specified criteria.
5. Composition
Precision filter is mainly composed by the filter housings, filter cartridges and other components, and the filter housings materials is mostly made of R304 stainless steel, if it's used in the acid and other special occasions, it will be made by R316 stainless steel. It an be divided into the flange and clamp, and flanged housing is mainly used in the occasion of larger flow filtration. The filter is mainly made by PP cotton, it can also be made by wound filter or activated carbon filter on some occasions. The number of filter may vary from 1 to dozens, primarily be determined from the water flow rate.
FEEL FREE TO CONTACT US WITH ANY QUESTIONS YOU MAY HAVE!
|
Material of filter |
Temperature(degree centigrade)
|
Pressure(Mpa) |
precisionμm |
size |
|
Sintered titanium alloy filter |
≤300 |
0.015 |
0.3~100 |
Φ50×120 Φ50×450 Φ60×110
Φ60×300 Φ60×500 Φ60×1000 |
|
Stainless plait filter |
≤500 |
0.01 |
2~180 |
Φ35×210 Φ65×250 Φ86×350
Φ86×500 Φ90×1000 |
|
PTFE plait filter |
≤140 |
0.011 |
0.02~50 |
Φ45×250 Φ45×500 Φ45×1000
Φ60×250 Φ60×500 Φ60×1000 |
|
PP plait filter |
≤60 |
0.012 |
0.1~60 |
Φ45×250 Φ45×500 Φ45×1000
Φ60×250 Φ60×500 Φ60×1000 |
|
Metal fiber sintered felt |
≤130 |
0.01 |
1~70 |
Φ180×425 Φ180×800
Φ180×1000 |
|
Ceramic filter |
≤250 |
0.018 |
0.4~80 |
Φ100×300 |
|
Melt-down filter |
≤60 |
0.015 |
1-100 |
Φ60×250 Φ60×500
Φ60×750 Φ60×1000 |
|
Wound filter |
≤60 |
0.012 |
1-100 |
Φ60×250 Φ60×500
Φ60×750 Φ60×1000 |
