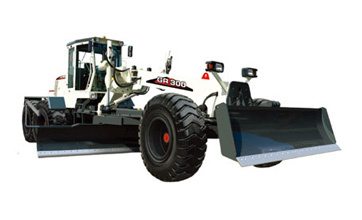

GR300
Basic specification
Engine modelQSL9
Rated power/speed 224kW/2100rpm
Dimension(LxWxH)10500× 3100× 3550mm
Operating weight(Standard)26000kg
Performance specification
Travelling speed, forward5, 8, 11, 19, 23, 40 km/h
Travelling speed, reverse5, 11, 23 km/h
Tractive force(f=0.75)140KN
Max. Gradeability30%
Tire inflation pressure350 kPa
Working hydraulic pressure16 MPa
Transmission pressure1.3~1.8MP
Operating specification
Max. Steering angle of front wheels± 50°
Max. Lean angle of front wheels± 17°
Max. Oscillation angle of front axle± 15°
Max. Oscillation angle of balance box15
Frame articulation angle± 27°
Min. Turning radius using articulation8.0m
Biade
Maximum lift above ground450mm
Maximum depth of cutting500mm
Maximum blade position angle90°
Blade cutting angle28° — 70°
Circle reversing rotation360°
Moldboard width X height4920× 787mm
Moldboard width X height4920× 787mm
|
GR300 |
|
Basic specification |
|
|
Engine model |
QSL9 |
|
Rated power/speed |
224kW/2100rpm |
|
Dimension(LxWxH) |
10500×3100×3550mm |
|
Operating weight(Standard) |
26000kg |
|
Performance specification |
|
|
Travelling speed ,forward |
5\8\11\19\23\40 km/h |
|
Travelling speed ,reverse |
5\11\23 km/h |
|
Tractive force(f=0.75) |
140KN |
|
Max. gradeability |
30% |
|
Tire inflation pressure |
350 kPa |
|
Working hydraulic pressure |
16 MPa |
|
Transmission pressure |
1.3~1.8MP |
|
Operating specification |
|
|
Max. steering angle of front wheels |
±50° |
|
Max. lean angle of front wheels |
±17° |
|
Max. oscillation angle of front axle |
±15° |
|
Max. oscillation angle of balance box |
15 |
|
Frame articulation angle |
±27° |
|
Min. turning radius using articulation |
8.0m |
|
Biade |
|
|
Maximum lift above ground |
450mm |
|
Maximum depth of cutting |
500mm |
|
Maximum blade position angle |
90° |
|
Blade cutting angle |
28°_70° |
|
Circle reversing rotation |
360° |
|
Moldboard width X height |
4920×787mm |
