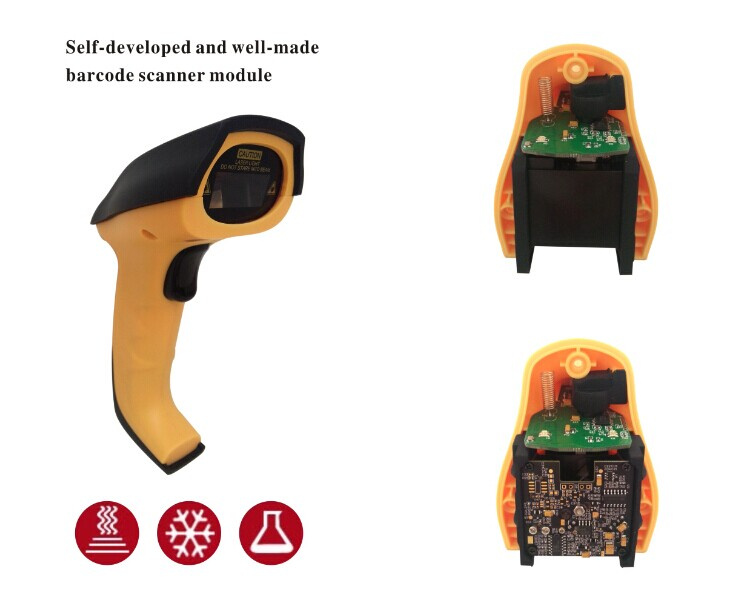

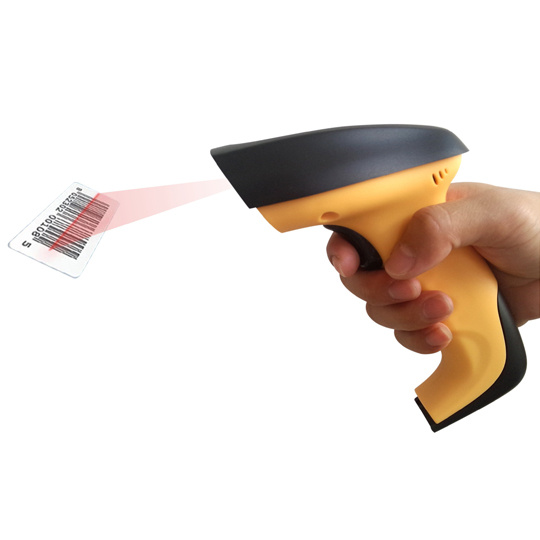

Good Quality Laser Bar Code Reader,Barcode Scanner
Features:1. Stronger decode capability 32 bit: upgrade to 32-bit Decoder, plug-and-play allow novice and advanced users to process items more rapidly and spend less time keying in data.
2. Resistance to 6 ft./ 1.8m drops and IP54: the ability to survive 6 ft./ 1.8m drops to concrete - and IP54 sealing, ensuring reliable operation in spite of everyday spills, drops and bumps.
3. Long range of scanning distance 1.8m: Advanced high-performance laser engine, reliable transmission.
4. Optional stand for hands-free scanning:automatic scanning whether it is used in hands or with the optional hands free stand.
5. Plug and play,support output editor.Specifications:1. Model: TS2400H
2. Resolution: 3mil
3. IP54 for industrial use
4. Interface: Support USB, PS/2, RS232
5. CPU: 32 bit decoder inside
6. Scanning speed: 200 scans/s, high speed scanner
7. With dynamic and fuzzy technology: Poorly printed and damaged barcodes can be easily readed.
Package contents:1 * Laser barcode scanner
1 * USB cable
1 * User manual
| Model: TS2400H |
| Functionality Item | Performance Parameter |
| Sealing | IP54 (water and dust resistant) |
| Resolution | 0.08mm(3mil) |
| Type of illuminant | 650nm laser |
| Safety performance | Meet the Grade II National Criteria for Laser Safety |
| Use type | Hand-held or bracket-held installation |
| Alert Mode | Indicator and Buzzer |
| Reading speed | 200 times/second |
| Bit error rate (BER) | 1/5 million |
| Barcode types | UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,Codabar, Code 128,Code 93,Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code,GS1 Data Bar (formerly RSS) etc. |

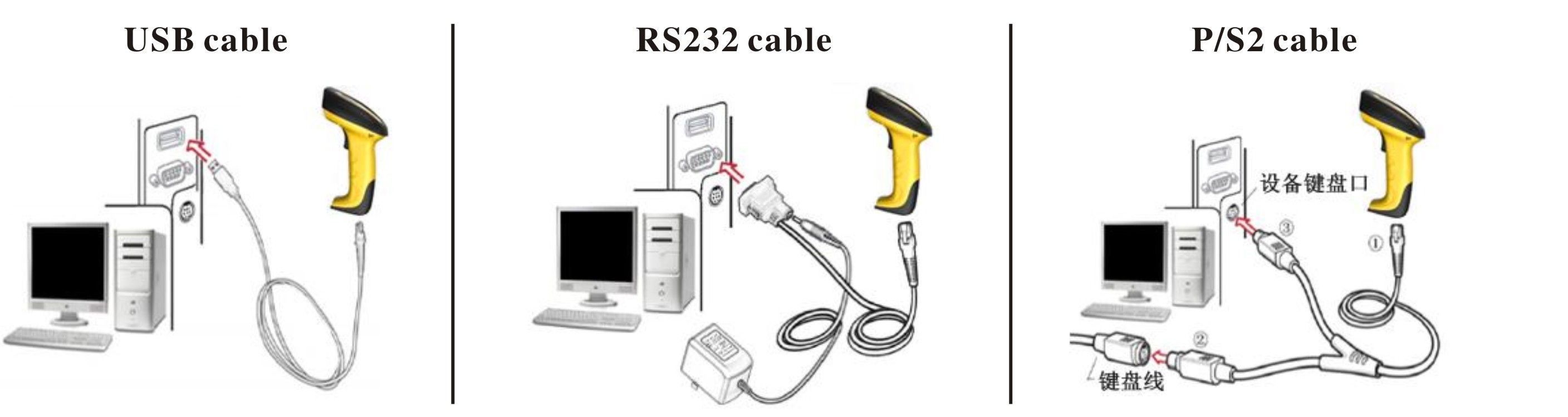

| Supported interfaces | USB, RS232, PS2 keyboard, USB-COM |
| Scanning method | Manual, Continuous Scanning |
| Print Contrast | 20% minimum reflective difference |
| Reading angle of elevation | 60° |
| Reading angle of dip | 45° |
| Operating temperature | 0°C - 45°C |
| Storage temperature | -40°C - 60°C |
| Relative Humidity | 5% - 90% (non condensing) |
| Power voltage | DC 5V±5% |
| Current | 25mA(Operating mode),90mA(Maximum peak) |
| Materials | ABS+PC/TPU |
| Shock | 1.8m drop on concrete surface |
| Light intensity | Daylight 4000Lux max |
| Ambient Light Immunity | Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight |
Located in core area of Guangzhou Science City, Guangzhou Ticode Electronics Technology Ltd is a executive enterprise of the government's science projects and it is a high-tech enterprise that specializes in R&D and manufacturing barcode identification equipment.
Born in South China University of Technology, Ticode is well known for its leading technology. It has a highly educated and professional team engaged in hardware design, software development and system integration. And Ticode is the one of the first companies to start and develop in the field of 32-bit decoder and dynamic fuzzy decoding technology in China. The patented designs enable Ticode as a barcode application pioneer with performance vantages in the barcode identification industry.
In pursuit of reliable and stable quality, Ticode has perfect management and strict quality control. Certificated by CE, FCC and RoHS its products are widely used in industry, commerce, taxation, national defense, transportation, finance, health care and postal sectors, while the products are exported to Europe, America, South Africa, Australia, MID-east and South-east Asia etc. Up to now, its annual production capability of barcode scanners has reached up to 300, 000PCS.
In near future, Ticode would establish it as a world-class professional barcode scanning equipment manufacturer and hope to have win-win trade with customers.
