Product Specifications
Prod Model: |
DA-2100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
128mm;95mm;23mm |
Weight: |
0.2kg |
Installation: |
Magnet Contact |
Frequence: |
850MHz / 900MHz / 1800MHz / 1900MHz |
Application: |
Industry |
Certification: |
CE |
Usage: |
Work with Alarm Panel |
Product Description

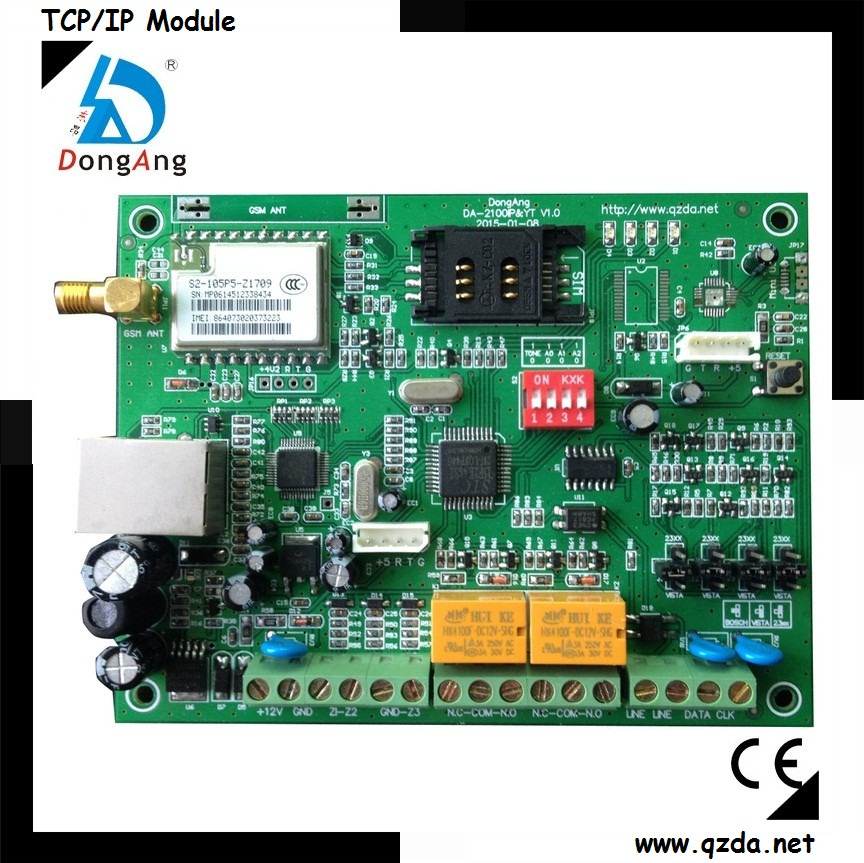

GPRS&LAN/WAN Module for Alarm System (DA-2100)
1.TCP/IP based, can communicate with RINGTIP terminal of alarm panel and transmit alarm and system
information through GPRS or LAN/WAN network to CMS software(Programmable for GPRS alarm first and LAN/WAN as backup or reverse or both)
2.The alarm panel must support standard ADEMCO 4+2 & Contact ID protocol.
3.Two IP address and two user account, can report to two different CMS.(Fixed IP or domain name are optional)
4. With telephone line fault monitoring function, can report to CMS.
5. With 3 extension zones and 2 relay which can be controlled by CMS software.
6. Can storage and inquiry 180 alarm records.
7. Working voltage 12V/DC
8.Can support PPPoE dial-up or DHCP auto dispatch or fixed IP address, when choosing LAN/WAN network.
Installation | Magnet contact |
Working voltage | DC12V ±10% |
Standby current | <60mA |
Working current | <80mA |
Temperature range | -10°C~55°C |
Humidity range | 45%-95% relative |
Atmospheric preasure | (86-106)kpa |
Our main products including TCP/IP alarm system, GPRS alarm control panel, GPRS alarm extension module, boardband alarm extension module, GSM alarm panel, wireless alarm panel, voice dialer, GSM / PSTN dual-network
burglar alarm system, telephone based burglar alarm system, Center Monitoring Station,PIR sensor, door magnet, siren and etc.
As a manufacturer, Fujian Quanzhou Dong Ang Electronics Co., Ltd. is
specializing in security alarm systems, burglar alarm systems, anti-theft alarm systems and accessories. She`s a medium high-tech enterprise which
contained researching, manufacturing and marketing.
Fujian Quanzhou Dong Ang Electronics Co., Ltd. is a manufacturer specializing in burglar alarm system and ancillary products for import alarm systems, which is a medium-size high-tech enterprise integrated research and development team, design team, production team, and sales department.
We own a great high-tech team which including capable managers and leading-edge technical staffs and researchers. With more than 20 professional engineers and technician' S common effort, our new products always occupied good market and gained good reputation. We all are trained to trace the strict quality control system, take "begin with customer' S demand, success in their satisfaction" belief as our aim, and we always adhere to "survive as sound quality, develop with good integrity" principle. With all staffs' Common effort and engineers' Braveness to pursue innovation, and strong exploration desire, we developed LAN/GPRS communication modules, GSM/CDMA communication modules, various voice auto dialers, GSM/PSTN dual-network alarm systems, telephone network alarm systems, and alarm center monitoring station, as well as multi-function alarm products to meet market demand.
We dedicated to provide users with advanced technology and the best after-sales service, as well as perfect sales systems, to get progress with customers every day.
