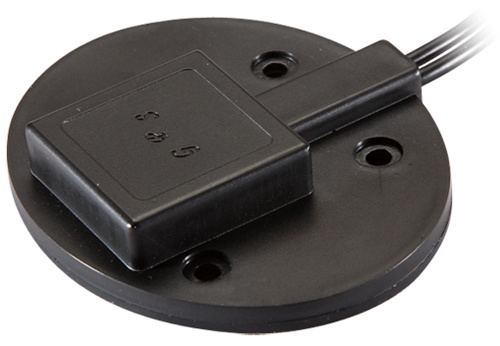

Product Specifications
| Prod Model: |
GA-GPS/GSM-09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Car Antenna |
Product Description
SPECIFICATION
Size: 77x66x14mm
Dieletric Antenna
Center Frequency 1575.42 MHz± 3 MHz
V. S. W. R 1.5: 1
Band Width ± 5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA
GSM Part
Frequency 824~894MHz/1710~1990MHz
880~960MHz/1710~1990MHz
V. S. W. R 2.0: 1
Impendence 50 ohm
Typical Gain 2dBi
Cable RG174 3m/5m or others
Connector SMA/SMB/MCX or others
Working Temp -40'c~+85'c
Humidity 55%~75%RH
Waterproof IP67
Guangzhou G-Antetech Telecom Antenna Factory is a high-tech company in Guangzhou Province. It locates on Guangdong-Hongkong Economy and Development zone. The company is professionally engaged in R$D, designing, manufacturing and selling GPS glonal position Products.
Main products: GPS Antennas, GPS/GSM antennas, GSM antennas, GPS/GSM/WiFi Antennas, GPS/GSM/FM/AM Antennas, GPS/WiFi Antennas, GPS/FM/AM Antennas, WiFi Antennas, XM Antenna, TMC Antenna, 4G LTE Antenna, RF Connector and all kinds of RF Cables.
Company has his own several patents. Antenna serial products acquire New and high technology Prize in Guangdong Province. And win National New product creation Fund. The corporation has passed ISO9001: 2000 Certificate. The products pass CE certificate and in compliant with RoHS directive. It is one of the professional manufacturers in high frequency antenna field.
