Product Specifications
Prod Model: |
JT600B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
GPS Tracker & Web Tracking Software |
Model No: |
Jt600c |
Size: |
109*60*34mm |
Housing Material: |
Engineering Plastics |
Working Temperature: |
-25-65c |
Capacity Of Battery: |
3300mAh |
Warrenty: |
2 Years |
Type: |
GPS Tracker |
Use: |
Hand Held |
Screen Size: |
None |
Brand: |
Jointech |
Certification: |
ISO9001, CE, FCC, RoHS |
Product Description

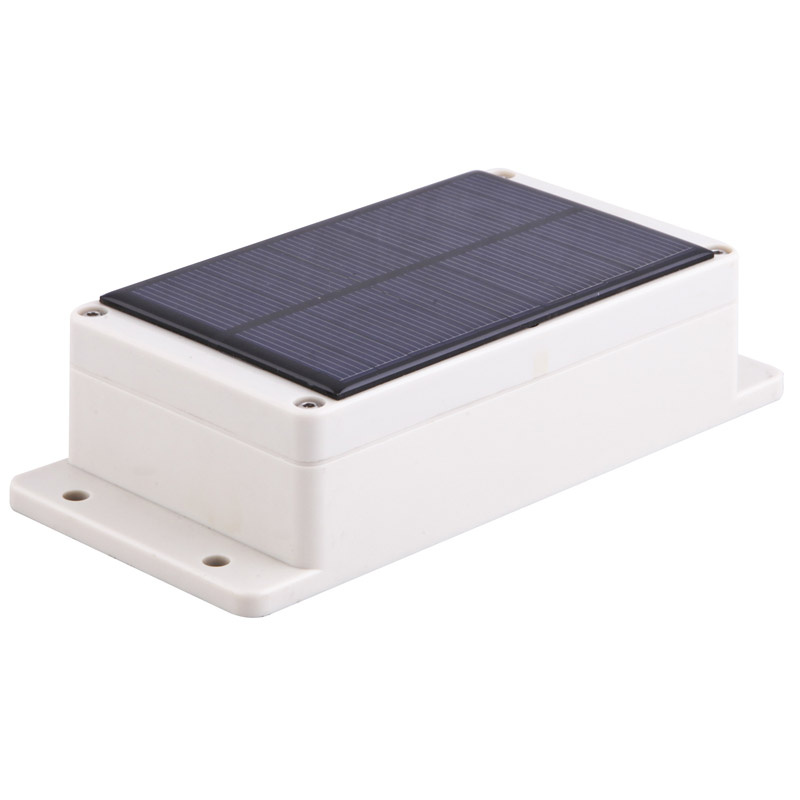

Item:
GPS tracker & web tracking software for mobile asset managementProducts features:1. two working modes. standby mode and mormal working mode.
2. Three ways to make the terminal switch from standby to normal working mode: RTC timer, Vibration, and SMS.
3.Power short-circuit protection.There is a self-resettable fuse designed in the power input and the fuse will be cut off when it's under short-circuit.
Parameters:Chipset | SiRF Start III |
Frequency | L1,1575.42MHz |
Protocol | NMEA-0183 V2.2 |
Available Baud Rate | 4800,9600-57600 bps adjustable |
Accuracy | 1).Position: 10.0m 2D RMS, 5m, 2DRMS,WAAS enabled 2).Velocity: 0.1m/s 3).Timing: 1us synchronized to GPS time |
Low power | Acquisition 25 mA ,Tracking 18 mA |
Frequency bands | SIM900 Quad-band: GMS 850, EGSM 900, DCS 1800, PCS 1900. The band can be set by AT COMMAND, and default band is EGSM 900 and DCS 1800. Compliant to GSM Phase 2/2+. |
Transmit power | Class 4(2W) at EGSM900 and GSM850 Class 1(1W) at DCS1800 and PCS 1900 |
Timer function | Programmable via AT command |
Firmware upgrade | Firmware upgradeable over serial interface |
