Product Specifications
Prod Model: |
VFFS-YH011 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Weight: |
600kg |
Automatic Grade: |
Automatic |
Material Type: |
Grain |
Driven Type: |
Pneumatic |
Packaging Material: |
Paper |
Applicable Industry: |
Food |
Packaging Type: |
Bag |
Application: |
Seeds, Food, Chemicals |
Product Description

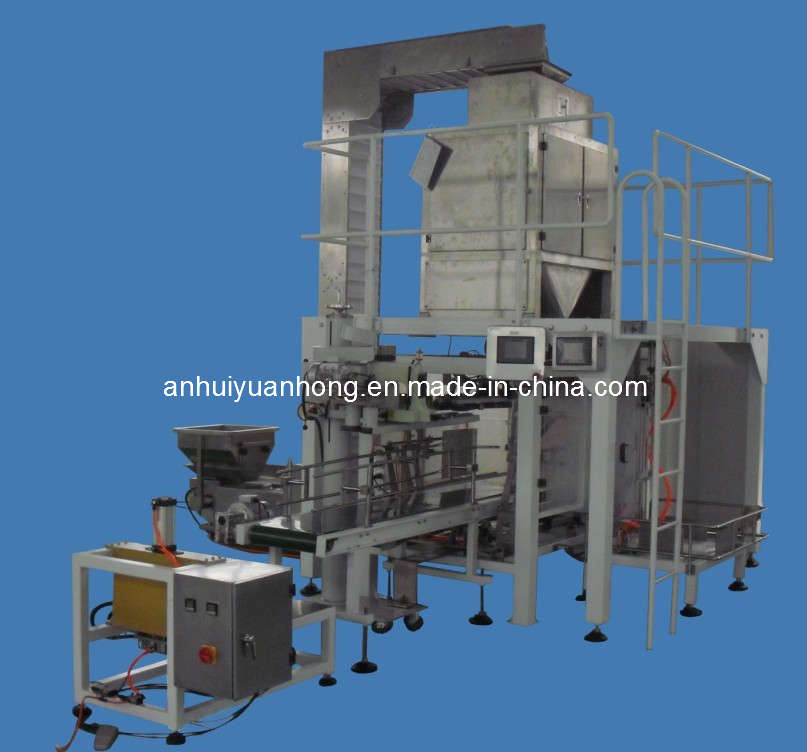

Packaging machinery Scope of application:
Chemical industry, feed, grain etc. Fields, large bag packaging for granule. Packing machine
Function feature:
1. Automatic weighing, automatic bag giving, automatic bag sewing, do without manual operation. Automatic packaging machinery
2. When using woven bag, equipment coordinating with sewing machine; When using complex film bag, equipment coordinating with continuous System hot sealing machine, in order to meet different demands. Packaging machine
3. Touch screen controling, human-computer interface is well.
Technology Parameters:
1. Packaging material: Prefabricated woven bag(lined with PP/PE film); Complex film bag
2. Bag size: (700~750mm)*(400~450mm)
3. Measuring range: 10~30 kg
4. Packaging rate: 4~6 bags /min. (related with packing material, bag size )
5. Ambient temperature: -10C~+45C
6. Air supply: Compressed air 0.5~0.7Mpa
7. Power supply: AC380V 50Hz
8. Power: 4.0KW
9. External dimensions: 4300*3500*3700mm(L*W*H)
packing range |
10-50kg/bag |
packing speed |
4-12bags. min |
