Graphite Reinforced Composite Sheet (lined with stainless steel wire mesh)

Graphite Reinforced Composite Sheet (lined with stainless steel wire mesh)
Price: US $ 8.8/Square Meter
Trade Terms: FOB
Min Order: 1000/Square Meter
Pay Type: T/T

Product Specifications

Prod Model: IG-005
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Width: 500~1200mm
Length: 500~1500mm
Thickness: 0.5~3.0mm
Colour: Black
Standard: Nonstandard
Usage: Transmission
Material: Graphite

Product Description

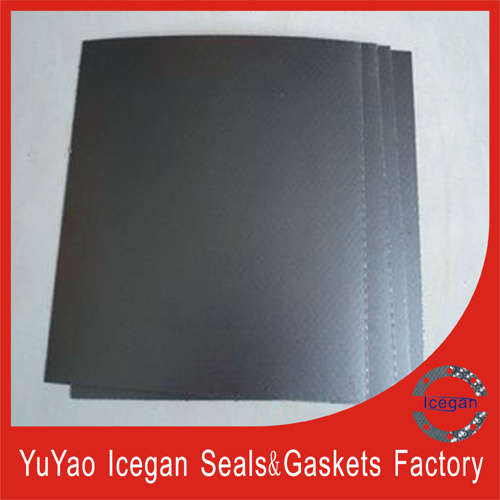

Graphite reinforced composite sheet (lined with stainless steel wire mesh)

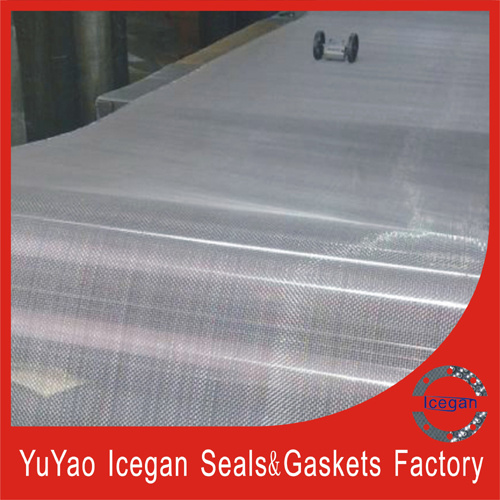

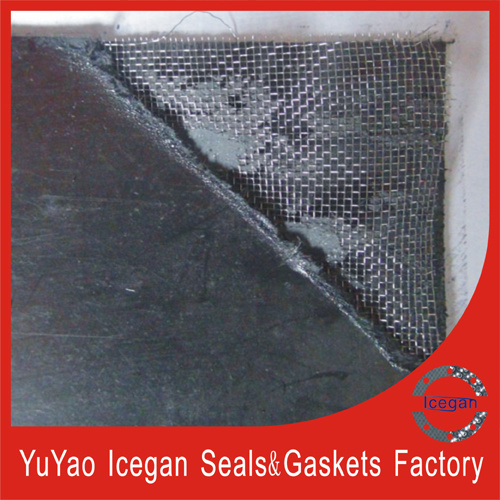

Graphite reinforced composite panels for the graphite plate and stainless steel wire mesh after rolling adhesive composite forming, basic structure is:Graphite plate + stainless steel wire mesh (304 l, 316 l) + graphite plate.
Graphite reinforced composite sheet with super seal effect, high temperature resistance, corrosion resistance, long service life and environmental protection, etc.Mainly used in the manufacture of all kinds of sealing gaskets, such as automobile engine with cylinder pad, chemical pipe with flange gasket sealing gasket and a variety of mechanical joints.At the same time has good lubricity, non-stick cylinder, easy to repair replacement characteristics.

Quick Details

Place of Origin:Ningbo, China (Mainland)
Brand Name:ICEGAN
Model Number:IG-005
Material:Graphite with inside Stainless steel wire mesh,graphite and Stainless steel wire meshl
Shape:Flat Gasket
Standard or Nonstandard:Standard
Type:Graphite Gasket Sheet

The performance parameters
Density:1.3 to 1.5 g/cm after
Compression ratio:30% 40%
Resilient rate:15% 30%
Permeability (cm3 / min) :0.8 or less
Pressure (N/was) :48 or higher
Temperature:- 200-650 ºC
Regular size:
500 * 500 mm, 500 * 1000 mm, 1000 * 1000 mm
Thickness:
1.0 mm and 1.2 mm, 1.5 mm, 2.0 mm
Other size can produce according to customer's need
Packaging & Delivery
Packaging Details:1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.
Delivery Detail:15-30 days after received your deposit

We,YuYao IceGan Seals & Gaskets Factory specialize in manufacturing and exporting of cylinder head gaskets materials and metal anchors.We have the advanced design team and morden production line together.
Gasket material include:Reinforced graphite materials for the cylinder head gaskets;Graphite gasket filler materials,reinforced asbestos and non-asbestos gasket sheet,reinforced graphite gasket,compressed non-asbestos fiber gasket sheet,pure cooper gaskets,non-asbestos gasketing paper/latex sheet,PTFE/Teflon sealing material;Asbestos tape/cloth;Glass fiber tape/cloth;Gland packing and Sprial Wound Gaskets etc..
YuYao IceGan Seals & Gaskets Factory
Add:XunQiao,LuCheng Village,DiTang Str.YuYao City,Ningbo,Zhejiang,China.315490
Http://www.Icegan.Com

Tel:0086-574-81391083
Fax:0086-574-62265652
We, YuYao IceGan Seals & Gaskets Factory specialize in manufacturing and exporting of cylinder head gaskets materials and metal anchors. We have the advanced design team and modern production line together.

Gasket material include: Reinforced graphite materials for the cylinder head gaskets; Graphite gasket filler materials, reinforced asbestos and non-asbestos gasket sheet, reinforced graphite gasket, compressed non-asbestos fiber gasket sheet, pure cooper gaskets, non-asbestos gasketing paper/latex sheet, PTFE/Teflon sealing material; Asbestos tape/cloth; Glass fiber tape/cloth; Gland packing and Sprial Wood Gaskets etc.

Metal stamping parts include: Hollow wall anchor, hammer steel anchor with plasterboard, Hammer nail anchor, key-shaped ceiling anchor etc. We also have the ability to develop and make the special products according to the customer's requirements and drawing.

Our factory is located in the south of HangZhou Bay which is very near to Ningbo Port and Shanghai Port. All the convenient conditions offer the prompt delivery.

All the IceGan people heartily welcome your visiting and cooperation for mutual interests.
