Product Specifications
| Prod Model: |
CTP-002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Ceramic Packing |
| Size: |
as Customer's Requirement |
| Material: |
Ceramic |
| Structure Feature: |
Saddle Ring Filler |
| Type: |
Structured Packing |
| Usage: |
Chemical Industry Product |
| Effect: |
Reducing Shrinkage |
| Source: |
Particle |
| Packing: |
With Valve Bags |
Product Description

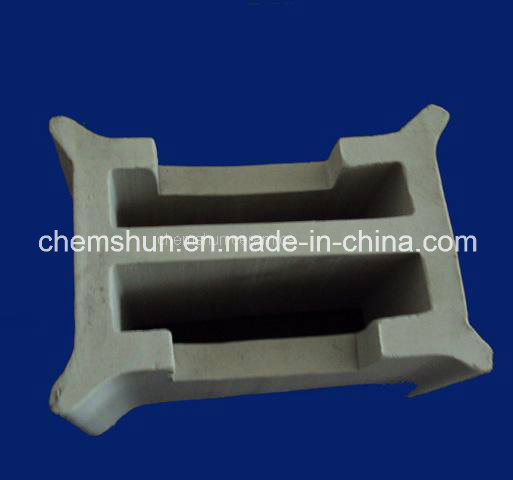

Grating ceramic packing
-ceramic beam and grill
The bearing structure is combined by beam strips and grids with the following main features: The comprehensive porosity is as high as over 58%. It can satisfy the requirement of high gas velocity at 1.5-2m/s. The product is low in manufacturing cost and easy to produce. Only slight change can be brought to renovate an old plant to meet the design requirements. It is very easy to maintain and repair the bearing structure. We can produce various beam strips with widths not smaller than 40mm, heights not greater than 260mm and lengths not greater than 2000mm and containing 75% of AL2O3. In addition, various grids with widths and lengths not greater than 220mm can be produced according to user requirement.
In 2002, Pingxiang chemshun ceramics co., ltd made her first step to become the "best manufacturer" for Alumina Ceramic product with the company faith saying" reputation, innovation, happy, share and grow"
Today pingxiang chemshun ceramic Co., ltd is one of leader company in the area of Alumina Ceramic Product in south china, thanks to its automated mechanism and quality control systems, it has greatly increased the production capacity, now the annual capacity is up to 10, 000ton, and 70 people are working include 3 person for research and 5 technician for production, we have been supplying the product with excellent quality not only in domestic market, but also overseas market— U. S. A, European, middle east, south American and east-south Asia etc
Now" reputation, innovation, happy, share and grow"are still our sole faith, with it, we will continue to supply the product with better quality and excellent service for the customers in the world
Thank for your consistent interest and support.
Item |
Unit |
data |
Standard |
Bulk density |
G/m 3 |
2.21-2.24 |
HG/T3210-1986 |
Aperture ratio |
% |
9.3-10.5 |
HG/T3210-1986 |
Water adsorptivity |
% |
4.2-4.7 |
GB/T8488-2001 |
Thermal shock resistance |
950-20°C |
not crackle after 10 times after sudden change in temperature |
GB/T8488-2001 |
Elastic moduli |
Mpa |
2138 |
DIN |
Compression strength |
Mpa |
100 |
JC424-91 |
Thermal conductivity |
W/m.k |
1.175 |
DIN |
Expansion coefficient |
1/°C |
3.2×10 -2 |
DIN |
Expansion rate |
% |
0.31 |
DIN |
Acid-resistance rate |
% |
≥99.7 |
GB/T8488-2001 |
Pingxiang Chemshun ceramics Co., Ltd is a professional manufacturer of 95% & 92% Al2O3 alumina wear ceramic products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:
1) 95% Al2O3 Alumina wear resistant product and high quality grinding media.
(we also can supply the Al2O3: 92% products according to detailed requirement):
Wear resistance Ceramic liner, alumina plaiin tile, ceramic weldable plate, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.
2)High quality Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.
Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
