Gdigger is an excellent manufacturer of 1-500kW inverter. To help developers realize their project goal, we developed a holistic prospective and implementation approach to ensure the highest return on your investment. Unlike other rivals who usually copy the technology of the industry top suppliers, most of our products have exclusive intellectual property rights, so we can help reduce the cost effectively, from the initial product design stage, through the option of components, to the design of the whole system, also, the consideration of labor cost in solar system installation, monitoring, and maintainence.
In a word, we are in charge during the whole system operational lifetime. Do you want to go solar power generation and start producing your own clean, cheap, renewable power straight from the sun?
Your decision makers can fully count on Gdigger, just start here.
If you want to know more further question welcome to contact me in email
Product Description

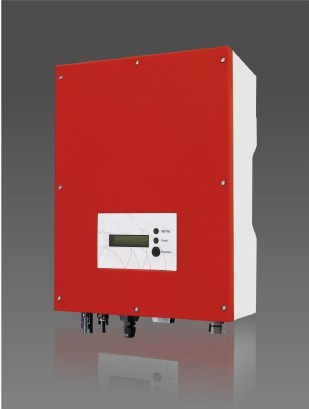

EPV series grid tie inverter is a special type of inverter that converts direct current(DC) electricity into alternating current(AC) electricity and feeds it into an existing electrical grid.
KEY FEATURES:
(1)Adopting the latest effective model from Infineon
(2)Advanced MPPT automated tracking technical
(3)Multiple communication via RS232, RS485/USB (Optional)
(4)Multilingual LCD, easy to operate
(5)Parallel running mode with a string of inverters
(6)Protection for overvoltage, islanding, overload, overheating, etc.
(7)Modern appearance, small size, light weight
(8)Plug input and output waterproof connector, easy to install and maintain
Same Products & FAQ
FAQ:
1. We use the payment was T/T advance.
2. Our on-grid inverter can not Connects the generator, and also can not work without grid power.
3. Our off inverter can work without grid power.
4. We can not provide the Wind&solar hybrid Inverters at present.
5. That was very important we can not povide the 110V inverter, please kindly note your Local grid voltage, and kindly told me the Technical Parameters you need.
|
EPV5.0K Grid _ tied Inverter Technical Data |
|
1.Input (DC) |
|
Max. DC power [W]:5200 |
Max. DC voltage [V] :550 |
|
Max. input Current [A]:26 |
Number of MPP trackers / Strings per MPP tracker :1/2 |
|
MPPT voltage range (at rated power) [V] :220-500 |
Shutdown voltage / Start voltage [V] :700-100 |
|
2.Output (AC) |
|
AC nominal power[W]:4600 |
Max. AC power [W]:5000 |
|
Max. AC current [A]:24 |
Nominal AC voltage range[ V]:230 / 180~270* |
|
AC grid frequency/ range[Hz]:50 / 47~52* |
Power factor (cosφ):1 |
|
Total harmonic distortion (THD) (at nominal power):<3% |
|
*Detailed parameter please see local |
|
3.Efficiency, Safety and Protection |
|
Euro_efficiency:96.8% |
Max.efficiency:97.3% |
|
MPPT efficiency:99.9% |
|
|
Safety & Protection |
|
4.General Data |
|
Dimension(W/H/D)[mm]: 329 / 433 / 180 |
Weight [kg]: 19.4 |
|
Cooling concept : Fan |
Noise (typical) [dB] :<40 |
Operating temperature range [°C]:
_20 °C ~ +60 (derating at 45 °C) |
Degree of protection:IP65 |
|
Topology :Transformerless |
Internal consum-ption( night )[W]:0 |
|
LCD display:Backlight,16*2 character LCD |
Communication interfaces:RS485 / RS232 |
|
Standard warranty :3 Years |
WENZHOU GDIGGER ENERGY ENGINEERING Co., Ltd. Located in Wenzhou, the area of head office is 45, 000 square meters, which is a professional manufacturer specializing in Pressure Vessels, Storage Tanks, LPG Spherical Tanks, LPG Tanks, and various quality ball valves, gate valves, check valves, globe valves and valve accessories. Our diverse products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.
We supply Storage Tank and Spherical Tank on any projects for different medium (LPG, LNG, Oxygen, Nitrogen, Natural Gas, Hydrogen, Liquefied Gas, etc). Cubage dimension from 5m³ To 10000 m³ With experienced installation teams for your tanks if need. GDIGGER provides an in-depth knowledge and widespread International experience from design, supply, construction, Installation & training of EPC Projects. Our products are used for handling a wide variety of applications in gas, oil, refining, chemical, shipbuilding, power generation and pipeline transmission industries.
In order to provide satisfactory products to the customs, we emphasize on our quality control to meet the customer's specification and requirements. We utilize modern CNC lathes and machining centers, precision grinders and a full complement of manual lathes and mills to produce high quality parts.
GDIGGER products are made in accordance with ISO, ANSI, API, ASME and other international standards. With qualifications of specialized contracting and Grade I of installation of steel structure, and qualified as Grade A2 and A3 of special equipment. We obtained some important international authentication certificates such as NK, BV, and ASME. Meanwhile we have been awarded U Stamp and U2 Stamp of ASME authentication as well as the NB Stamp of America Boiler and Pressure Vessel Supervisory Commission. Our main focus is on offering outstanding products to our customers and sticking to timely delivery schedules with top quality and competitive prices, which will be your reliable partner.
GDIGGER is your one stop solution partner on oil and gas industry. We welcome valuable customers to visit our company.
