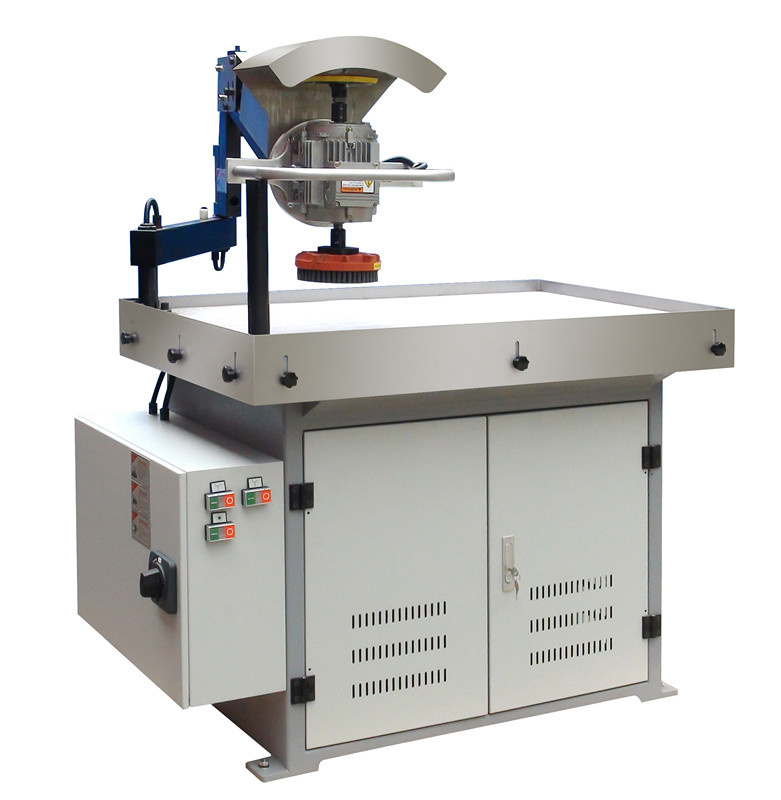

Instruction of deburring machine
Model: SD-H
Machine features
* High quality deburring designed for factories those have no large quantity work pieces.
Pneumatic levitation type deburring head, ease and effective deburring pressure control by finger.
Self-control type vacuum table and automatic vacuum pressure
Work piece can be fixed on the vacuum table without extra fixtures.
High effective dust extraction system used for collecting the grains and dust.
Two deburring heads(rough and fine grit) share same power, 90° / 180° Freely turning.
Heads replacement can be within 2 seconds, high effective.
Patent brush replacement technology within 10 seconds, high effective.
Simple installation, integral design
If there is some work pieces' size bigger than said working size, you still can process within the cantilever working range
Vacuum table size(mm) 1200X800
Cantilever working range 1500mmX360deg;
Max. Working sizeOn table (mm)
1160X780 Max. Working size (mm) 1500X1500
Working thickness(mm) 1-200
Deburring head power(KW) 0.75
QTY of deburring heads 2
Vacuum capacity KG/hole 0.8
Dustextraction capacity (M3/h) 1000
Total power (KW) 4.05
Dimension (mm) 1200X1000X1500
Weight (T) 0.4
