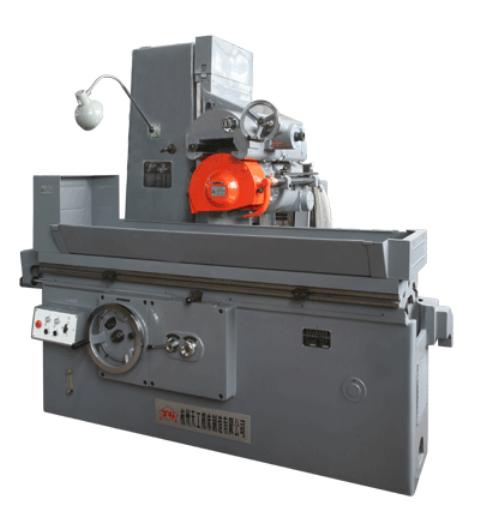

M7130H Grinding Machine
It adopts edge of grindstones to grind and cut, and can treat various workpieces made out of steel, cast iron and nonferrous metal. It is suitable for various machinery processing workshops and machine repair workshops.
Features:
*Table longitudinal movement and head cross feed both adopting hydraulic system; Cross feed can be manual mode.
*Vertical feed adopting manual mode; Grinder wheel adopting built- in motors
*Heat distortion control system
Specifications:
1. Worktable:
Dimension of Worktable(WxL)mm: 300x100
Maximum Grinding Dimension(MxLxH)/mm: 300*100*400
Longitudinal Traverse of Table(Hydraulic)/mm: 200--1100
Speed of Worktable(Stepless) m/min: 3-27
Number of T-shape Slot*Width on Worktable: 3x18
Load of Worktable/kg: 468
2. Grinding Wheel Head:
Distance from the Centre of Grinding Wheel Head per Travel (mm/): 135-575
Ntermittent Cross Feed of Wheel Head per Travel (mm/): 3-30
Rotate Speed of Grinding Wheel Spindle/rpm: 1440
Dial Value of Vertical Feed Hand wheel/mm: 0.01
Wheel Head Feed Per Rotation of Hand wheel(Vertical Feed/mm): 1.29
(Cross Feed/mm): 8
Grinding wheel size(O. DxW. XI. D)/mm: (270-350)x40x127
3. Motor Power:
Total Power of Motor/kw: 7.62
Motor Power of Grinding Wheel Head/kw: 4.5
4. Work Slot:
Parallelism of Work piece Surface to Base level/mm: 300: 0.005
Surface Roughness/um: Ra0.63
5. Weight of Machine Tool:
Net Weight/kg: 3500
Gross Weight/kg: 5000
6. Overall Dimensions(LxWxH)/mm: 2600x1700x2400
Standard Attachments:
Electromagnetic Chuck: 1pc
Wheel Dresser(without Diamond Grinding Wheel Blade): 1set
Wheel Balancing Arbor: 1pc
Tc-1)Demagnetizer(Tc-1): 1set
Standard Attachments(at extra cost):
Wheel Balancing Device: 1set
Diamond Grinding Wheel Blade: 1pc
Grinding Wheel Chuck: 1set
ZPQ150)Sinusoid Parallel-jaw Vice(ZPQ150): 1set
Balance Weight: 1pc
Machine Tool Vibration Control Sets: 1pc
Wheel Dresser on Saddle (without Diamond Grinding Wheel Blade: 1suit
