Product Specifications
| Prod Model: |
XY-SR21 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Axis: |
4 |
| Usage: |
Packaging of Goods |
| Packaging Material: |
Bamboo, Wood |
| Packaging Type: |
Cartons |
| Driven Type: |
Pneumatic |
| Application: |
Bag/Carton |
| Soft And Hardness: |
Flexible Package |
| Packaging Technology: |
Palletizing |
Product Description
professional/high efficiency/good quality palletizing robot gripper
We are China biggest palletizing robot manufacturer,can produce palleting robot gripper for you according to your detailed requirement.

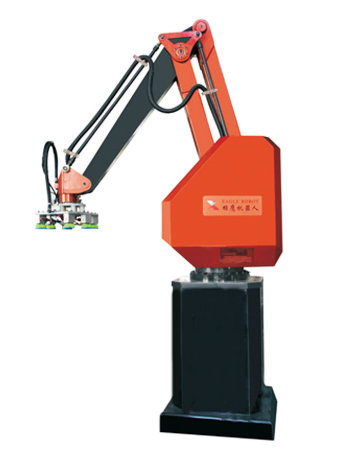

We are pleased to introduce our XY Series Palletizing Robot. Our XY series high-speed automatic palletizing robot can be widely used in industries of oil, grain, food, feed, chemical industry, wine, beverage, printing ect. The benefits of a robotic palletizer to your company are numerous, not only in speed, but handling, labor, cost, and flexibility. Whatever product you palletize, bags, cartons, or cases, our robotic palletizers can put you ahead of the competition with the right palletizing equipment for your needs.
BENEFITS OF PALLETIZING ROBOT
Safer for workers
Higher production rates
Optimization of warehouse space
Greater quality and stability of full pallet loads
Quick payback on investment (savings on labor)
Minimal downtimes (maintenance, changeovers, repairs)
Greater competitiveness for your product in the market place
More consistent production rates
Low power consumption
PLC controller, easy to use
TECHNICAL PARAMETERS:
Model No.: XY-SR-210
Drive: AC servo motor drive
Installation: On floor
Max. Palletizing Weight(contains weight of gripper): 210kg
Handing Capacity: 900Times/Hour
Movement Axis: Normally 4 axis: A, B, C, D (can be 6 axis)
Movement Scope
A-Axis(Horizontal): 1500mm
B-Axis(Vertical) 2100mm: 2300mm
C-Axis(Body): 330
D-Axis(Gripper): 330

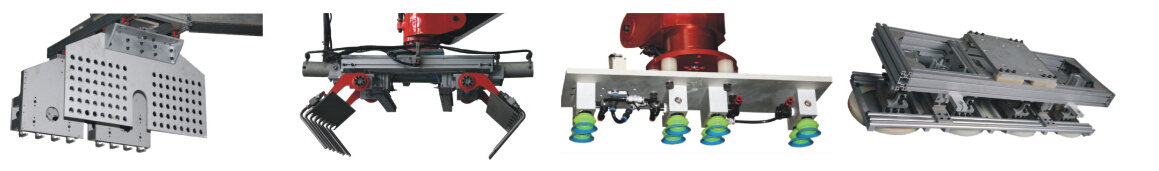

Optional Gripper: Pallet, Finger, Sucker and so on
Palletizing Memory Ability: Normally 30kinds(the most can be 400kinds)
Teaching Method: Manual teaching/teaching support/teaching cancel(optional)
Power(200V 3pH 50Hz): 6.5kVA
Compressed Air: 0.5Mpa
Robot Weight(not contain gripper): 1150kg (+/-10%)
Main electrical components
| No | Parts name | Model | QTY | Supplier | Note |
| 1 | A axis servo motor | MSME152G1H | 1 | Panasonic | Japan |
| 2 | B axis servo motor | MDME402G1H | 1 | Panasonic | Japan |
| 3 | C axis servo motor | MDME402G1H | 1 | Panasonic | Japan |
| 4 | D axis servo motor | MSMD042G1U | 1 | Panasonic | Japan |
| 5 | A axis servo amplifier | MDDHT5540 | 1 | Panasonic | Japan |
| 6 | B axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
| 7 | C axis servo amplifier | MFDHTB3A2 | 1 | Panasonic | Japan |
| 8 | D axis servo amplifier | MBDHT2510 | 1 | Panasonic | Japan |
| 9 | A axis synchronous belt | OMEGA HP B25 | 1 | OPTIBELT | Germany |
| 10 | B axis synchronous belt | OMEGA HP B25 | 1 | OPTIBELT | Germany |
| 11 | C axis synchronous belt | OMEGA HP B15 | 1 | OPTIBELT | Germany |
| 12 | B axis screw | R50*20-S | 1 | HIWIN | Taiwan |
| 13 | C axis screw | R45*12-S | 1 | HIWIN | Taiwan |
| 14 | B axis slider, guild rail | SNS35LR2SSC1-840 | 2 | THK | Japan |
| 15 | C axis slider, guild rail | SNS35LR2SSC1-600 | 2 | THK | Japan |
| 16 | A axis reducer | FC-A75-69 | 1 | Sumitomo | Japan |
| 17 | D axis reducer | F2C-T155 | 1 | Sumitomo | Japan |
| 18 | Controller | / | 1 | ADI | America |
| 19 | Touch screen | GP2301H | 1 | Pro-face | Japan |
| 20 | Regenerative resistor | RXLG500~1000 | 4 | JIAYINGDA | |
| 21 | Limit switch | SL1-AK | 5 | AZBIL | Japan |
| 22 | Optoelectronic switch | E3Z-D82 | 5 | Omron | Japan |
| 23 | Solenoid valve | SY5120/7120 | 2 | SMC | Japan |
| 24 | Press-bag cylinder | MGPM25 | 2 | SMC | Japan |
| 25 | Hand grab cylinder | CG1BN63 | 4 | SMC | Japan |
| 26 | Bearing | /// | 6 | SKF | Switzerland |
We provide best packaging suitable for sea shipping
1, All goods are packed in wooden box.
2, Our engineers are available to service machinery overseas to help customers to solve machine problems.
We Promise Customer Perfect Guarantee and After-Service:
As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The guarantee declines in the case the customer proceeds, without proper consent, to the replacement, modification, or repair of parts.The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.
Contact: Alice Wang Mob: 008613965033216
Welcome to visit our fatory !
Hefei eagle automation engineering technology Co., Ltd., a high-tech enterprise, with the ability of independent innovation as core competitiveness, is a modern high-tech company specialized in handling palletizing robot & automatic packing machine's R&D, production, sales and after-sale service in China.
Our company is located in famous science and education city-hefei, collected a group of high-level, high-quality professional talents. The company actively promote"production, study and research combined" model of development, hand in hand with China university of technology, Chinese academy of sciences hefei branch, scientific research unit etc. We successfully develop a new generation of palletizing robot and automatic packing line, which is widely used in automatic packing and logistics engineering field, its palletizing ability and other technical indexes are all in the leading domestic level.

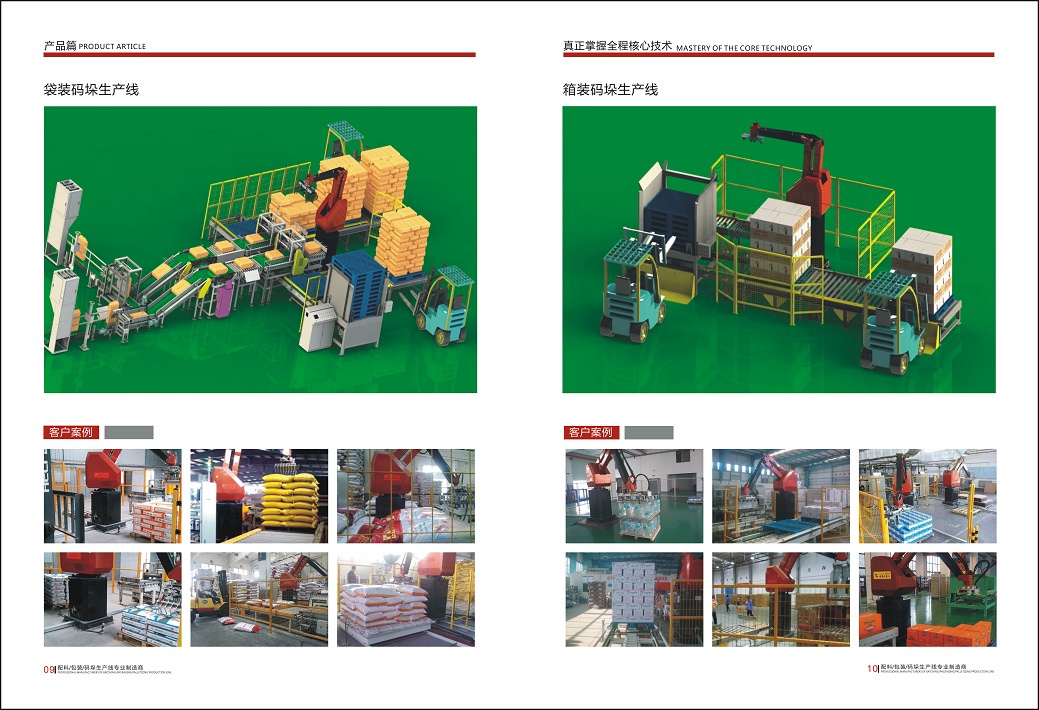

The machine is widely used in the chemical, building materials, food, beverage, beer, and automatic logistics industries. From the material into the machine to the packed material palletized, from the configuration of the robot to grasper design, hefei eagle automation engineering technology Co., Ltd., can provide comprehensive palletizing system and packing equipment manufacturing, at the same time we have perfect after-sale service system, to provide you high quality technical support and after-sales service.
