Product Specifications
| Prod Model: |
GSC1-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Theory: |
Electromagnetic Relay |
| Size: |
Miniature |
Product Description

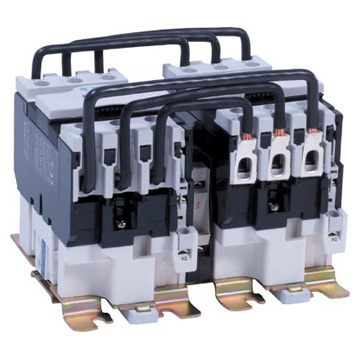

GSC1-4004N-9504N reverse AC contactor is used in frequency 50Hz( or 60Hz ), rated isolation voltage up to 690V, rated working voltage 660V, and rated current up to 95A of three phase four line circle when rated voltage to 380V in category AC-3, through breaking and connecting the to the three-phase main circuit and neutral lines, achieve controlling double powers switching or control reversible operation or reverse control operation motor.
|
type |
GSC1-4004N |
GSC1-5004N |
GSC1-6504N |
GSC1-8004N |
GSC1-9504N |
rated working current le
A(AC-3) |
380 V |
40 |
50 |
65 |
80 |
95 |
|
660 V |
34 |
39 |
42 |
49 |
49 |
|
conventional thermal voltage lthA |
60 |
80 |
80 |
125 |
125 |
rated wotking voltage
UeV |
380,660 |
|
rated insulation voltage Ui V |
690 |
|
AC-3(6le,le) |
electrical life span10 4 |
60 |
50 |
|
operation frenquency Hz |
600 |
|
AC-4(6le,6le) |
electrical life span 10 4 |
10 |
|
operation frenquency Hz |
200 |
|
rated working current le A |
380 V |
18.5 |
24 |
28 |
37 |
44 |
|
660 V |
9 |
12 |
14 |
17 |
21.3 |
|
coil |
rated control voltage Us V |
24,48,110,220,380 |
|
pick-up voltage |
0.85Us1.1 Us |
|
drop-out voltage |
0.2 Us 0.75 Us |
|
machinery life span 10 4 |
1 |
Tianshui 213 Electrical Apparatus Co., Ltd. is one of leading manufactures in Control Devices, Distributing Devices and Compelete Equipments in China. Main products cover AC contactor, DC contactor, thermal overload relay, electronic overload relay, contactor relay, pneumatic time-delay, MCB, MCCB, ACB.
We have 1300 employees, of whom 420 are technicains. We can supply 5 million pieces of high quality low-voltage apparatus devices and 20000 complete sets equipments per year. We are the supplier of Emerson and Tyco Electrionic. Our products export Europe, Russia, Vietnam, India. Our enterprice and products has been approved by ISO9001, ISO14001, OSHAS 18001; IEC, CCC, CE, UL, TUV and RoHS respectively. "Tianshui 213" awarded as China Well-know Trademark and also win a good reputaion from our customers around the world.
