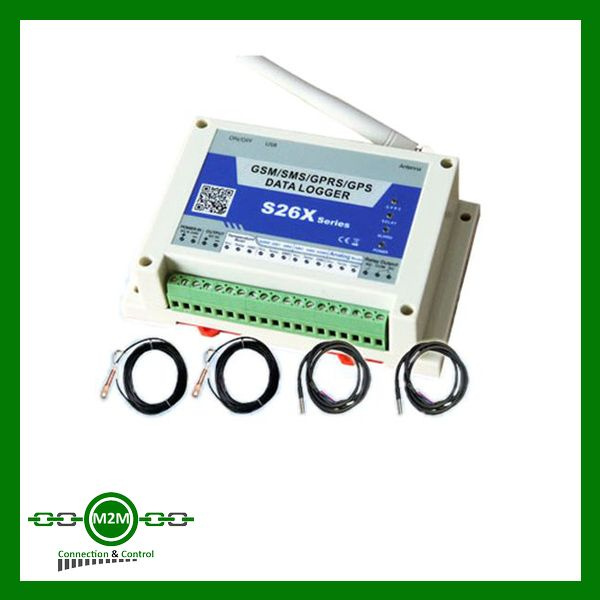

S-260 GSM GPRS Temperature Loogger
The S260 Temperature Logger inbuilt industrial Quad-band GPRS Engine,and GPS module optional. 4 Channel temperature inputs support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.
One digital relay output with NC/NO contacts controlled by alarm event, SMS command or Rejected ller-ID(charge free).
With Internal memory, S260 save historical data half a year for inquiry & download by PC software via USB cable or CMS-02 Remote Monitoring System via GPRS TCP/IP, and tracking the real time GPS location with optional GPS module.
Daily report, schedule upload, event upload via GPRS to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.
S260 used for field monitoring in worldwide, we offer GPRS protocol for clients to build their own monitoring software/applications.
Features:
GSM Quad-Band,distribute worldwide applications available
-55°C to +125°C (-67°F to +257°F) measurement range
SMS command or PC Software programming
User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)
6 numbers for receiving temperature alert and relay control
Relay control programmable when alarm thresholds exceed
Relay control by Caller-ID with free of charge, SMS, GPRS
Work with CMS-02 Remote monitoring software
Record temperature data on internal memory:
Min interval: per 5mins, can save data on unit more than 6 months
Max interval: per 255mins,can save data on unit more than 10 years
Historical data download to PC (MS Excel format) via USB
Historical data query and download remotly by GPRS
Supports 2 Server(Master and Slave) via GPRS
Daily report, schedule upload, event upload programmable
AC/DC Power status monitoring, AC ON/OFF alert by SMS
Rechargeable Backup Battery inside(Approx.8hours standby)
IP67 Environmental protection enclosure(S261)
GPS tracking module optional
Specifications:
GSM Frequency: Quad-band 850/900/1800/1900MHz
Input Channel: 4*DS18B20 temperature input
Output: 1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC
Temperature range: -55~+125°C°(-67°F to +257°F)
Accuracy: 0.5~1°C from -10°C to +85°C
Power Supply : 9~24VDC 2A
Power Consumption: 12V input Max.50mA/Average
SIM Card Supporting: 3V SIM Card
GSM Antenna: 50 ohm SMA Antenna interface
Backup Battery: 3.7V/1200mAH
Working Temperature: -20°C to +60°C
Relative Humidity: 90%(condensation free)
Installation: 35mm DIN Rail (S260)
Connecting Wires: 2.5mm
Exterior Dimensions: 145*90*41mm (S260)
Net Weight: 250g
Packing List:
1) Main unit x1
2) 100~240VAC/12VDC 2A Power adaptor x1
3) DS18B20 temperature triode x2
4) GSM Antenna x1
5) GPS Antenna x1 (*for GPS model optional) x1
6) User Manual & PC Software CD x1
Packing Size: 235 x 225 x 65mm
Gross Weight: 0.75KG
Optional accessories:
GPS Module
DS18B20 Temperature probe with 1/5/10meters wire
DS18B20 Temperature probe with anticorrosion packing
