Product Specifications
| Prod Model: |
ES-2003GSM-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Languages Supported: |
Russian, Spanish, English, Chinese |
| Back Up Battery Working Time: |
>5 Hours |
| Zones: |
4 Wired Zones, 6 Wireless Zones |
| GSM Signal Weak Alert: |
Yes |
| AC Power Cut Reminder: |
Yes |
| SMS Commands: |
Supported |
| Phone Number Supported: |
3 Groups |
| SMS Contect: |
Can Be Changed |
| Two Antennas Version: |
Optional |
| Type: |
Anti-Theft Alarm |
| Signal Transmission: |
Wireless Alarm |
| Working Mode: |
Passive |
| Certification: |
CCC |
| Application: |
Indoor |
| Sensor Type: |
Infrared Alarm System |
| Alarm Volume (',within 1m): |
≥110dB |
| Usage: |
Window |
| Working Principle: |
GSM Network |
| Transmission Mode: |
Wireless + Wired |
| Receive Frequency: |
433/315/868MHz Optional |
Product Description

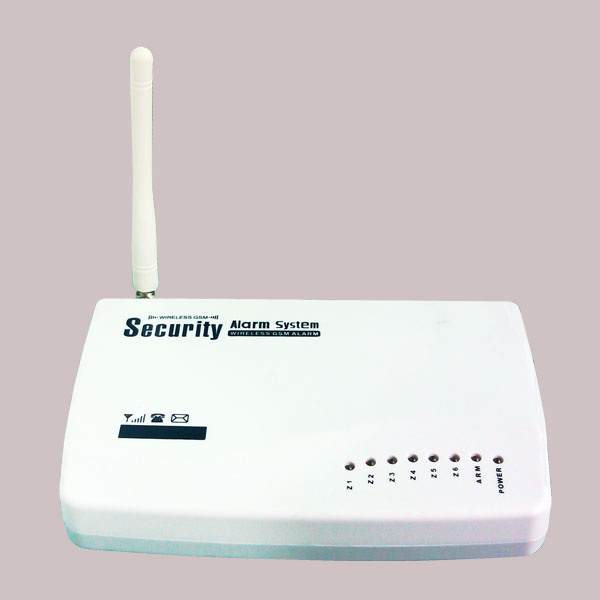

SMS GSM Home Security Alarm with 4 wired 6 wireless zones
Main Features
4 wired and 6 wireless defence zones;
Can preset and store 6 voice phones and 3 message phones;
Remote two-way intercom,Built-in intercom speaker;
Telephone (mobile phone) remote control programming;
SMS remote control preset & arm/disarm the main panel;
SMS alarm content can be changed;
3 groups of timely arm and disarm;
2 groups reply to timely control the home appliances open or close;
Can connect wireless siren(Option)10-second automatic message recording;
Built-in intelligent English message;
Alarm locking memory and information clear for easy checking;
One-key-control function: Out Arm, Home Arm, Remote Arm;
Wireless intelligent learning encoding and comply additional accessories;
Arm, disarm, monitor and intercom by remote calling the alarm unit;
Real-time, delay, 24 hours, bypass defense zones programming function;
Built in NI-HI rechargeable battery is available to provide power supply nearly 5hours automatically after power off;
AC and DC dual use are available for 24-hours-a-day normal guard;
Main unit anti-tamper and low-voltage detecting function
Technical Parameters of Host
------------------------------------------------------------------------------------------------------------------------------------------
Input Voltage: DC9V~12V
Standby Current: <55mA
Alarm Current: <450mA
Wireless Frequency: 315/433.92MHz, 2262/4.7MΩ
GSM Frequency: 900/1800/1900MHz
Backup Battery: NI-HI AAA*6 DC7.4V
Alarm Loudness: 110dB
Standard Package Kit
1. Alarm host (main unit)--1 pc
2. Wireless door/window magnetic contact--1 pc
3. PIR sensor--1pc
4. Romote controllers--2pcs
5. Siren--1pc
6. Power supply--1pc
Panel Buttons introduction
1.Power hole
2.Alarm output end
3.+12V power output or in
4.NO C Relay output
5.A Spare
6.Grounding wire(3-6)
7.SIM card slot
8.Setting button
9.Backup power switch
10.Antenna pedestal
A. defence zone indicator
B. [Arm] lindicator
C. [Power] indicator
Inside View
Packing
-----------------------------------------------------------------------------------------------------------------------------------------------
Fire alarm system, smoke alarm system, burglar alarm system, emergency alarm system, intruder alarm system, home alarm system, intruder alarm system, security system, alarm system, sensors are on sales, etc.
| Input Voltage: |
| DC9V~12V |
| Standby Current: |
| <55mA |
| Alarm Current: |
| <450mA |
| Wireless Frequency: |
| 315/433.92MHz, 2262/4.7MΩ |
| GSM Frequency: |
| 900/1800/1900MHz |
| Backup Battery: |
| NI-HI AAA*6 DC7.4V |
| Alarm Loudness: |
| 110dB |
| u Main Panel | 1pcs |
| u Wireless Infrared Detector | 1pcs |
| u Wireless Magnetic Door Detector | 1pcs |
| u Remote Control | 2pcs |
| u AC/DC Adaptor | 1pcs |
| u Mini Siren | 1pcs |
| u English User Manual | 1pcs |
