Product Specifications
| Prod Model: |
GT-986V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Binding Length: |
420mm |
| Binding Thickness: |
60mm |
| Binding Speed: |
300-400books/Hour |
| Glue Melt Time: |
About 40 Mins |
| Milling Cutter: |
Solar Milling Cutter+Small Milling Cutter |
| Clamp Cover: |
Automatic |
| Clamp Book: |
Automatic |
| Glue Roller: |
3 Glue Rollers |
| G.W.: |
265kgs |
| Shipping Dimension: |
1780*800*1380mm |
| Type: |
Hot Melting Type Binding Machine |
| Thickness: |
50-70mm |
Product Description

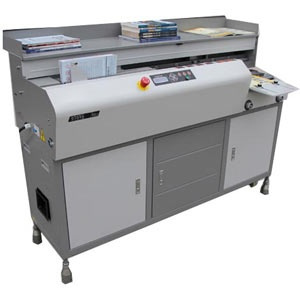

Model GT-986V
Binding Length: 420mm
Binding Thickness: 60mm
Binding Speed: 300-400books/hour
Melting Glue Time: About 40mins.
Milling Cutter: Solar Milling Cutter+Small Milling Cutter
Clamping Cover: Automatic
Clamping Book: Automatic
Glue Rollers: 3 Glue Rollers
Milling Folding Pages: 3 Folding Pages
Display: LCD
Clamping Cover Adjustment: √
Book Locating Flat Adjust: √
Creasing Unit: X
Power Source: 220V(110V)± 10% 50Hz(60Hz) 3100W
Gross Weight: 265kgs
Shipping Dimension: 1780*800*1380mm
Feature:
1. Intelligent control and LCD display;
2. Vertical cover clamping station;
3. Open operation flat;
4. Easy scoring on line (Only 986Z5);
5. Non-glue ends control, avoiding excess glue at either end of book;
6. Three glue rollers, 2for spine gluing, 1 for removal;
7. Convenient worktable double as cover for storage;
8. Powerful dust suction system;
9.3 level of binding speed;
10. Adjustable cover-clamping station for different type of cover, lets you adjusts roundness or squareness of spine;
11. Smoke extractor to remove glue fumes to protect your health;
12. Smart side-gluing.
