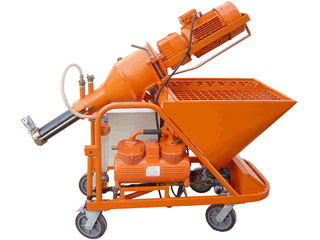

Gypsum Spraying Rendering Machines (DY-RX-30)

Product Specifications

Prod Model:	DY-RX-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	30l/Min
Air Consumption:	250l/Min
Packing:	Standard Export Wooden Case
Main Electric Motor:	3phase, 380V, 5.5 Kw
Type:	Mortar Pump

Product Description

Gypsum spraying Rendering machines
DY-RX-30 motar pump is a continuously working mixing machine, designed for the application of any type pumpable dry ready-mixed mortar based on cement, gypsum and insulating mortar. In the European and other developed countries, this type machine has been universally using with its reliability and stability in performance. The machine consists of portable units, permitting easy and comfortable transport due to their small and handy dimensions and low weights. Thanks to its efficiency, silence and technical perfection, DY-RX-30 is the top-priority machine for dry ready-mixed mortar applications.

Application:
All pumpable dry ready-mixed mortars or materials, such as Cement mortars, Lime plasters, Gy-psum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, fireproof material, etc.

Working Principle:
The dry materials is supplied in sacks and filled into the large hopper. The low height of the DY-RX-30 makes filling considerably easier. The material is then transported by the agitator, out of the hopper into the mixing pipe of the machine. The particular geometry of the agitator means the hopper can be emptied almost 100%. In the mixing area, the amount of water appropriate to the material is supplied. Depending on the mortar used, the amount of water can be separately regulated. The integrated water pump ensures the water pressure is always adequate.

The mixing area is extremely large. This means the material is perfectly mixed and reaches the rotor/stator pump of the machine in an ideal condition. There it is then pumped at pressure through the mortar hose. The nozzle is connected in the end of mortar hose with compressed air, and then the mixed mortar is spraying out evenly. The integrated mini compressor ensures the air pressure and consumption always adequate, as well as remote-control by air valve.

Attention: For detail instruction please follow the operator's manual.

Features:
The integrated machine with mixer, self-suck water pump, mini compressor and rotor/stator pump
The continuously mixing and pumping machine
Small and handy dimension and low weight, quickly and easily transport even in the most confined spaces.
The rotor/stator pump ensures the material is pumped and sprayed out continuously and evenly.
The machine always works with efficiency and silence
With air valve remote-control function
The machine consists of portable units, permitting easy to operate and take maintenance and easy to use in any circumstance.
