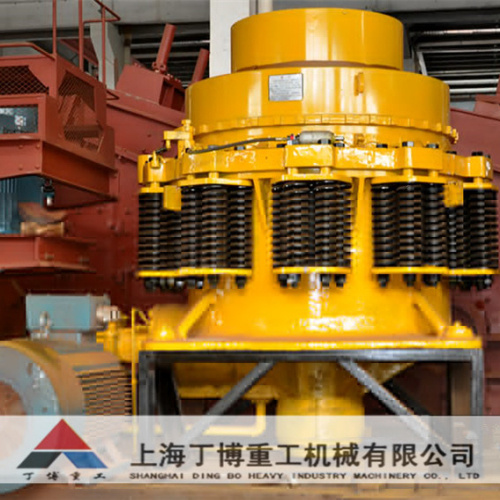

Application of Gypsum Spring Cone Crusher
Spring cone crusher is mainly applied in metallurgical, construction, road building, chemical and phosphatic industry. Cone crushers are suitable for hard and MID-hard rocks and ores. It is designed with final size 2-60mm, used to crusher, Marble, Silica sand, Dolomite, Basalt, Quartz, Feldspar, Limestone, Granite, Slag. The type of crushing chamber depends upon size of feeding and fineness of crushed product.
Detailed Description:
Spring Cone crusher have features of high quality, low cost and big broken ratio. This type of crushers can crush various kinds of ores and rocks of medium or above medium hardness, and cone crusher is of high ratio, high efficiency, large capacity, low cost, easy adjustment, and use economically, etc.
The standard type (PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.
Features of our Gypsum Micro Powder Grinding Machine
1. High quality and productivity.
2. Less machine stop time.
3. Easy maintenance and low cost.
4. Unique crushing ability in primary, secondary and tertiary crushing.
From it's figuration, we know that it must be complicated to install it. But you don't need to worry about it, because we will offer a high quality after-sales service, as following,
Tracking service for one year, and lifetime warranty
Maintenance and replacement service
Reminding for the service life of the wearing parts
Installation guide
Whole process and guidance
| Model | Moving Cone Diameter
(mm) | Feeding
Opening Size
(mm) | Discharging Opening Size
(mm) | Max Feeding Size
(mm) | Capacity
(t/h) | Eccentric
Rotation
Speed
(r/min) | Electric Motor
Power
(kw) | Weight
(t) | Overall
Dimension
(mm) |
| PYB-600 |
600 | 75 | 12-25 | 65 | 12-25 |
356 | 30 | 5 | 2800× 1300× 1700 |
| PYD-600 | 40 | 2-13 | 35 | 5-23 | 5.5 |
| PYB-900 |
900 | 135 | 15-50 | 115 | 50-90 | 333 | 55 | 11.2 | 3050× 1640× 2350 |
| PYZ-900 | 70 | 5-20 | 60 | 20-65 | 11.2 |
| PYD-900 | 50 | 3-13 | 50 | 15-50 | 11.3 |
| PYB-1200 |
1200 | 170 | 20-50 | 145 | 110-168 | 300 | 110 | 24.7 | 4152× 2300× 2980
|
| PYZ-1200 | 115 | 8-25 | 100 | 42-135 | 25 |
| PYD-1200 | 60 | 3-15 | 50 | 18-105 | 25.6 |
| PYB-1750 |
1750 | 250 | 25-50 | 215 | 280-480 | 245 | 160 | 50.5 | 6020× 2948× 4192 |
| PYZ-1750 | 215 | 10-30 | 185 | 115-320 | 51 |
| PYD-1750 | 100 | 5-15 | 85 | 75-230 | 50.5 |
| PYB-2200 |
2200 | 350 | 30-60 | 300 | 590-1000 | 220 | 260-280 | 84 | 7705× 3432× 4842 |
| PYZ-2200 | 275 | 10-30 | 230 | 200-580 | 85 |
| PYD-2200 | 130 | 5-15 | 100 | 120-370 | 85 |
