1. Structure description

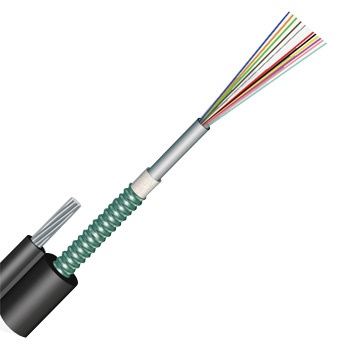

Central tube type, gelly filled, Polyethylene(PE) sheath, Figure-8 self-supporting type Outer door optical fiber cable for telecommunication.
Technical characteristics:
Selected high quality optical fiber ensure the optical fiber cable have excellent transmission properties
The unique fiber excess length control method provides the cable with excellent mechanical and environmental properties
Very strict material and manufacturing control guarantees the cable can work stably for more than 30 years.
Total cross-section water-resistant structure makes cable have excellent properties of moisture resistance
Special jelly filled in the loose tube provides the fibers with critical protection
Figure-8 self-supporting structure, high tension strength, facilitate in aerial, low installation costs
Fiber B1.3(G652D)
Tube diameter (mm)
3.0mm
Without Strength member (steel wire)
Messenger wire1.6mm
Outer Sheath thickness (nominal*)(mm)1.2mm
Cable diameter (nominal**)(mm)5.4
Max. Allowable pulling force(N)Installation: 3000/operation1000
Crush resistance(N/100mm)1000/600
Min bend radius(mm)Long-term 12.5 OD
Short-term 25 OD
Operating temperature range-40oC to +60oC
Storage / Transport temperature range-50oC to +70oC
Installation temperature range-20oC to +50oC
|
Specification |
|
|
Part
Number |
Fiber
Count |
Outside
Diameter
(mm) |
Stranded
Units |
Cable
Weight
(kg/km) |
Tensile Load |
Crush Load |
Bend Radius |
S
(N) |
L
(N) |
S
(N) |
L
(N) |
S
(N) |
L
(N) |
|
GYXTC8Y0809P-BK |
8 |
7.0/13.5 |
7*1.0mm |
115 |
3000 |
1000 |
1000 |
300 |
20D |
10D |
|
GYXTC8Y1209P-BK |
12 |
7.0/13.5 |
7*1.0mm |
115 |
3000 |
1000 |
1000 |
300 |
20D |
10D |
|
GYXTC8Y2409P-BK |
24 |
7.0/13.5 |
7*1.0mm |
115 |
3000 |
1000 |
1000 |
300 |
20D |
10D |
|
Note: GYXTC8Y denotes Figure 8 Central loose tube aerial optical cable; 09 denotes fiber type (09: SM) |
|
|
|
P denotes PE sheath; BK denotes black outer sheath; |
|
|
|
|
