H. 264 Onvif P2P CMS software Free Android iPhone APP digital webcam micro IP camera
Key Features:

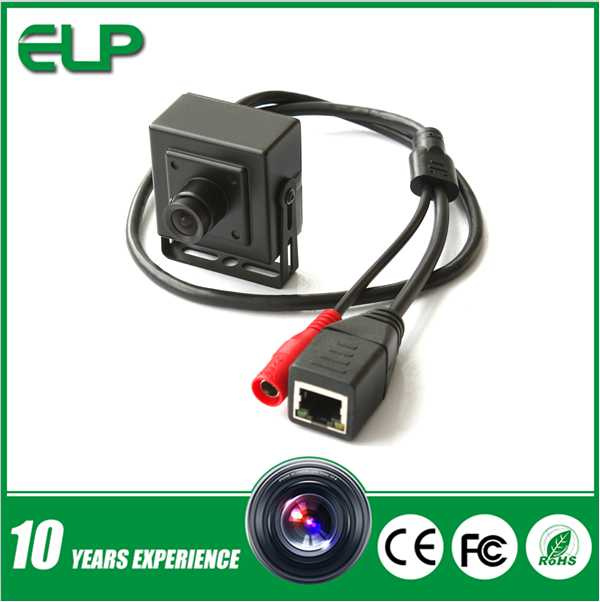

*1.0 Megapixel mini size IP camera
*Main stream always, resolution: 1280X720
*P2P remote surveillance
*electronical zoom funcion
*Support ONVIF
*3.6mm/6mm /8mm/12mm lens
*poe optional
*audio optional
Parameters |
1.0megapixel mini size IP camara |
Camera |
Sensor |
1.0Megapixel professional-type illumination CMOS sensor HI3518C+OV9712 |
Min illumination |
Color:0.6Lux (F1.2, AGC ON) |
Black/white: 0.08Lux (F1.2, AGC ON) |
shutter |
1/50(1/60)s to 1/100, 000s |
lens |
HD professional lens 3.6mm (6mm,8mm,12mm optional) |
Compression |
Video compression |
H. 264 High Profile, support dual stream, AVI format; support 0.1M~6Mpbs bit rate adjustable; support 1~30fps adjustable. |
Video bit rate |
100Kbps~6Mbps |
Image |
Resolution |
Main stream: 1280X720 |
Image setting |
Saturation, brightness, contrast can be adjusted via client side or IE browser |
Network |
Storage |
Network |
Protocol |
1 * RJ45, 10/100M; Support TCP/IP HTTP/RTSP/FTP/PPPOE/DHCP/DNS/DDNS/NTP/UPnP |
Basic |
Support WEB remote configuration, OSD, alarm input active to record, snapshot |
CMS, mobile(iPhone/Blackberry/Android/Symbian/windows), MYEYE(multiple devices management system), SDK |
ONVIF Support |
Interface |
Communicating |
1pcs RJ45 10M/100M self adaptive Ethernet interface |
Video output |
Support CVBS video output and overlying DDNS, user name, password and other info. |
General |
Working condition |
-50~60 degree. humidity less than 90%(non-condensing) |
Power supply |
DC 12V 2A |
