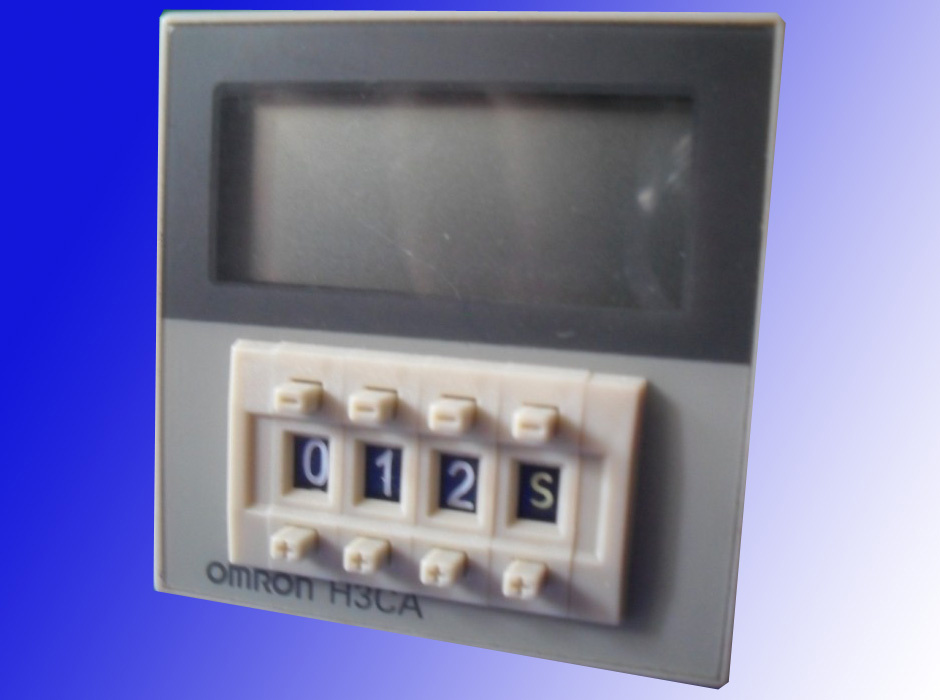

H3CA Time Relay (digital time relay, signal relay)
APPLICATION:
1. H3CA Time Relay can use in the microcomputer, controlled equipment and electrical device. Our relay pass the China Compulsory Certification which is the China Quality Certification Center.
SPECIFICATION:
|
Classification |
Mulit Range Timer |
|
Model |
H3CA-A |
H3CA-8 |
|
Dimensions(mm) |
48H× 4 8W× 81.6D |
|
Mounting surface(-N) |
PF113A(E) |
PF113A(E) P2CF08 PS-08 |
|
& Socket flush(-Y) |
US-11 |
US-11 US-08 P3G-08 |
|
Full Timing Range |
0.1SEC~999HRS |
0.5SEC~100HRS |
|
Rated Voltage |
DC( V) : 2 4, 48 |
|
AC( V) : 24 , 50 , 1 1 0 , 220 |
|
5 0 / 6 0 Hz |
|
Indicator Operating |
LCD |
|
O/P |
model |
|
|
Contact |
time limit 1c |
5 A |
|
|
|
time limit 2c |
|
5 A |
|
|
instantenous 1c |
5 A |
|
|
Accuracy |
repea terror |
± 2 % max |
± 2 % max |
|
setting error |
± 5 % max |
± 5 % max |
|
voltage error |
± 5 % max |
± 5 % max |
|
temp. error |
± 2 % max |
± 2 % max |
|
Reset Time |
0.5 sec max |
0.5 sec max |
|
Consumed Power |
100~240VAC: 10VA 12VDC,
24~240VDC: 1.5W |
100~240VAC: 10VA 12VDC,
24~240VDC: 1.5W |
|
Ambient Temperature |
-10~+55 |
-10~+55 |
|
Ambient Huminity |
35~85%RH |
35~85%RH |
|
We are a manufacturer located in City of Elec. Equipments----Liushi. We mainly supply temperature controller, counter, timer, solid state relay, thermoregulator, Speed controller, digital display meter, panel meter, hour meter for kinds of electric appliance
The most advantage of our products is fine quanlity and cheap, competitive price,
We have many indian clients, who are familiar with Chinese market
It supports that we do have the induiry superiority
We hope We can make a good friends and welcome to China and to be a guest when you have time, which reach Japanese quality standard, relatively reasonable price, price is relative cheap in same industry. We hope you could corporate with us.
