Price: | Negotiable/Piece |
---|---|
Trade Terms: | FOB,CIF,EXW |
Min Order: | 1/Set |
Pay Type: | T/T,Paypal,Western Union |
Prod Model: | H700p-2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Type: | Wireless 3G Router |
Port: | RJ45, Serial RS232 RS485 |
Antenna: | External Replaceable |
Case Material: | Metal |
SIM Card Slot: | Yes |
Wireless Type: | Cellular Mobile |
Type: | Wireless |
Network Site: | Border Router |
Firewall: | Firewall |
Ports: | ≤4 |
Port Structure: | Modular |
Performance: | Non Line Speed Router |
Architecture: | Single Bus Symmetric Multi CPU |
Application: | Industrial |
Transfer Rate: | Cellular 21Mbps |
Network: | 3G WCDMA |

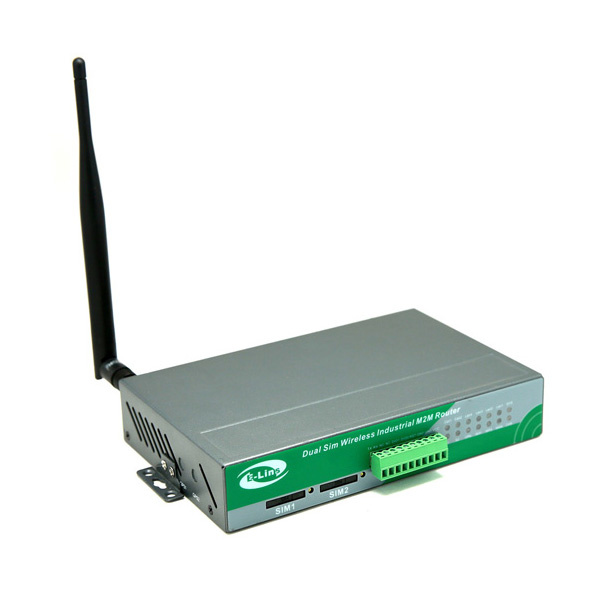

H700 Ethernet Dual SIM HSPA+ Industrial 3G Router For Wireless M2M
H700 router key points:
Dual Sim, One Radio Module;
Cellular Mobile 2G / 3G / HSPA+;
1 WAN RJ45 + 4 LAN RJ45 Ethernet;
VPN, DDNS, Dynamic Route, NAT, NAPT, DMZ;
Remote Web / Telnet CLI SSH;
SMS monitor and control;
SMS sending and receiving;
Keep alive and schedule;
Serial RS232 or RS485;
GPS option;
Digital I/O ports;
Internal battery backup;
Description
1. H700p router is a 3G Router with dual sim slot. With 3 WAN (two Cellular one RJ45 Ethernet) and 4 LAN RJ45 ports, the H700p HSPA+ Cellular 3G Router is designed for establish a 3G cellular and Wi-Fi wireless network and share a cellular broadband connection, which can fallback to HSUPA/HSDPA/2G networks.
2. Hot Spot of H700p 3G Router
1) One line WAN and two Cellular WAN for backup failover use. Built-in 3G HSPA+ industrial cellular modules, insert SIM/UIM card to work directly;
2) Built-in two SIM/UIM card slot;
3) 3G HSPA+/HSDPA/HSUPA/2G, fixed line broadband connections and WiFi Client failover;
4) Easy to management with GUI Web, Telnet SSH CLI, SNMP, RMS (Remote Management System), SMS
5) 4 LAN RJ45 port, 1 WAN RJ45 port, WiFi, Serial and I/O ports;
6) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)
7) Built-in watch dog, keep alive, etc.
8) Built-in battery for external power failover (option)
H700p Industrial 3G Router Specifications
Wireless | ||
Compatible Mobile Networks | 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+); 2G GSM EDGE/GPRS | |
Cellular Frequency | UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz; | |
Bandwidth | HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
Notes: the bandwidth is peak value. Real value depends on carrier network support. | |
Network and Band Lock Feature (Option) | Default is unlocked, can use this feature to lock | |
Main Features and Performance | ||
USB Host | No, can ODM | |
SMS/Voice | SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option | |
GPS (Option) | GPS feature | |
DTU (Option) | With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option). Details: Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps; Serial Parity: none, even, odd; Serial Databits: 7, 8; Serial stopbits: 1, 2; Serial flow control: none, hardware, software; Mode: Server (up to 4 server centre, can OEM to be more), Client; Protocol: TCP, UDP ; Heart Beat : Yes; | |
VPN | PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server) | |
OpenWRT (Option) | Optional | |
VRRP (Option) | Optional | |
Route | Static Route; Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip); | |
SNMP | Support V1, V2. V3 | |
VLAN | Support multi-LAN IP address, support two IP address | |
Wi-Fi | Optional, 802.11b/g/n; 150Mbps default. 300Mbps optional. Can be used as AP and client; Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users | |
Fail Over Redundancy (network Backup feature) | Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy;
Cold Backup is default, Hot Backup is option; Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup. | |
POE | POE for LAN/WAN RJ45 (use with POE adapter) | |
Firmware update | support firmware update locally or remotely (LAN, WiFi and OTA WAN) | |
Syslog | local and remote | |
DDNS | Yes | |
DHCP Server | Yes | |
Internal Battery | Optional (8000mAH, 4000mAH *2) | |
Others | DNS proxy; Optimized EMC design; Real-time clock (NTP, support update with defined hours); WAN/LAN/Memory statistics; Local/remote profiles backup and retrieve; | |
Management System | Option | |
Protocol |
| |
Protocol support | TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc. | |
Security |
| |
Firewall | support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 - PSK support WPA1/2 - 802.1x support EAP - TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ | |
Advanced Firewall Features | Stateful Packet Inspection (SPI) VPN Pass-through | |
Media Access Control | CSMA/CA with ACK | |
Certifications | REDIUS Client | |
Interface |
| |
LAN/WAN | 4X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) (WAN RJ45 can convert into LAN RJ45 to get 2 LAN RJ45); WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual) | |
Antenna | 1-5 antenna (50Ω SMA female interface, detachable): Wi-Fi*2 Cellular*1 or 2 GPS*1 Cellular support MIMO(Diversity Receiving) option; WiFi support MIMO (Diversity Receiving) option; | |
Led | SYS VPN WiFi Cell1 Cell2 Cell Signal1 Cell Signal2 LAN (10/100M) 1, 2, 3, 4 WAN CHR (Internal battery charging) | |
Button | Reset | |
Console | 1 console port (also can be used as M2M port) | |
Serial port |
| |
IO Port (option) | 2 | |
Management | Easy to use and management; Web/Telnet/SSH/CLI, support remote management SMS; SNMP; RMS (Remote Management System) | |
At command | Supported | |
UIM/SIM Card Slot | Support 1.8V/3V UIM/SIM cards, one sim card slot | |
DC Jack | Two types of input jack for DC 2.5mm DC jack * 1 Terminal Block * 1 | |
Power |
| |
Power supply | DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option | |
Current | Idle: about 140mA@12VDC Communication: about 300mA@12VDC | |
Software |
| |
Device Management | WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) | |
Minimum System Requirements | Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card | |
Physical |
| |
Operating Temperature | Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C | |
Humidity | 95% Maximum (Non-condensing) | |
Dimensions | PCBA: 168mm x 111mm x 16mm With case: 180mm x 114mm x 32mm | |
Weight | 705g (not including the antenna) | |
Color | Metal Gray-Black, OEM is available | |
Others |
| |
Warranty | 1 Year default. Option extends to 5 years maximum. |
Applications

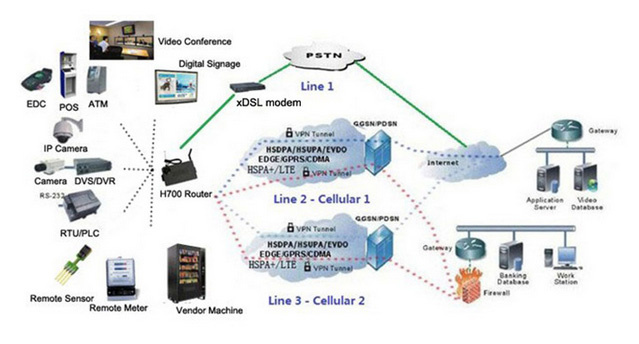

Typical Application Diagram Of H700 3G Router
