Product Specifications
| Prod Model: |
LV2037 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Features:

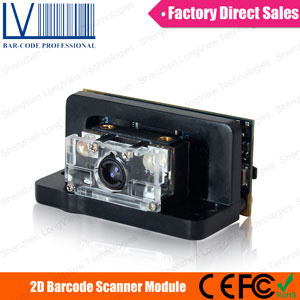

2D barcode scan engines, powered by advanced imaging technology computerized image recognition system
Can read barcodes printed on paper/plastic or displayed on mobile phones with nice motion tolerance
Supports both mainstream 1D and standard 2D barcode symbologies (PDF417, QR code, data matrix, composite code) as well as Chinese sensible code and GS1-data bar TM (RSS) (limited/stacked/expanded versions)
Specifications:
Interface: TTL232
Image sensor: 752*480p CMOS
Scan angle roll: 360°
Pitch range: ± 50°
Skew range: ± 50°
Illumination: Red LED 620 ± 10nm
Voltages: 3.3-5.5V DC
Current working: 330mA
Idle: 60mA
Low power: 1.2mA
Operating temperature: -20 to 50° C
Storage temperature: -40 to 80° C
Weight: Combined
Type: 11.8g
Discrete type: 8.3g
Dimensions: (L) 40.5*(W)25*(H) 20mm
