Product Specifications
| Prod Model: |
OBM-757 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Data Storage: |
>100,000 PCS |
| Detachable Battery: |
Rdechargeable 2000mA Lithiun-Ion Battery |
| Charging Hours: |
8 Hours |
| Working Hours: |
Continuous 10 Hours |
| Standby Time: |
15 Days |
| Scan Pattern: |
Single Line |
| Scan Rate: |
45±2 /Sec |
| Scan Precision: |
4mil |
| Operating Mode: |
Continuous / Itemized Scanning |
| Dimensions: |
160mm×68mm×29mm |
| Type: |
Handheld Computer |
| CPU Type: |
ARM |
| Classification: |
Bar-code Scanner |
| Applications: |
Handheld Computer Equipment |
| Memory Capacity: |
16MB |
| OS: |
Obm |
| Screen Size: |
2.8" |
Product Description

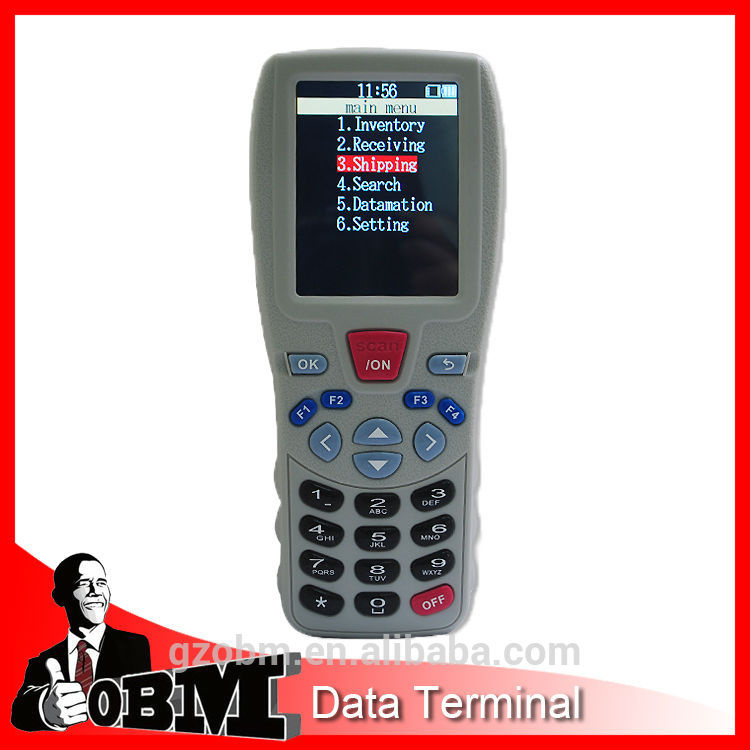

Handheld POS Terminal Data collection(OBM-757)
Features:
MUTI-FUNCTIONAL
Covers the full circulation of commodity-receiving, shipping, cycle count, replenishment and defect report
RECONIZABLE
Supports download and of item file-barcode scanned mathes to the item automatically and displays on
Screen right away
SIMPLE
2.8" color display and graphical menu makes it easr to understand
EFFICIENT
Report is automatically generated right after inventory count, 90% saving on time, manpower and administrative overhead
SAFE
Real-time storage and bath transmission
Enduring
2800mA POLYMER-Lithium-ion battery ensures long working hours
About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry.
Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode
Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID
Reader.
WHY CHOOSE US?
1) Factory Direct Selling: Ten years Solution Provider & Equipment Manufacturer(Mature Team).
2) Procudcts Function Innovated Yearly.
3) 1D/2D(QR Code)/RFID Optional.
4) Professional Research & Development Team &After-sale Technical Service.
5) Fast Delivery.
|
Light source |
650nm laser |
|
CPU |
|
|
Frequency |
ISM band , 433MHz
|
|
Modulation |
GFSK |
Rate of Transmission |
200Kbps |
|
Output Power |
20dBm (max) |
|
Transmission |
Coverage 300M visibility range ( Max. ) |
|
Antenna |
Integrated PCB |
|
Memory |
16M |
|
Keypad |
23 |
|
Indicator |
beeper , LCD screen |
|
Bit error rate (BER) |
1/1 million |
|
Safety performance |
Meet the Grade II National Criteria for Laser Safety |
|
Scanning method |
automatic or manual |
|
Supported interfaces |
RS232, PC2 keyboard, USB |
|
Barcode types |
EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, Chinese postcode etc. |
|
Use type |
Hand-held or bracket-held installation |
|
Resolution (pcs0.9) |
0.10mm(4mil) |
|
Depth of field |
10-420mm (pos09 density 0.25) |
|
decode rate |
100 times/second |
|
precision |
0.10-0.825mm |
|
scan width |
60mm at 30mm; 98mm at 100mm |
|
Reading angle of elevation |
60 degree |
|
Power voltage |
5V |
|
Working current |
57mA |
|
Static current |
36mA |
|
Light intensity |
Daylight, 4000Lux max |
|
Operating temperature |
-20° C-45° C |
|
Storage temperature |
-20° C-45° C |
|
Operating humidity |
5%-85% |
|
Storage humidity |
5%-85% |
|
color size and weight |
23.5x17.5x7.5cm , 0.56KG\box |
|
carton size and Qty |
60x40x50cm, 32pcs/carton |
