Product Specifications

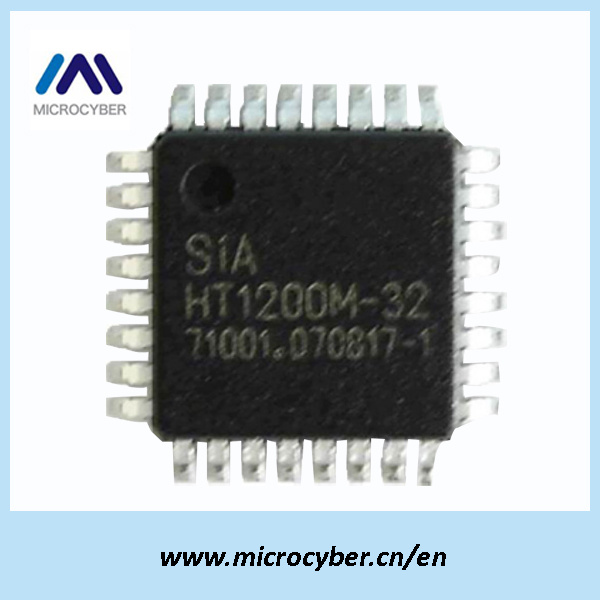

| Prod Model: |
HT1200M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Brief Introduction
As the modulation and demodulation controller with low power consumption, HT1200M is used for developing HART products and good at performance, cost and quality etc.
HT1200M is compatible with HT20C15 and SYM20C15.
2. Main Characteristic
Single chip
FSK modem (Semi-duplex 1200b/s)
Integrates circuit of receiving band-pass filter with circuit of sending signal waveform and reshaping
External connection with 460.8kHz crystal or ceramic filter
Internal clock vibrator or external clock input
Operation temperature: -40 centigrade~85 centigrade
Voltage: 3.3V~5.0V
Operation current: <200uA
LQFP32 and PLCC28 package
Microcyber Inc. is established by Chinese Academy of Sciences. Based on fieldbus technique, the company engages in R&D, manufacturing, sales and engineering service of advanced industrial control systems, equipments, instruments and chips for industrial process control solutions.
As one of leading supplier and vender of fieldbus products, Microcyber mainly provides communication stack, communication controller chip (FF, PROFIBUS PA and HART), customized communication board (FF, PROFIBUS PA and HART), control configuration software, control system -- NCS4000 System, F/I converter, I/F converter, pressure transmitter with capacitance sensor or diffused silicon sensor (FF, PROFIBUS PA and HART) and temperature transmitter (FF, PROFIBUS PA and HART).
The company has a lot of experience in providing fieldbus products. Pressure transmitter, I/F converter and F/I converter have been registered in Fieldbus Foundation. Microcyber provides FF & PROFIBUS PA communication boards which are available in same hardware, and software outsourcing for supplier or manufacturer. Microcyber has supplied the communication boards to some manufacturers, such as EIM Controls Inc. And Dangdong Top Instruments Co., Ltd which are have registered in Fieldbus Foundation.
Also Microcyber is member of HART and Profibus foundation.
Microcyber Inc. is looking forward to the long-term smooth and close cooperation with you.
